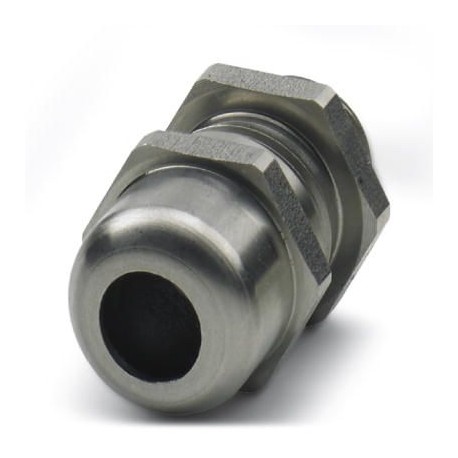

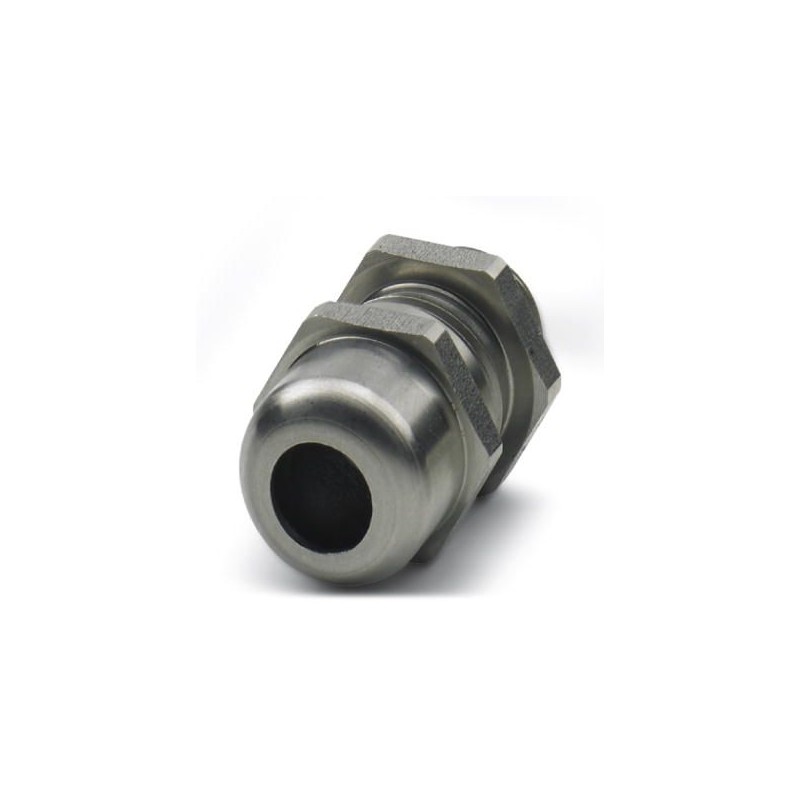

G-INS-M20-M68N-SNES-S 1424543 PHOENIX CONTACT Cable gland
G-INS-M20-M68N-SNES-S
1424543
PHOENIX_CONTACT
Cable gland
Cable gland, screwed connection material: Stainless steel 1.4305, outer diameter of the cable 6 mm ... 12 mm, shielding: no, connection thread: M20 x 1.5, color: silver, with O-ring
Cable and wire entry systems > Cable gland
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1424543 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 700 (C-2-2017) |
| GTIN | 4055626374482 |
| Weight per Piece (excluding packing) | 29.400 g |
| Custom tariff number | 73269098 |
| Country of origin | TR (Turkey) |
Dimensions
| Length | 33 mm |
|---|---|
| Wrench size, union nut | 22 mm |
| Wrench size, support | 22 mm |
| Hexagon angular dimension | 24.5 mm |
| Length of the connecting thread | 8 mm |
| Feed-through hole diameter | 20.1 mm ... 20.3 mm |
| External cable diameter | 6 mm ... 12 mm |
| 10 mm ... 12 mm (for UL 514 B) |
Ambient conditions
| Degree of protection | IP68 (5 bar, 30 min.) |
|---|---|
| IP66 | |
| IP69 | |
| Ambient temperature (operation) | -40 °C ... 100 °C (static) |
General
| No. of conductors | 1 |
|---|---|
| Cable gland material | Stainless steel 1.4305 |
| Material, insert | Polyamide 6 |
| Cable seal material | Neoprene |
| Sealing material | Perbunan (O-ring) |
| Shielded | no |
| Thread type connection side | M20 x 1.5 |
| Thread type on connection side | M20 |
| Torque | 8 Nm (Union nut) |
| 8 Nm (Support sleeve) | |
| 6 Nm (for UL514 B: union nut) | |
| Color | silver |
| Impact category | 2 |
| Execution of the strain relief | A |
| Assembly instructions | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Manufacturer | BIMED |
| Manufacturer Designation | BMSC-02 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
