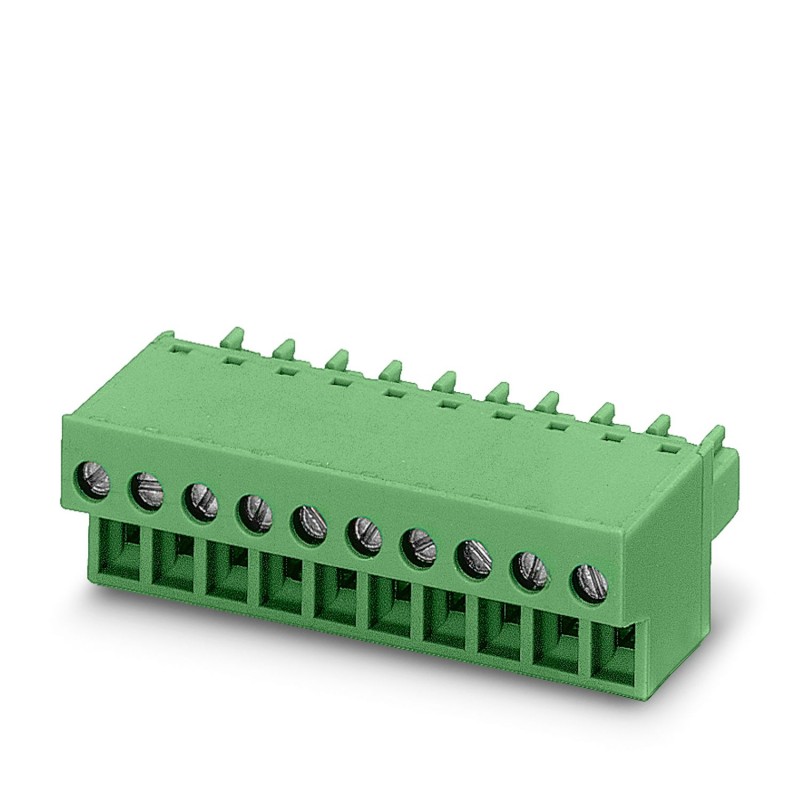

FRONT-MC 1,5/20-ST-3,81 BK 1800213 PHOENIX CONTACT Connector for printed circuit board, nominal current: 8 A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

FRONT-MC 1,5/20-ST-3,81 BK 1800213 PHOENIX CONTACT Connector for printed circuit board, nominal current: 8 A..

FRONT-MC 1,5/20-ST-3,81 BK

1800213

PHOENIX_CONTACT

50

Product on demand only, returns will not be accepted.

Connector for printed circuit board, nominal current: 8 A, number of poles: 20, pitch: 3,81 mm, type of connection: Connection by screw-on front, color: black, surface contacts: Tin

Connector for printed circuit board, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of potentials: 20, number of rows: 1, number of poles: 20, number of connections: 20, family of articles: FRONT-MC 1.5/.. -ST, pitch: 3.81 mm, connection type: Front screw connection, screw clamping form: L Longitudinal slot, conductor/printed circuit board connection direction: 0 °, plug-in system: COMBICON MC 1.5, lock: without, fixing type: without, packaging type: boxed

PCB connector, nominal cross-section: 1.5 mm2, colour: black, rated current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Sn, contact connection type: Female, number of potentials: 20, number of rows: 1, number of poles: 20, number of connections: 20, product series: FRONT-MC 1.5/.. -ST, pitch: 3.81 mm, connection type: Front screw connection, screw attachment form: L Longitudinal slot, conductor/board connection direction: 0 °, plug system: COMBICON MC 1.5, locking: none, fastening type: none, packaging type: packed in carton

More details


Connectors > Cable connector

PCB Connectors (PCC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $1,267.08
Unit price: $25.34
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Product TypePrinted circuit board connector
Product FamilyFRONT-MC 1.5/.. -ST
Product LineCOMBICON Connectors S
Number of poles20
Step3.81 mm
Number of connections20
Number of rows1
Number of potentials20
Data maintenance status
Article review01
Rated Current IN8 A
Rated voltage UN160 V
Mass Resistivity1.6 mΩ
Sizing voltage (III/3)160 V
Sizing impulse voltage (III/3)2.5 kV
Sizing voltage (III/2)160 V
Sizing Impulse Voltage (III/2)2.5 kV
Sizing voltage (II/2)320 V
Sizing Impulse Voltage (II/2)2.5 kV
Connection technology
typeStandard
Connector systemCOMBICON MC 1.5
Nominal cross-section1.5 mm²
Contact Connection Typefemale
Blockage
Clamping Typeabsent
Fixing flangeabsent
Conductor connection
LinkFront screw connection
Conductor/board connection direction0 °
Rigid conductor cross-section0.14 mm² ... 1.5 mm²
Flexible conductor cross-section0.14 mm² ... 1.5 mm²
Conductor cross-section AWG28 ... 16
Flexible conductor cross-section with cable lug without plastic collar0.25 mm² ... 1.5 mm²
Flexible conductor cross-section with mounted lug and plastic collar0.25 mm² ... 0.5 mm²
2 conductors of identical cross-section, rigid0.14 mm² ... 0.5 mm²
2 conductors of identical flexible cross-section0.14 mm² ... 0.75 mm²
2 conductors of the same flexible cross-section with ferrule without plastic collar0.25 mm² ... 0.34 mm²
2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar0.5 mm² ... 0.5 mm²
Buffer Gauge a x b / diameter2.4 mm x 1.5 mm / 1.6 mm
Length of the section to be stripped9 mm
Appliance type screw headLongitudinal slit (L)
Tightening torque0.22 Nm ... 0.25 Nm
Indications for ferrules without isolation collar
cable lug without insulating collar, in accordance with DIN 46228-1Cross-section: 0.25 mm²; Length: 7 mm 9 mm
Cross-section: 0.34 mm²; Length: 7 mm 9 mm
Cross-section: 0.5 mm²; Length: 8 mm ... 9 mm
Cross-section: 0.75 mm²; Length: 8 mm ... 9 mm
Cross-section: 1 mm²; Length: 8 mm ... 9 mm
Cross-section: 1.5 mm²; Length: 9 mm
Indications for ferrules with isolation collar
cable lug with insulating collar, in accordance with DIN 46228-4Cross-section: 0.25 mm²; Length: 8 mm ... 9 mm
Cross-section: 0.34 mm²; Length: 8 mm ... 9 mm
Cross-section: 0.5 mm²; Length: 8 mm ... 9 mm
Material information - contacts
noteComplies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu Alloy
Surface FinishHot-dip galvanizing
Metal Surface, Connection Point (Surface Layer)Tin (4 - 8 μm Sn)
Metal surface contact zone (surface layer)Tin (4 - 8 μm Sn)
Material information - case
Color (Case)Black (9005)
Insulation materialPA
Insulation Material GroupThe
CTI according to IEC 60112600
Combustibility class according to UL 94V0
Flammability index of GWFI filament according to EN 60695-2-12850
GWIT filament ignition temperature according to EN 60695-2-13775
Brinell hardness test temperature according to EN 60695-10-2125 °C
Dimensioned Drawing
Step3.81 mm
Width [w]76.99 mm
Height [h]12.3 mm
Length [l]21.7 mm
Conductor Integrity and Stability Test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultTest passed
Tensile test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor cross-section/conductor type/tensile force nominal value/actual value0.14 mm² / rigid / > 10 N
0.14 mm² / flexible / > 10 N
1.5 mm² / rigid / > 40 N
1.5 mm² / flexible / > 40 N
Insertion/tensile force
Test SpecificationDIN EN 60512-13-2:2006-11
ResultTest passed
Number of cycles25
Insertion force per pole approx.7 N
Tensile force per pole approx.5 N
Torque test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Resistance of lettering
Test SpecificationDIN EN 60068-2-70:1996-07
ResultTest passed
Polarization and encoding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultTest passed
Visual inspection
Test SpecificationDIN EN 60512-1-1:2003-01
ResultTest passed
Dimensional control
Test SpecificationDIN EN 60512-1-2:2003-01
ResultTest passed
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Sweep Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axle2.5 h
Test DirectionsX, Y, and Z axis
Electrical life control
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Vertical impulse tension above sea level2.95 kV
Mass Resistivity R11.6 mΩ
Mass Resistivity R21.7 mΩ
Manoeuvring cycles25
Insulation Resistance Between Contiguous Poles> 5 MΩ
Climate control
Test SpecificationDIN EN ISO 6988:1997-03
Stress due to corrosion0.2 dm3KNOW2on 300 dm3/40 °C/1 cycle
Stress due to the effect of heat100 °C/168 h
Fixed AC voltage1.39 kV
Environmental conditions
Ambient temperature (operating)-40 °C ... 100 °C (depending on derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (transport and storage)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Thermal Test Control Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested20
Insulation Resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Between Contiguous Poles> 5 MΩ
Creepage and Creepage Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulation Material GroupThe
Resistance to surface currents (DIN EN 60112 (VDE 0303-11))CTI 600
Rated insulation voltage (III/3)160 V
Rated impulse voltage (III/3)2.5 kV
Minimum clearance value - inhomogeneous range (III/3)1.5 mm
Minimum creepage value (III/3)2 mm
Rated Isolation Voltage (III/2)160 V
Rated impulse voltage (III/2)2.5 kV
Minimum creepage value - inhomogeneous range (III/2)1.5 mm
Minimum creepage value (III/2)1.5 mm
Rated Isolation Voltage (II/2)320 V
Rated Impulse Voltage (II/2)2.5 kV
Minimum creepage value - inhomogeneous range (II/2)1.5 mm
Minimum creepage value (II/2)1.6 mm
PackagingPacked in carton

ETIM for 1800213 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 20
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.81 mm
Modular spacing connections (EF006827) 3.81 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Type of electric connection (EF003961) Screw connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 27 Mbytes
