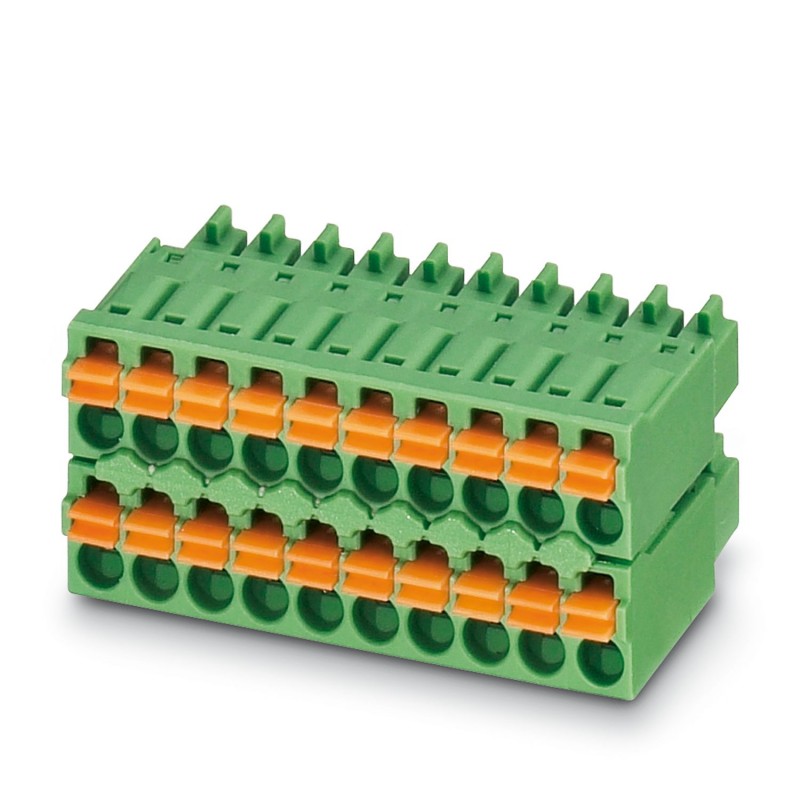

FMCD 1,5/10-ST-3,5LUBBD1-10SO 1811051 PHOENIX CONTACT PCB connector, nominal current: 8 A, rated voltage (II..
FMCD 1,5/10-ST-3,5LUBBD1-10SO
1811051
PHOENIX_CONTACT
50
PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.5 mm, connection method: Push-in spring connection, color: green, contact surface: Tin
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | One million eight hundred eleven thousand fifty one |
|---|---|
| Packing unit | 50 pcs |
| Key selling | AAAEAF - |
| Minimum order quantity | 50 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million seven hundred eight thousand four hundred twenty five |
| Unit weight (excluding packaging) | 11,094 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | DE (Germany) |
Properties of the article
| Abbreviation | Plug-in connector for plate circ. printed |
|---|---|
| Plug-in system | MINI COMBICON |
| Type of contact | Female connection |
| Family of articles | FMCD 1,5/..-ST |
| Step | 3.5 mm |
| Number of poles | Ten |
| Type of connection | Connection by spring loaded push-in |
| Lock | without |
| Number of floors | Two |
| Number of connections | Twenty |
| Number of potential | Twenty |
Characteristic data electrical
| Rated current | 8 To |
|---|---|
| Rated voltage | 160 V |
| Tension sizing | 160 V |
| Tension and sizing (III/2) | 160 V |
| Tension and sizing (II/2) | 320 V |
| Transient voltage design (III/3) | 2.5 kV |
| Transient voltage design (III/2) | 2.5 kV |
| Transient voltage design (II/2) | 2.5 kV |
Ability conex.
| Type of connection | Connection by spring loaded push-in |
|---|---|
| plug-in | yes |
| Section of conductor rigid | 0,2 mm2 ... 1.5 mm2 |
| Section of flexible conductor | 0,2 mm2 ... 1.5 mm2 |
| Section of conductor AWG / kcmil | 24 ... 16 |
| Section of flexible conductor with toe cap, without plastic sleeve | 0.25 mm2 ... 1.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve | 0.25 mm2 ... 0.75 mm2 |
| Length of peeling | 10 mm |
Directions on cutting edge
| Clamp crimp recommended | 1212034 CRIMPFOX 6 |
|---|---|
| Leading without collar is insulated, according to DIN 46228-1 | Section: 0.25 mm2; Length: 7 mm |
| Section: 0,34 mm2; Length: 7 mm | |
| Section: 0.5 mm2; Length: 8 mm ... 10 mm | |
| Section: 0.75 mm2; Length: 8 mm ... 10 mm | |
| Section: 1 mm2; Length: 8 mm ... 10 mm | |
| Section: 1.5 mm2; Length: 10 mm | |
| Clamp crimp recommended | 1212034 CRIMPFOX 6 |
| Leading with collar insulated, according to DIN 46228-4 | Section: 0.14 mm2; Length: 8 mm |
| Section: 0.25 mm2; Length: 8 mm ... 10 mm | |
| Section: 0,34 mm2; Length: 8 mm ... 10 mm | |
| Section: 0.5 mm2; Length: 8 mm ... 10 mm | |
| Section: 0.75 mm2; Length: 10 mm |
Material data - contact
| Observation | According to WEEE/RoHS, without filaments according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Material contact | Cu alloy |
| Characteristics of the surface | tinning of malleable cast iron |
| Metal surface of the point of embornaje (top layer) | Tin (4 - 8 ám Sn) |
| Metal surface area of contact (top layer) | Tin (4 - 8 ám Sn) |
Material data - housing
| Color housing | green (6021) |
|---|---|
| Isolation | PA |
| Group insulating material | I |
| CTI according to IEC 60112 | Six hundred |
| Class of flammability according to UL 94 | V0 |
| Number of flammability of filaments GWFI according to en 60695-2-12 | Eight hundred fifty |
| Ignition temperature of filaments GWIT according to en 60695-2-13 | Seven hundred seventy five |
| Temperature test of the hardness for the balls according to en 60695-10-2 | 125 °C |
Material data: drive element
| Isolation | PBT |
|---|---|
| CTI according to IEC 60112 | Six hundred |
| Class of flammability according to UL 94 | V0 |
Product dimensions
| Length [ l ] | 22,9 mm |
|---|---|
| Width [ w ] | 35,75 mm |
| Height [ h ] | 16 mm |
| Step | 3.5 mm |
| Height of building (height without the shank of soldering) | 16 mm |
| Average | 31.5 mm |
Indications of packing
| Type of packaging | packaged in box |
|---|---|
| Packing unit | Fifty |
| Designation packing Units | Units |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss
| eCl@ss 4.0 | 272607xx |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred one |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred one |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand three hundred nine |
UNSPSC
| UNSPSC 6.01 | Thirty million two hundred eleven thousand eight hundred ten |
|---|---|
| UNSPSC 7.0901 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 11 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 12.01 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 19.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
