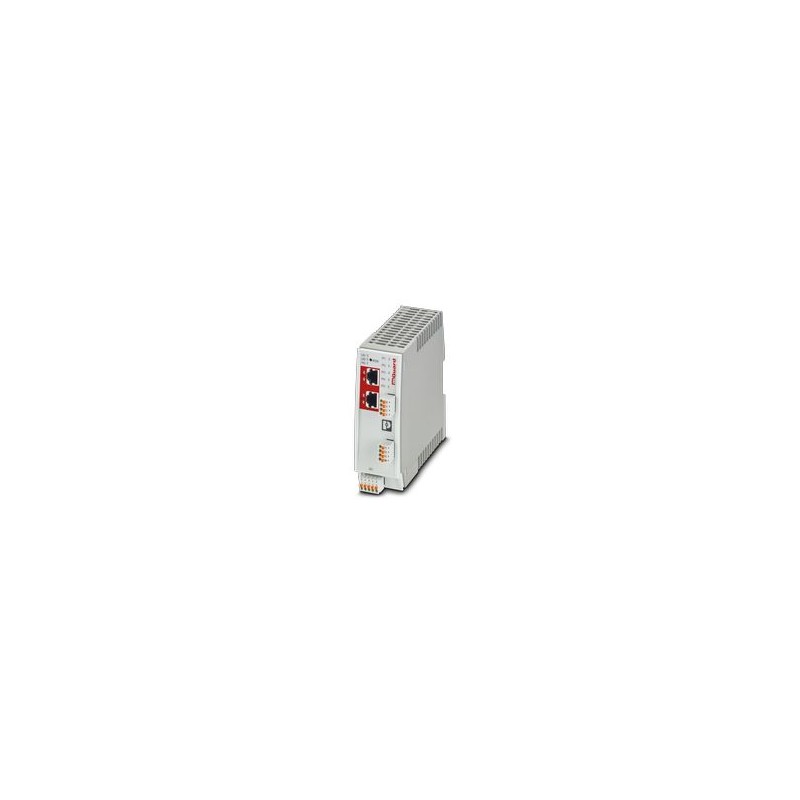

FL MGUARD 4302 1357840 PHOENIX CONTACT Security-Serial Router, 2 RJ45 ports 10/100/1000 MBit/s, protection i..
FL MGUARD 4302
1357840
PHOENIX_CONTACT
Security-Serial Router, 2 RJ45 ports 10/100/1000 MBit/s, protection index: IP20, Ambient temperature (service): -40 °C ... 60 °C, Supply voltage: 12 V DC ... 36 V DC, NAT, VPN, Development process certified according to IEC 62443-4-1, Product certified according to IEC 62443-4-2, Configurable Stateful Inspection firewall, with full function volume, safe separation for PROFIsafe according to IEC 61784-3-3, user firewall, conditional firewall, rule sets
Security appliance 10/100/1000 MBit/s, NAT, VPN, firewall
Data and telecommunication > Network router
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Width | 45 mm |
| Height | 130 mm |
| Depth | 133.8 mm |
| Colour | grey |
| Shell material | Plastic |
| Ethernet | |
| Connection type | RJ45 |
| Transmission speed | 10/100/1000 MBit/s |
| Transmission Physics | Ethernet on RJ45-twisted pair |
| Transmission Length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, Link, Activity |
| Number of channels | 2 (RJ45 ports) |
| 2 digital outputs, 2 digital inputs | |
| Connection type | Push-in/spring-loaded connection |
| Additional Text | No galvanic separation |
| VPN Release Push Button | |
| Connection type | Push-in/spring-loaded connection |
| Functionality | |
| Basic Functionality | Security appliance with smart firewall and VPN for 250 tunnels, plastic case, SD memory card slot, extended temperature range, Gigabit Wirespeed |
| System Requirements | |
| Browser Held | HTTPS support required |
| Construction | Stand-Alone |
| Product Type | Symmetrical Rail Safety Router |
| Insulation Properties | |
| Kind of protection | III (IEC 61140, EN 61140, VDE 0140-1) |
| Security Features | |
| 1:1 Network Address Translation (NAT) on VPN | Supported |
| Amount in the VPN tunnel | 250 |
| Authentication | X.509v3 certificates with RSA or PSK |
| Data Integrity | MD5, SHA-1, SHA 256, SHA-512 |
| Dynamic Host Configuration Protocol (DHCP) support | Server or Relay Agent |
| Filtering | MAC & IP Addresses, Ports, Protocols |
| Firewall Data Flow | max. 940 MBit/s (Router mode, Default Firewall rules, one-way throughput) |
| max. 850 MBit/s (Stealth Mode, Default Firewall rules, one-way throughput) | |
| Firewall rules | Configurable Stateful Inspection firewall with full compendium of functions |
| Basic Functionality | Security appliance with smart firewall and VPN for 250 tunnels, plastic case, SD memory card slot, extended temperature range, Gigabit Wirespeed |
| Internet Protocol Security (IPsec) Mode | ESP Tunnel / ESP Transport |
| Link Layer Discovery Protocol (LLDP) | according to protocol 802.2 |
| Network Time Protocol (NTP) Client | Client/Server |
| Remote Syslog Logging | On external server |
| Routing | Standard router, NAT, 1:1-NAT, and Port Forwarding |
| Protection | IP Spoofing, Protection. against DoS attacks and Syn Flood |
| Encryption Method | DES, 3DES, AES-128, -192, -256 |
| Throughput Virtual Private Network (VPN) | max. 250 MBit/s (Router mode, one-way VPN throughput) |
| Local diagnosis | US1, US2 Supply Voltage US1, US2 Green LED |
| One LED for each port Active Link / Speed Green/Green/Yellow LEDs | |
| Maximum Dissipated Power with Nominal Condition | Typ. 2.88 W |
| Feeding | |
| Supply voltage (DC) | 24 V DC (redundant) |
| Supply voltage | 12 V DC ... 36 V DC |
| Power connection | via COMBICON, max. conductor cross-section 1.5 mm² |
| Residual ripple | 3.6 VPP(within the permissible voltage range) |
| Maximum Current Absorption | 1 A |
| Typical Current Absorption | 120 mA (with Us= 24 V DC) |
| function | |
| Alarm Contact Activation Voltage | 24 V DC (typical) |
| Alarm Contact Activation Current | 250 mA (short-circuit resistant) |
| Connection type | RJ45 female, shielded |
| AWG Conductor Section | (Converted according to IEC) |
| Environmental conditions | |
| Protection Index | IP20 |
| Ambient Temperature (Service) | -40 °C ... 60 °C |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Permissible air humidity (service) | 5 % ... 95% (non-condensing) |
| Free of disturbing varnish wetting substances | Yes |
| Conformance/Approvals | |
| Conformity | CE Compliance |
| Type of mounting | Rail mounting |
| Connection type | RJ45 female, shielded |
| Compliance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD, electrostatic discharge immunity) 6 kV contact discharge, 8 kV air discharge |
| IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated fields) 10 V/m (80 MHz ... 6000 MHz) | |
| IEC 61000-6-2 IEC 61000-4-4 (immunity to fast transients) | |
| IEC 61000-6-2 IEC 61000-4-5 (Shock Wave Immunity) power line: 1 kV (line/earth), 0.5 kV (line/line), 1 kV data line | |
| IEC 61000-6-2 IEC 61000-4-6 (Conducted Immunity) 10 V (150 kHz ... 80 MHz) | |
| Interference resistance | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Compliance with EMC Directive 2014/30/EU |
| Interference emission | EN 61000-6-4 |
| Status Indication | LEDs: US1, US2, FAIL, Link and Activity |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Other |
| Degree of protection (IP) (EF005474) | IP20 |
