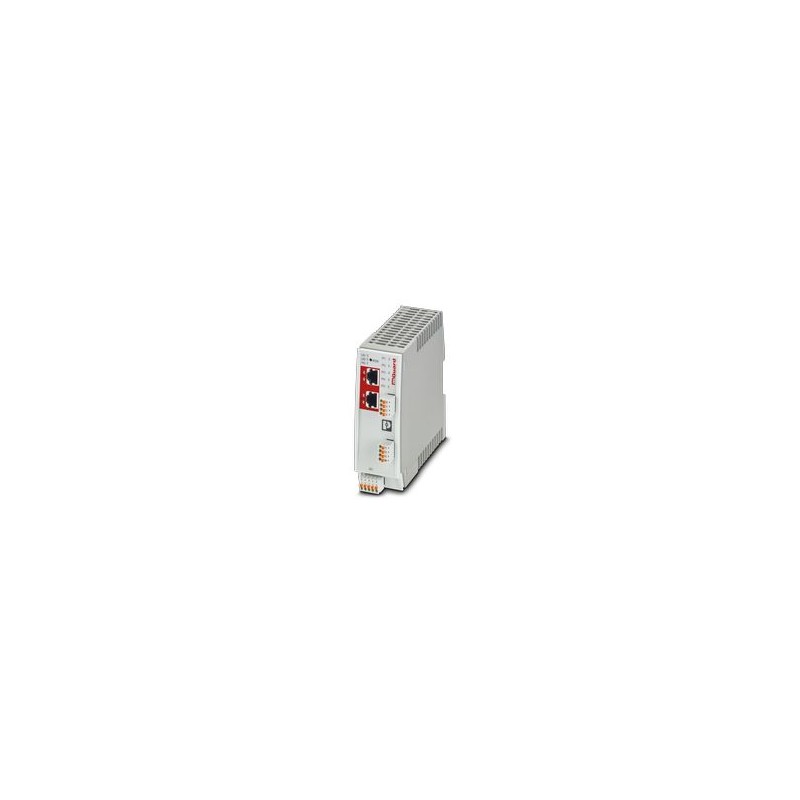

FL MGUARD 2102 1357828 PHOENIX CONTACT Remote Maintenance Router 10/100/1000 MBit/s, NAT, VPN, Firewall
FL MGUARD 2102
1357828
PHOENIX_CONTACT
Remote Maintenance Router 10/100/1000 MBit/s, NAT, VPN, Firewall
Remote maintenance router, 10/100/1000 Mbps, NAT, VPN, firewall
I/O
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲Technical data
Dimensions
| Width | 45 mm |
| Height | 130 mm |
| Depth | 133.8 mm |
Material specifications
| Color | gray |
| Housing material | Plastic |
Interfaces
| Ethernet | |
| Connection method | RJ45 |
| Transmission speed | 10/100/1000 Mbps |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity |
| No. of channels | 2 (RJ45 ports) |
| 2x digital output, 2x digital input | |
| Connection method | Push-in-/Spring-cage connection |
| Additional text | not electrically isolated |
| VPN - release button | |
| Connection method | Push-in-/Spring-cage connection |
System properties
| Functionality | |
| Basic functions | Router with firewall and VPN for 2 tunnels (fixed), plastic housing, slot for SD memory card, extended temperature range, router with firewall and VPN for 2 tunnels (fixed), plastic housing, slot for SD memory card, extended temperature range |
| System requirements | |
| Supported browsers | HTTPS support required |
Product properties
| Type | Stand-Alone |
| Product type | Security router for the DIN rail |
| Insulation characteristics | |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Security functions | |
| 1:1 Network Address Translation (NAT) in the VPN | Supported |
| Number of VPN tunnels | 2 (Fixed, Ipsec (IETF standard)) |
| Authentication | X.509v3 certificates with RSA or PSK |
| Data integrity | MD5, SHA-1, SHA 256, SHA-512 |
| Dynamic Host Configuration Protocol (DHCP) support | Server or Relay Agent |
| Filtering | Incoming or outgoing traffic |
| Firewall data throughput | max. 940 Mbps (Router mode, default firewall rules, unidirectional throughput) |
| max. 850 Mbps (Stealth mode, default firewall rules, unidirectional throughput) | |
| Firewall rules | simple stateful inspection firewall, no user firewall, no conditional firewall, no rule sets |
| Basic functions | Router with firewall and VPN for 2 tunnels (fixed), plastic housing, slot for SD memory card, extended temperature range, router with firewall and VPN for 2 tunnels (fixed), plastic housing, slot for SD memory card, extended temperature range |
| Internet Protocol Security (IPsec) mode | ESP tunnel / ESP transport |
| Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
| Network Time Protocol (NTP) client | Client/server |
| Remote Syslog Logging | On externals server |
| Routing | Standard routing, NAT, 1:1-NAT, port forwarding |
| Encryption methods | DES, 3DES, AES-128, -192, -256 |
Electrical properties
| Local diagnostics | US1 Supply voltage US1 Green LED |
| One LED per port Link active / Speed Green / green/yellow LED | |
| Maximum power dissipation for nominal condition | typ. 2.88 W |
| Supply | |
| Supply voltage (DC) | 24 V DC |
| Supply voltage range | 12 V DC ... 36 V DC |
| Power supply connection | via COMBICON, max. conductor cross section 1.5 mm² |
| Residual ripple | 3.6 VPP(within the permitted voltage range) |
| Max. current consumption | 1 A |
| Typical current consumption | 120 mA (at US= 24 V DC) |
| Function | |
| Signal contact control voltage | 24 V DC (typical) |
| Signal contact control current | 250 mA (short-circuit-proof) |
Connection data
| Cross section AWG | (converted acc. to IEC) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Standards and regulations
| Free from substances that could impair the application of coating | Yes |
Approvals
| Conformity/Approvals | |
| Conformance | CE-compliant |
Mounting
| Mounting type | DIN rail |
| Mounting type | DIN rail mounting |
EMC data
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) 6 kV contact discharge, 8 kV air discharge |
| IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) 10 V/m (80 MHz ... 6000 MHz) | |
| IEC 61000-6-2 IEC 61000-4-4 (burst) | |
| IEC 61000-6-2 IEC 61000-4-5 (surge) power line: 1 kV (line/earth), 0.5 kV (line/line), 1 kV data line | |
| IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) 10 V (150 kHz ... 80 MHz) | |
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4 |
Signaling
| Status display | LEDs: US1, FAIL, Link, and Activity |
