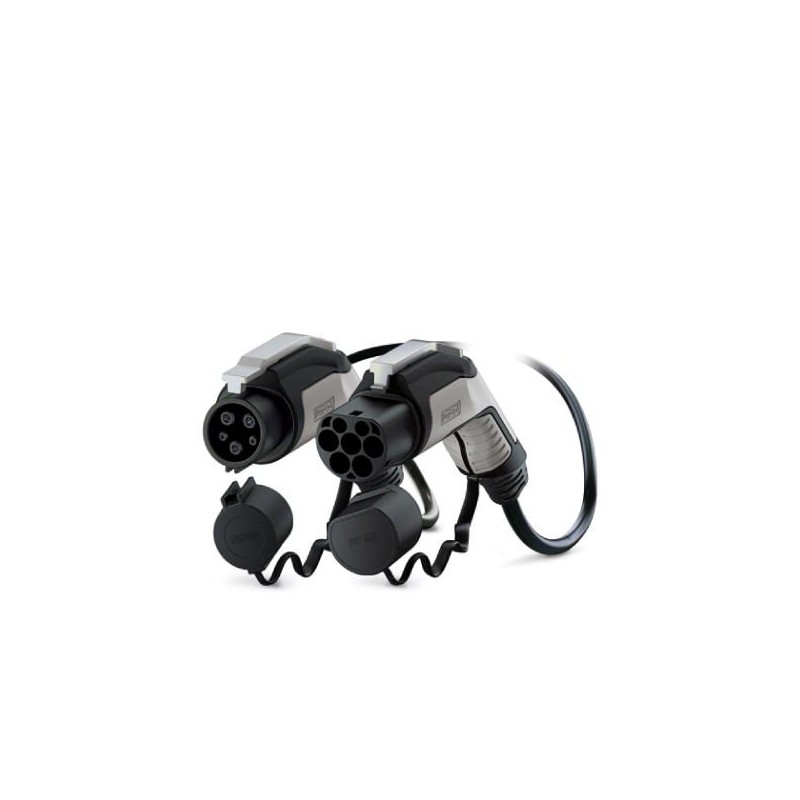

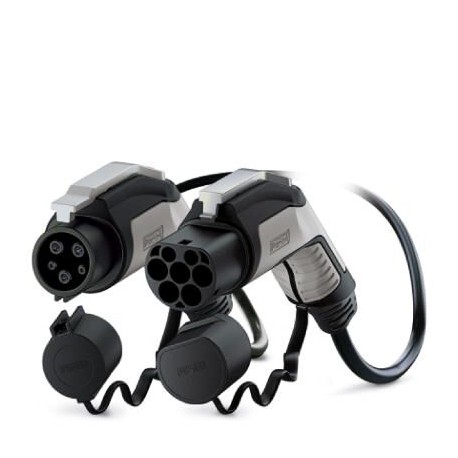

EV-TDG3JK-1AC32A-5,0M6,0ESBK01 1022285 PHOENIX CONTACT AC charging cable, Mobile AC charging cable with Vehi..
EV-TDG3JK-1AC32A-5,0M6,0ESBK01
1022285
PHOENIX_CONTACT
AC charging cable, Mobile AC charging cable with Vehicle Connector and Infrastructure Plug, with locking option for U-lock, with protective caps, C-Line black / gray, Type 1, GB/T, GB/T 20234.2-2015, SAE J1772, 32 A / 250 V (AC), design line C-Line, cable: 5 m, black, straight, mating face: black, handle area: gray
CHARX connect, Mobile AC charging cable with charging connectors for vehicles and infrastructures, with caps, Black-grey housing colour, with lock option for padlock, for alternating current (AC) charging electric vehicles (EV) with type 1 vehicle inputs, Compatible with GB/T infrastructure charging sockets at charging stations for electromobility (EVSE), Type 1, GB/T, GB/T 20234.2-2015, SAE J1772, 32 A / 250 V (AC), C-Line, "PHOENIX CONTACT" logo, cable:5 m, black, straight
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1022285 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 33 (C-7-2019) |
| GTIN | 4055626515878 |
| Custom tariff number | 85444290 |
Product definition
| Product type | Mobile AC charging cable with Vehicle Connector and Infrastructure Plug, with locking option for U-lock, with protective caps |
|---|---|
| Type | C-Line black / gray |
| Standards/regulations | GB/T 20234.2-2015 |
| SAE J1772 | |
| Charging standard | Type 1 |
| GB/T | |
| Charging mode | Mode 3, Case B |
Dimensions
| Vehicle connector width | 58.00 mm |
|---|---|
| Vehicle connector height | 151.10 mm |
| Vehicle connector depth | 236.10 mm |
| Infrastructure plug width | 58.00 mm |
| Infrastructure plug height | 151.30 mm |
| Infrastructure plug depth | 249.20 mm |
| Conductor length | 5 m |
| Stripping length | 60 mm ±15 mm |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| IP54 (Protective cap) |
Electrical properties
| Maximum charging power | 8 kW |
|---|---|
| Number of phases | 1 |
| Number of power contacts | 3 (L1, N, PE) |
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 250 V AC |
| Number of signal contacts | 2 (CP, CS) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Resistor coding | 480 Ω (Lever actuated) |
| 150 Ω (Lever not actuated) |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 75 N |
| Withdrawal force | < 75 N |
Design
| Design line | C-Line |
|---|---|
| Housing color | black |
| Mating face color | black |
| Color handle area | gray |
| Actuating element color | silver |
| Color protective cap | black |
| Customer variations | On request |
Material
| Housing material | Plastic |
|---|---|
| Material handle area | Soft plastic |
| Actuating lever material | Metal |
| Material protective cap | Soft plastic |
| Material mating face | Plastic |
| Flammability rating | V0 |
| Material surface of contacts | Ag |
Cable
| Cable structure | 3 x 6.0 mm² + 1 x 0.5 mm² |
|---|---|
| Wiring standards/regulations | prEN 50620 / DIN EN 50620 |
| Wiring class | Class 5 |
| Wiring certifications | VDE |
| External cable diameter | 12.8 mm ±0.4 mm |
| Type of conductor | straight |
| Cable resistance | ≤ 0.00798 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Outer sheath, material | TPE-U |
| External sheath, color | black |
| Minimum bending radius | 192 mm (15 x diameter) |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 10; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 6 Mbytes |
|
