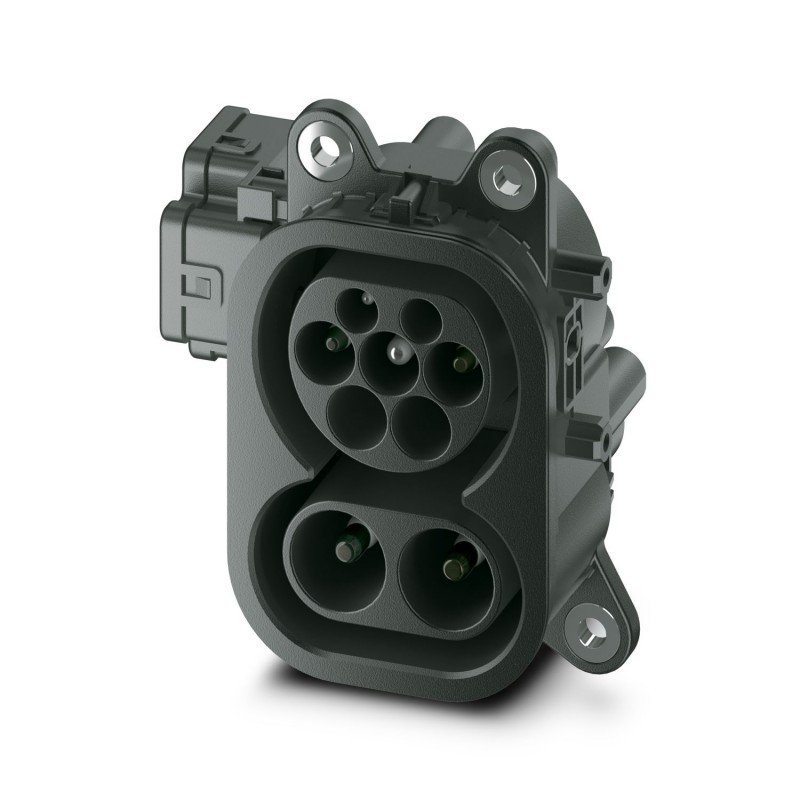

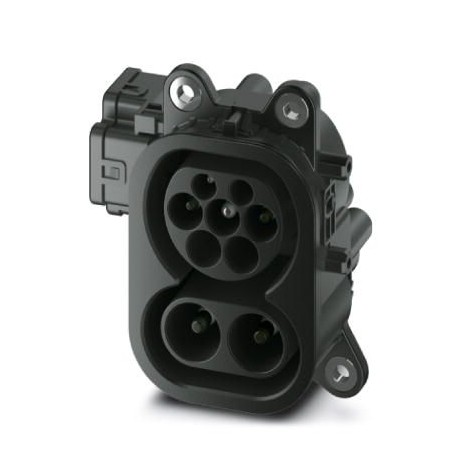

EV-T2MBIE12-3ACDC-INFRA 1623492 PHOENIX CONTACT Vehicle Connector test adapter
EV-T2MBIE12-3ACDC-INFRA
1623492
PHOENIX_CONTACT
Vehicle Connector test adapter
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1623492 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626172149 |
| Weight per Piece (excluding packing) | 3,994.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | Special Inlet for charging station tests |
|---|---|
| Standards/regulations | IEC 62196-3 |
| Charging standard | CCS type 2 |
| Combined Charging System | |
| Charging mode | Mode 2, 3, 4 |
| Note on the connection method | Crimp connection, cannot be disconnected |
Dimensions
| Height | 116 mm |
|---|---|
| Width | 76 mm |
| Depth | 94 mm |
| Bore dimensions | 116 mm x 46 mm / 116 mm x 70 mm |
| Conductor length | 2 m (AC cables) |
| 2 m (DC cables) | |
| 0.5 m (Locking actuator cables) | |
| Cable structure | 2 x 35 mm² + 1 x 25 mm² + 2 x 2.5 mm² + 3 x 2 x 0.5 mm² |
| Type of conductor | Single wires |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP44 (plugged in) |
| IP55 (with protective cap) |
Electrical properties
| Maximum charging power | 106 kVA |
|---|---|
| Type of charging current | DC, AC 3-phase |
| Number of phases | 3 |
| Number of power contacts | 7 (L1, L2, L3, N, PE, DC+, DC-) |
| Rated current of power contacts | 125 A DC |
| 20 A AC | |
| Rated voltage for power contacts | 250 V AC |
| 850 V DC | |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation with modulated Powerline communication according to ISO/IEC 15118 / DIN SPEC 70121 |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Insulation resistance of neighboring contacts | > 5 kΩ |
| Temperature monitoring | 2x Pt 1000 |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Mounting
| Possible mounting positions | Front and rear mounting |
|---|---|
| Restrictions to mounting position | Only 0 to 90 degree frontal inclination possible, see figure |
| Mounting position of the locking actuator | Left-side |
| Mounting hole diameter | 6.80 mm (ø) |
Locking
| Locking type | Locking in the inserted state with a locking mechanism |
|---|---|
| Locking voltage | 12 V |
| Locking detection | available |
| Mechanical emergency release | available |
Locking actuator
| Typical power supply at the motor | 12 V |
|---|---|
| Possible power supply range at the motor | 9 V ... 16 V |
| Typical motor current for locking | 0.2 A |
| Max. reverse current of the motor | 1 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Maximum voltage for locking detection | 30 V |
| Service life | > 10000 load cycles |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Length of cable | 0.5 m |
Temperature sensors
| Type of sensor | Pt 1000 |
|---|---|
| Standards/regulations | DIN EN 60751 |
| Recommended measured current | 1 mA (1 V at 0°C) |
| Tolerance at the sensor with the recommended measured current | ±1K |
| Temperature range | -50 °C ... 130 °C |
| Temperature coefficient (TCR) | 3850 ppm/K |
| Long-term stability (max. R0-Drift) | 0.06 % (After 1000 hours at 130°C) |
| Shutdown temperature | 90 °C equivalent to a Pt 1000 value of 1346.5 Ω |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027440590eCl@ss 8.027440590eCl@ss 9.027144792
