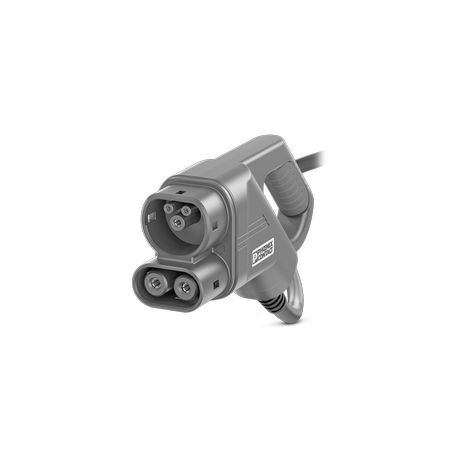

EV-T2M4CC-DC80A-8,0M16ESBK11 1495930 PHOENIX CONTACT CHARX connect standard, DC charging cable, with vehicle..
EV-T2M4CC-DC80A-8,0M16ESBK11
1495930
PHOENIX_CONTACT
CHARX connect standard, DC charging cable, with vehicle charging connector and open cable end, for direct current (DC) charging of electric vehicles (EV), with PP contact connected, with replaceable plug-in face frame, with analogue temperature sensors, CCS type 2, IEC 62196-3, 80 A / 1000 V (DC), PHOENIX CONTACT logo, Cable: 8 m, black, straight, IMPORTANT: Cables may need to be organized.
CHARX connect standard, DC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with direct current (DC), with connected PP contact, with replaceable mating face frame, with analog temperature sensors, CCS type 2, IEC 62196-3, 80 A / 1000 V (DC), PHOENIX CONTACT logo, cable: 8 m, black, straight, NOTE: Cable management may be required.
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | DC charging cable |
| Product family | CHARX connect standard |
| Application | for charging electric vehicles (EV) with direct current (DC) |
| for installation at charging stations for electromobility (EVSE) | |
| Type | DC charging cable |
| with vehicle charging connector and open cable end | |
| Design | with connected PP contact |
| with replaceable mating face frame | |
| with analog temperature sensors | |
| Technology | Combined Charging System |
| Affixed logo | PHOENIX CONTACT logo |
| Label | 14.1 mm x 44.8 mm (customer logo on request) |
| Charging standard | CCS type 2 |
| Charging mode | Mode 4 |
| Type of signal transmission | Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121 |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Coding | 1500 Ω (between PE and PP) |
| PP signal contact connected to cable | |
| Temperature monitoring | 2x Pt 1000 |
| Type of charging current | DC |
| Charging power | 80 kW |
| Charging current | 80 A |
| Power contact | |
| Number | 3 (PE, DC+, DC-) |
| Rated voltage | 1000 V DC |
| Rated current | 80 A (up to 40 °C) |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Temperature sensors (Pt 1000) | |
| Sensor type | Pt 1000 |
| Standards/regulations | DIN EN 60751 |
| Attachment point | Sensor for the DC contacts |
| Switch-off temperature | 90 °C ±1 K (equivalent to a Pt 1000 value of 1346.5 Ω) |
| Long-term stability | 0.06 % (after 1000 hours at 130 °C) |
| Recommended measured current | 1 mA (1 V at 0°C) |
| Coefficient | 3850 ppm/K |
| Ambient temperature | -50 °C ... 130 °C (Operation) |
| Cross section AWG | (converted acc. to IEC) |
| Vehicle charging connector | |
| Width | 75 mm |
| Height | 139 mm |
| Depth | 267 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | gray (7042) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | TPE-U |
| Material (Contact surface) | Silver |
| Flammability rating according to UL 94 | V0 (Mating face) |
| Cable length | 8 m ±45 mm |
| Wiring standards/regulations | prEN 50620/DIN EN 50620 |
| Cable weight | max. 820 kg/km |
| Cable type | Class 6 |
| Cable type | straight |
| Cable structure | 3 x 16 mm² + 3 x 2 x 0.75 mm² |
| External cable diameter | 21.2 mm ±0.4 mm |
| Outer sheath, material | TPE-U |
| Stripping length of the sheath | 140 mm ±10 mm |
| Cable resistance | ≤ 0.00121 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 212 mm (10x Ø) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
| Ambient conditions | |
| Degree of protection (Vehicle charging connector) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Ambient temperature (operation) | -30 °C ... 40 °C |
| max. 55 °C (Current reduction required, observe the DC contact temperature limit value of 90°C) | |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Connection in accordance with standard | |
| Normative cable length restrictions | NOTE: Cable management may be required. |
| Cable management is required in the US if the cable length exceeds 7.5 m (IEC 61851-1). | |
| Standards | |
| Standards/regulations | IEC 62196-3 |
| Feature Name | Feature Value |
|---|---|
| Type of current (EF000143) | DC |
| Number of communication conductors (EF009317) | 2 |
| Type vehicle side (EF009318) | Type 2 CCS |
| Type infrastructure side (EF009319) | Free conductor end |
| With Incable Control Box (ICCB) (EF009320) | No |
| Charging mode (EF009321) | Mode 4 |
| Nominal current (EF000001) | 80 A |
| Nominal voltage (EF000002) | 1000 V |
| With temperature sensor (EF006034) | Yes |
| Cable length (EF000536) | 8 m |
| Cable type (EF000081) | Straight |
| Contact material (EF004019) | Other |
| Surface treatment contacts (EF002558) | Other |
