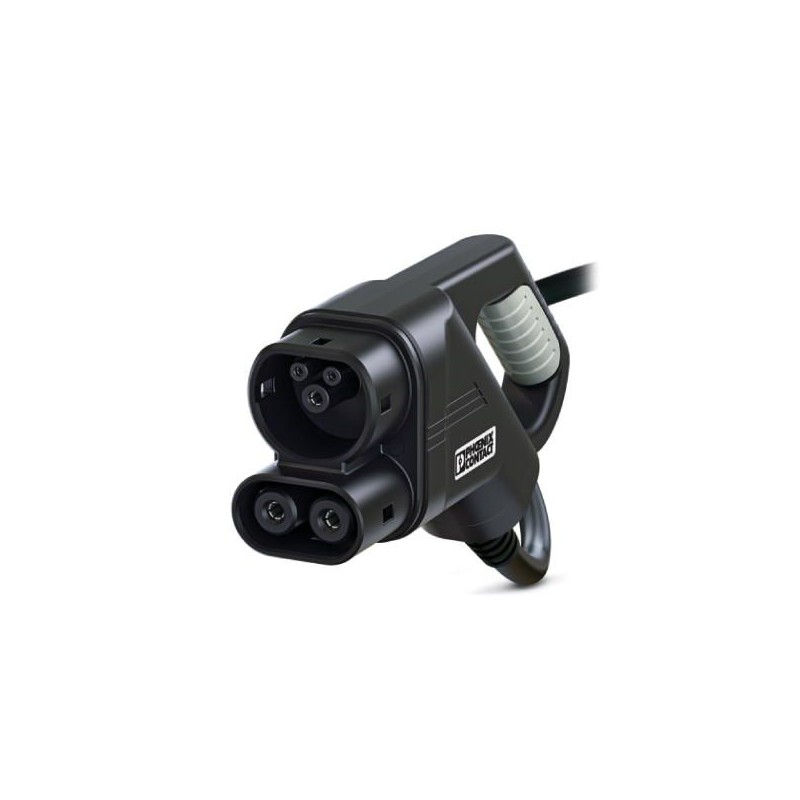

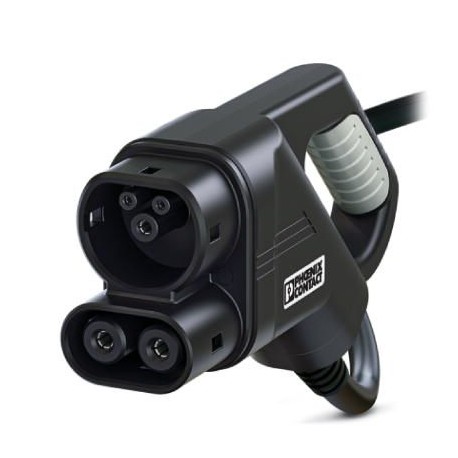

EV-T2M4CC-DC60A-2,5M16ESBK00 1623043 PHOENIX CONTACT DC charging cable
EV-T2M4CC-DC60A-2,5M16ESBK00
1623043
PHOENIX_CONTACT
DC charging cable
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1623043 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626083360 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | DC charging cable with vehicle connector, open cable end |
|---|---|
| Standards/regulations | IEC 62196-3 |
| Charging standard | CCS type 2 |
| Combined Charging System | |
| Charging mode | Mode 4 |
Dimensions
| Vehicle connector width | 75.00 mm |
|---|---|
| Vehicle connector height | 139.00 mm |
| Vehicle connector depth | 267.00 mm |
| Conductor length | 2.5 m |
| Stripping length | 140 mm ±10 mm |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| IP20 (when not plugged in, the required IP24 degree of protection must be ensured by other means, e.g., by a holder, see accessories) |
Electrical properties
| Maximum charging power | 60 kW |
|---|---|
| Number of power contacts | 3 (PE, DC+, DC-) |
| Rated current of power contacts | 60 A |
| Rated voltage for power contacts | 1000 V DC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation with modulated Powerline communication according to ISO/IEC 15118 / DIN SPEC 70121 |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Resistor coding | 1500 Ω (between PE and PP) |
| Temperature monitoring | 2x Pt 1000 |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Design
| Design line | Standard |
|---|---|
| Housing color | black |
| Mating face color | black |
| Color handle area | gray |
| Label | 14.1 mm x 44.8 mm (customer logo on request) |
Material
| Housing material | Plastic |
|---|---|
| Material handle area | Soft plastic |
| Material mating face | Plastic |
| Flammability rating | V0 |
| Material surface of contacts | Ag |
Cable
| Cable structure | 3 x 16 mm² + 3 x 2 x 0.75 mm² |
|---|---|
| Wiring standards/regulations | prEN 50620 / DIN EN 50620 |
| Wiring class | Class 6 |
| Wiring certifications | VDE-Reg. 8798 |
| External cable diameter | 18.4 mm ±0,3 mm |
| Type of conductor | straight |
| Outer sheath, material | HFFR |
| External sheath, color | black |
| Minimum bending radius | 184 mm (10 x diameter) |
Temperature sensors
| Type of sensor | Pt 1000 |
|---|---|
| Standards/regulations | DIN EN 60751 |
| Recommended measured current | 1 mA (1 V at 0°C) |
| Tolerance at the sensor with the recommended measured current | ±1K |
| Temperature range | -50 °C ... 130 °C |
| Temperature coefficient (TCR) | 3850 ppm/K |
| Long-term stability (max. R0-Drift) | 0.06 % (After 1000 hours at 130°C) |
| Shutdown temperature | 90 °C equivalent to a Pt 1000 value of 1346.5 Ω |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027449001eCl@ss 8.027449001eCl@ss 9.027144705
