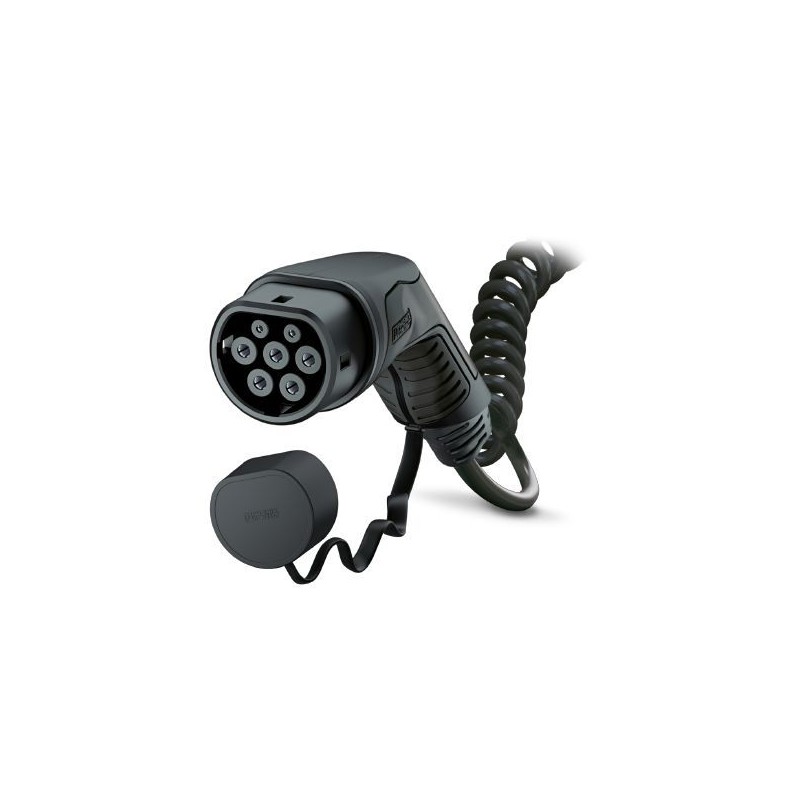

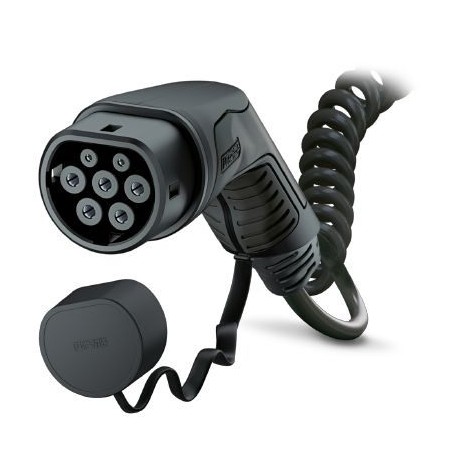

EV-T2G3P-1AC20A-4,0M2,5EHBK01 1627731 PHOENIX CONTACT AC charging cable
EV-T2G3P-1AC20A-4,0M2,5EHBK01
1627731
PHOENIX_CONTACT
AC charging cable
CHARX connect, AC charging cable, with infrastructure charging connector and open cable end, for charging electric vehicles (EV) with alternating current (AC), With cap, Type 2, IEC62196-2, 20 A / 250 V (AC), C-Line, PHOENIX CONTACT logo, cable: 4 m, black, coiled
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1627731 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626349831 |
| Weight per Piece (excluding packing) | 1,475.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | AC charging cable with infrastructure plug, open cable end, with protective cap |
|---|---|
| Type | C-Line black / gray |
| Standards/regulations | IEC 62196-2 |
| Charging standard | Type 2 |
| Charging mode | Mode 3 |
Dimensions
| Infrastructure plug width | 58.00 mm |
|---|---|
| Infrastructure plug height | 131.80 mm |
| Infrastructure plug depth | 233.40 mm |
| Conductor length | 4 m |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| IP54 (Protective cap) |
Electrical properties
| Maximum charging power | 5 kW |
|---|---|
| Number of phases | 1 |
| Number of power contacts | 3 (L1, N, PE) |
| Rated current of power contacts | 20 A |
| Rated voltage for power contacts | 250 V AC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Resistor coding | 680 Ω (between PE and PP) |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Design
| Design line | C-Line |
|---|---|
| Housing color | black |
| Mating face color | black |
| Color handle area | gray |
| Color protective cap | black |
| Customer variations | On request |
Material
| Housing material | Plastic |
|---|---|
| Material handle area | Soft plastic |
| Material protective cap | Soft plastic |
| Material mating face | Plastic |
| Flammability rating | V0 |
| Material surface of contacts | Ag |
Cable
| Cable structure | 3 x 2.5 mm² + 1 x 0.5 mm² |
|---|---|
| Wiring standards/regulations | prEN 50620 / DIN EN 50620 |
| Wiring class | Class 5 |
| Wiring certifications | VDE |
| External cable diameter | 10.2 mm ±0,3 mm |
| Type of conductor | spiraled |
| Outer sheath, material | TPE-U |
| External sheath, color | black |
| Minimum bending radius | 153 mm (15 x diameter) |
| Coil diameter | 45 mm ±10 % |
| Block length | 0.68 m ±10 % |
| Effective length | max. 4 m ±5 % |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027449001eCl@ss 8.027449001eCl@ss 9.027144705
| Feature Name | Feature Value |
|---|---|
| Type of current (EF000143) | AC single phase |
| Number of communication conductors (EF009317) | 2 |
| Type vehicle side (EF009318) | Free conductor end |
| Type infrastructure side (EF009319) | Type 2 |
| With Incable Control Box (ICCB) (EF009320) | No |
| Charging mode (EF009321) | Mode 3 |
| Nominal current (EF000001) | 20 A |
| Nominal voltage (EF000002) | 250 V |
| With temperature sensor (EF006034) | No |
| Cable length (EF000536) | 4 m |
| Cable type (EF000081) | Spiralized |
| Contact material (EF004019) | Other |
| Surface treatment contacts (EF002558) | Other |
