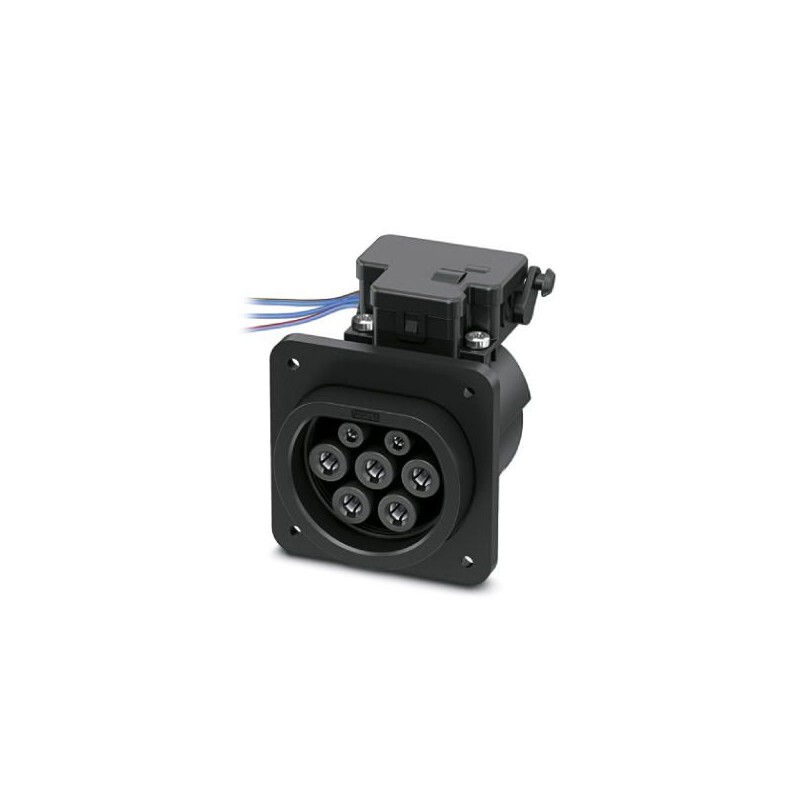

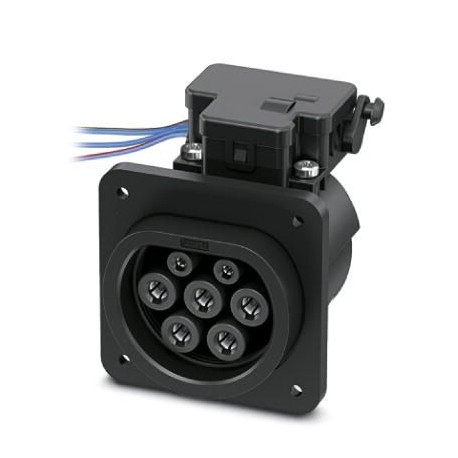

EV-T2M3SE12-3AC32A-1,0M6,0E10 1624043 PHOENIX CONTACT Socket Outlet
EV-T2M3SE12-3AC32A-1,0M6,0E10
1624043
PHOENIX_CONTACT
Socket Outlet
Industrial socket/plug applications > Charging connector E-Mobility
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1624043 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626228129 |
| Weight per Piece (excluding packing) | 888.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | Infrastructure Socket Outlet for charging electric vehicles with alternating current (AC), compatible with Infrastructure Plugs |
|---|---|
| Type | Rear protective cover screw connection |
| Standards/regulations | IEC 62196-2 |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
| Note on the connection method | Crimp connection, cannot be disconnected |
Dimensions
| Height | 96 mm |
|---|---|
| Width | 75 mm |
| Depth | 76.2 mm |
| Bore dimensions | 60 mm x 60 mm |
| Conductor length | 1 m (AC cables) |
| 0.5 m (Locking actuator cables) | |
| Cable structure | 5x 6.0 mm² + 2x 0.5 mm² |
| Type of conductor | Single wires |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP44 (plugged in) |
| IP54 (with protective cover, see accessories) |
Electrical properties
| Maximum charging power | 22 kW |
|---|---|
| Type of charging current | AC 3-phase |
| Number of phases | 3 |
| Number of power contacts | 5 (L1, L2, L3, N, PE) |
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 480 V AC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Mounting
| Possible mounting positions | Rear panel mounting |
|---|---|
| Front mounting only possible when the locking actuator is removed (see EV-T2M3SE...E00 versions) | |
| Restrictions to mounting position | Only 0 to 90 degree frontal inclination possible, see figure |
| Mounting position of the locking actuator | Top center |
| Screw connection of a protective cover | only rear mounting possible |
| Max. wall thickness | max. 50 mm (Rear panel mounting, normative maximum specification for infrastructure plug) |
| max. 28 mm (Rear mounting, normative maximum specification for infrastructure plug when using protective cover 1405217) | |
| max. 10 mm (Front mounting, when using the locking mechanism) | |
| Mounting hole diameter | 7.00 mm (ø) |
Locking
| Locking type | Locking in the inserted state with a locking mechanism |
|---|---|
| Locking voltage | 12 V |
| Locking detection | available |
| Mechanical emergency release | available |
Locking actuator
| Typical power supply at the motor | 12 V |
|---|---|
| Possible power supply range at the motor | 9 V ... 16 V |
| Typical motor current for locking | 0.2 A |
| Max. reverse current of the motor | 1 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Maximum voltage for locking detection | 30 V |
| Service life | > 10000 load cycles |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Length of cable | 0.5 m |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027449001eCl@ss 8.027449001eCl@ss 9.027144706
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 5 Mbytes |
|
