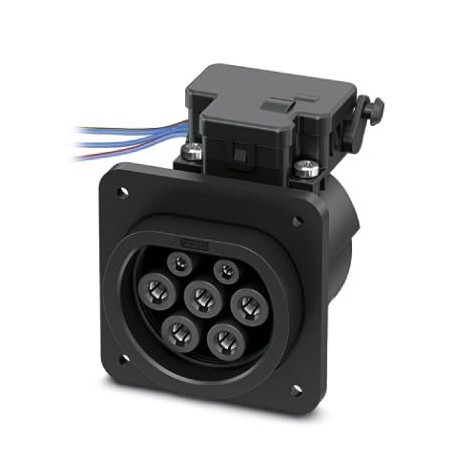

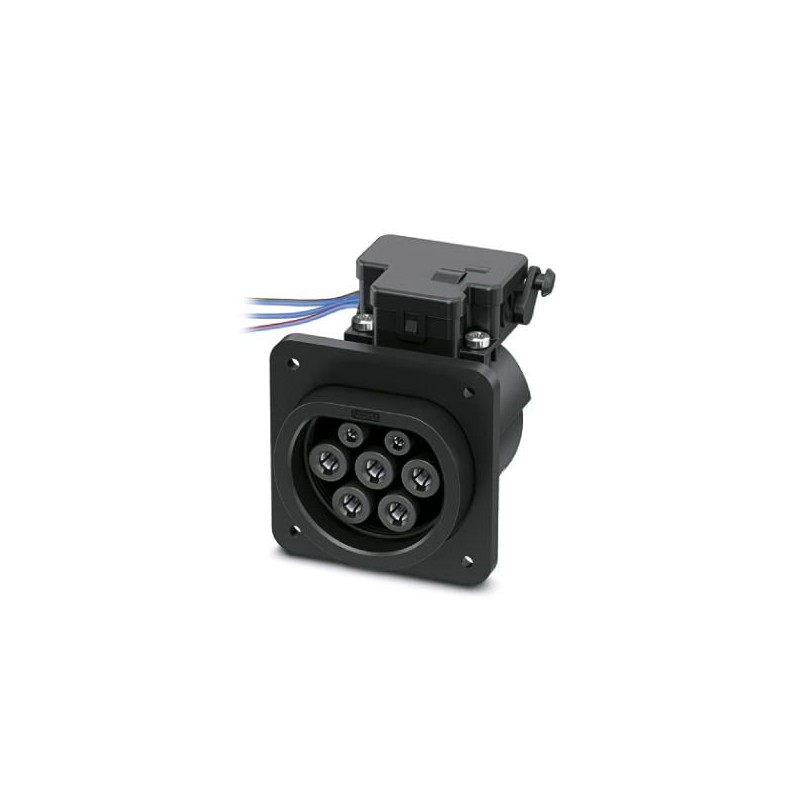

EV-T2M3SE12-3AC32A-0,7M6,0E15 1627785 PHOENIX CONTACT Infrastructure Socket Outlet for charging electric veh..
EV-T2M3SE12-3AC32A-0,7M6,0E15
1627785
PHOENIX_CONTACT
Infrastructure Socket Outlet for charging electric vehicles with alternating current (AC), compatible with Infrastructure Plugs, Type 2, IEC 62196-2, 32 A / 480 V (AC), 12 V Locking actuator, Single wires, length: 0.7 m, Rear panel mounting, Rear protective cover screw connection, Optimized insertion and withdrawal forces
CHARX connect basic, Infrastructure socket, Rectangular, Optimized plug-and-take forces, for charging electric vehicles (EV) with alternating current (AC), Type 2, IEC62196-2, 32 A / 480 V (AC), Single conductors, length: 0.7 m, locking actuator: 12 V, 4 poles, Rear wall mounting, housing: black, PHOENIX CONTACT logo
Industrial socket/plug applications > Charging connector E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Drawings
Product definition
| Product type | Infrastructure Socket Outlet for charging electric vehicles with alternating current (AC), compatible with Infrastructure Plugs |
|---|---|
| Type | Rear protective cover screw connection |
| Standards/regulations | IEC 62196-2 |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
| Note | Optimized insertion and withdrawal forces |
| Note on the connection method | Crimp connection, cannot be disconnected |
Dimensions
| Height | 96 mm |
|---|---|
| Width | 75 mm |
| Depth | 76.2 mm |
| Bore dimensions | 60 mm x 60 mm |
| Conductor length | 0.7 m (AC cables) |
| 0.5 m (Locking actuator cables) | |
| Cable structure | 5x 6.0 mm² + 2x 0.5 mm² |
| Type of conductor | Single wires |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP44 (plugged in) |
| IP54 (with protective cover, see accessories) |
Electrical properties
| Maximum charging power | 22 kW |
|---|---|
| Type of charging current | AC 3-phase |
| Number of phases | 3 |
| Number of power contacts | 5 (L1, L2, L3, N, PE) |
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 480 V AC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N (Optimized) |
| Withdrawal force | < 100 N (Optimized) |
Mounting
| Possible mounting positions | Rear panel mounting |
|---|---|
| Front mounting only possible when the locking actuator is removed (see EV-T2M3SE...E00 versions) | |
| Restrictions to mounting position | Only 0 to 90 degree frontal inclination possible, see figure |
| Mounting position of the locking actuator | Top center |
| Screw connection of a protective cover | only rear mounting possible |
| Max. wall thickness | max. 50 mm (Rear panel mounting, normative maximum specification for infrastructure plug) |
| max. 28 mm (Rear mounting, normative maximum specification for infrastructure plug when using protective cover 1405217) | |
| max. 10 mm (Front mounting, when using the locking mechanism) | |
| Mounting hole diameter | 7.00 mm (ø) |
Locking
| Locking type | Locking in the inserted state with a locking mechanism |
|---|---|
| Locking voltage | 12 V |
| Locking detection | available |
| Mechanical emergency release | available |
Locking actuator
| Typical power supply at the motor | 12 V |
|---|---|
| Possible power supply range at the motor | 9 V ... 16 V |
| Typical motor current for locking | 0.2 A |
| Max. reverse current of the motor | 1 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Maximum voltage for locking detection | 30 V |
| Service life | > 10000 load cycles |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Length of cable | 0.5 m |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 10; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 4.0 | 27140800 |
|---|---|
| eCl@ss 4.1 | 27140800 |
| eCl@ss 5.0 | 27143400 |
| eCl@ss 5.1 | 27143400 |
| eCl@ss 6.0 | 27143400 |
| eCl@ss 7.0 | 27449001 |
| eCl@ss 8.0 | 27449001 |
| eCl@ss 9.0 | 27144706 |
UNSPSC
| UNSPSC 6.01 | 30211923 |
|---|---|
| UNSPSC 7.0901 | 39121522 |
| UNSPSC 11 | 39121522 |
| UNSPSC 12.01 | 39121522 |
| UNSPSC 13.2 | 39121522 |
| UNSPSC 18.0 | 39121522 |
| UNSPSC 19.0 | 39121522 |
| UNSPSC 20.0 | 39121522 |
| UNSPSC 21.0 | 39121522 |
| Feature Name | Feature Value |
|---|---|
| Standard (EF009322) | Type 2 |
| With interlocking actuator (EF009323) | Yes |
| With access interlocking (EF009324) | Yes |
| Degree of protection (IP) (EF005474) | IP44 |
| Nominal voltage (EF000002) | 480 V |
| Max. nominal current (EF009326) | 32 A |
| Type of current (EF000143) | AC 3-phase |
| Number of communication contacts (EF009325) | 2 |
| Length of the fixed connection cable (EF009327) | 1 m |
| LED integrated (EF009328) | No |
| Cross section of the power contacts (EF009329) | 6 mm² |
