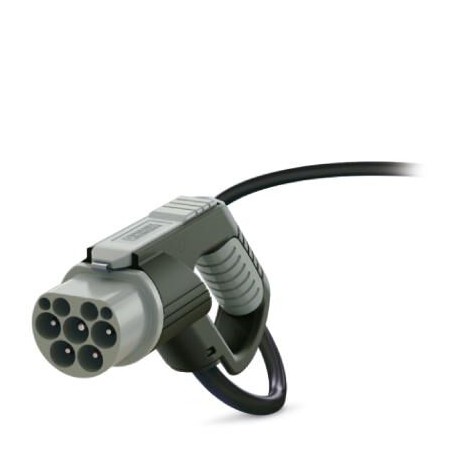

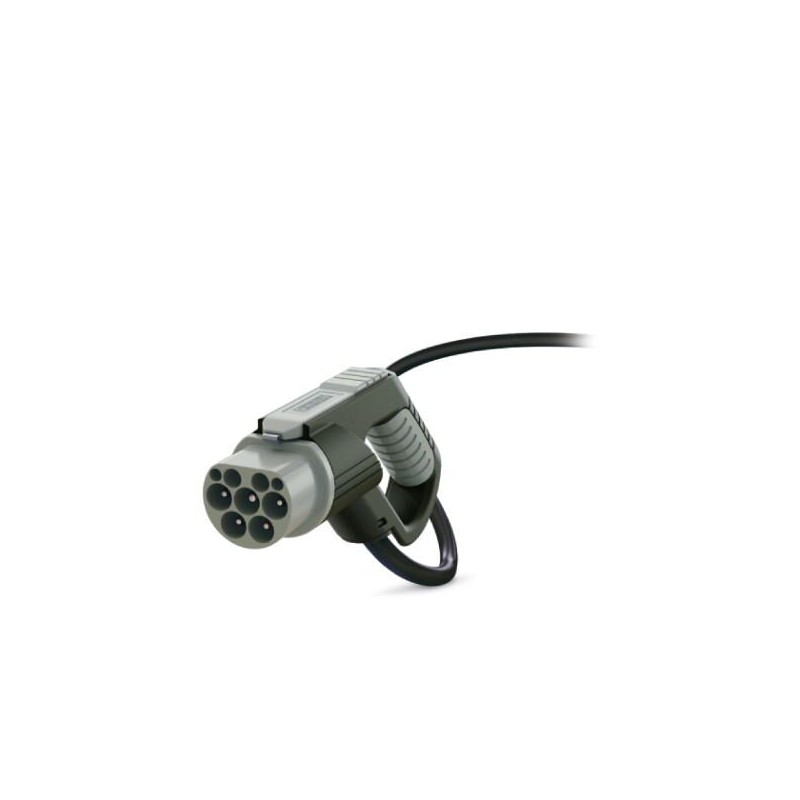

EV-GBM3C-3AC32A-5,0M6,0ESBK00 1038867 PHOENIX CONTACT Charging cable AC charging Cable AC charging connector..
EV-GBM3C-3AC32A-5,0M6,0ESBK00
1038867
PHOENIX_CONTACT
Charging cable AC charging Cable AC charging connector for vehicles, end of free cable, with cap, design Line 1, GB/T, GB/T 20234.2, 32 A / 440 V (AC), design line (D-Line, cable: 5 m, black, straight, face of plug: grey, grip zone: grey
CHARX connect, AC charging cable with vehicle charging connector and open cable end, with cap, Black-gray housing color, For alternating current (AC) charging electric vehicles (EV) with GB/T vehicle inputs, for installation on charging stations for electromobility (EVSE), GB/T, GB/T 20234.2, 32 A / 440 V (AC), D-Line, "PHOENIX CONTACT" logo, cable: 5 m, black, straight
AC charging cables, AC charging cable with vehicle charging connector, free cable end, with cap, Design line 1, GB/T, GB/T 20234.2, 32 A / 440 V (AC), D-Line design line, cable: 5 m, black, straight, plug face: gray, grip area: gray
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | One million thirty eight thousand eight hundred sixty seven |
|---|---|
| Packing unit | 1 pcs |
| Key selling | XWBAAF - |
| EAN | Four trillion fifty five billion six hundred twenty six million five hundred ninety three thousand sixty seven |
| Unit weight (excluding packaging) | 3.465,000 g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
Drawings
Observation
| Trade restriction | The products are offered only for export outside of the European Union and the European Economic area. |
|---|
Definition of the product
| Product type | Charging Cable AC charging connector for vehicles, end of free cable, with cap |
|---|---|
| Execution | D-Line |
| Standards/specifications | GB/T 20234.2 |
| Standard load | GB/T |
| Charging mode | Mode 3, case C |
Dimensions
| The width of the charging connector for vehicles | 60,00 mm |
|---|---|
| Height of the charging connector for vehicles | 112,40 mm |
| Depth charging connector for vehicles | 219,10 mm |
| Cable length | 5 m |
| Length of peeling | 45 mm ±10 mm |
Environmental conditions
| Room temperature (service) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage / transport) | -40 °C ... 80 °C |
| Altitude max. | 5000 m (above sea level) |
| Index of protection | IP55 (plugged in, the index of protection operating state and plugged in it can be assured only when both connecting elements are original products of Phoenix Contact products or standardized equivalent) |
| IP54 (Cap) |
Electrical properties
| Power of maximum load | 24,39 kW |
|---|---|
| Number of phases | Three |
| Number of power contacts | 5 (L, NC1, NC2, N, PE) |
| Power contacts rated current | 32 To |
| Power contacts rated voltage | 440 V |
| Number of signal contacts | 2 (CP, CC) |
| Contacts notice rated current | 2 To |
| Contacts notice rated voltage | 30 V AC |
| Type of transmission of signals | Modulation of duration of impulses |
| Note about the type of connection | Connection set, not separable |
| Coding of resistance | 220 Ω (between PE and CC) |
Mechanical characteristics
| Cycles of plug | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Force of separation | < 100 N |
Design
| Line design | D-Line |
|---|---|
| Color housing | black |
| Color face plug | grey |
| Color of the grip area | grey |
| The Color of the drive element | grey |
| Color of the cap | black |
| Tag | 14.1 mm x 44,8 mm (customer's logo under request) |
Material
| Material housing | Plastic |
|---|---|
| Material of the grip area | Soft plastic |
| Material of the drive lever | Plastic |
| Material cap | Plastic |
| Media face plug | Plastic |
| Surface of the material of the contacts | Ag |
Cable
| Structure of cable | 5 x 6.0 mm2 + 1 x 0.5 mm2 |
|---|---|
| Standards/specifications on cables | prEN 50620 / DIN en 50620 |
| Class of cable | Class 5 |
| Certifications of cables | VDE |
| Outer diameter of cable | 17 mm ±0.4 mm |
| Type of cable | straight |
| Resistance of the cable | ≤ 0,0033 Ω/m (with respect to a power cable, at an ambient temperature of 20 °C) |
| Outer casing, material | TPE-U |
| Outer wrap, color | black |
| Bending radius minimum | 255 mm (15 x diameter) |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Space of time for the intended use (FEUP): 10 years; |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
