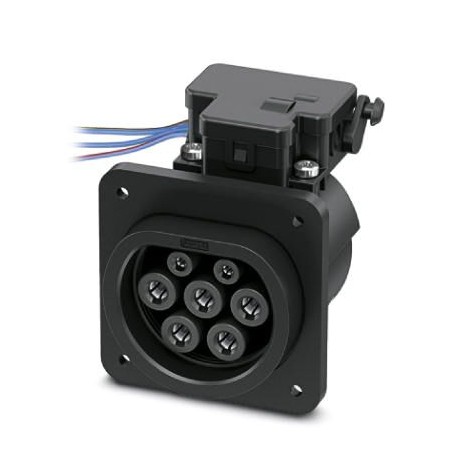

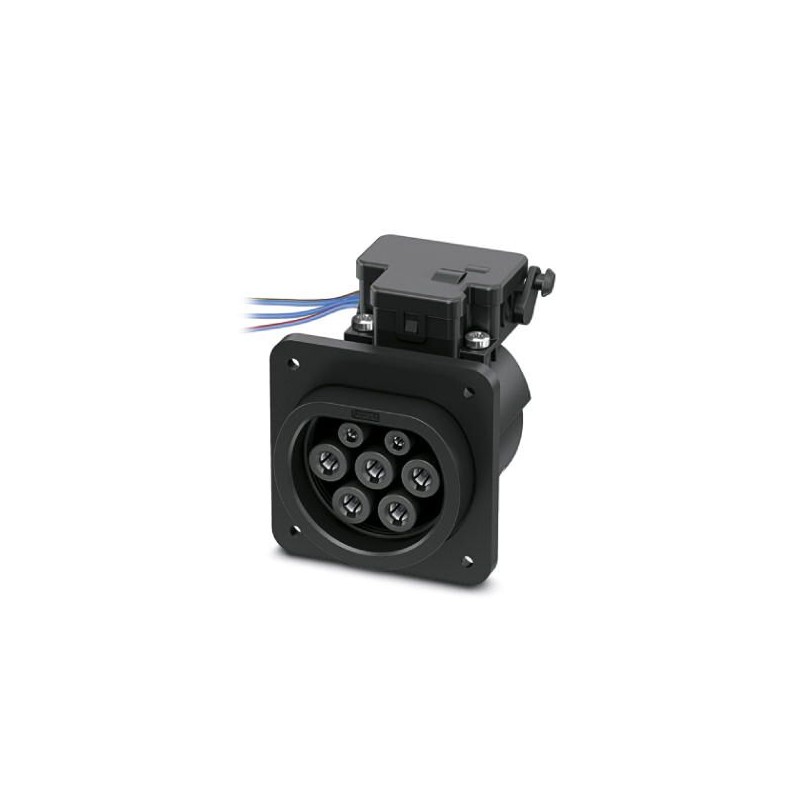

EV-T2M3SE12-3AC32A-0,18M-WBX 1064475 PHOENIX CONTACT Connector charging infrastructure for charging with alt..
EV-T2M3SE12-3AC32A-0,18M-WBX
1064475
PHOENIX_CONTACT
Connector charging infrastructure for charging with alternating current (AC) electric vehicles, compatible with charging connectors for infrastructures, typea diagonal no. 2, IEC 62196-2, 12 V Actuator lock, single Conductors, length: 0.18 m, wall Mounting, back Connection screw protection cap in the rear
CHARX connect, Infrastructure charging box, screw connection with protective cover at the rear, For charging electric vehicles (EV) with alternating current (AC), Compatible with charging connectors for infrastructures, Type 2, IEC 62196-2, Single conductors, length: 0.18 m, Locking actuator: 12 V, 4-poles, Rear wall mounting, Generation 1, "PHOENIX CONTACT" logo
Charging connector for infrastructures for charging with alternating current (AC) electric vehicles, compatible with charging connectors for infrastructures, Type 2, IEC 62196-2, 12 V Locking actuator, Single conductors, length: 0.18 m, Rear wall mounting, Connection by screw protection cover at the rear
Industrial socket/plug applications > Charging connector E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | One million sixty four thousand four hundred seventy five |
|---|---|
| Packing unit | 1 pcs |
| Key selling | XWBADC - |
| EAN | Four trillion fifty five billion six hundred twenty six million seven hundred forty one thousand seven hundred twenty seven |
| Unit weight (excluding packaging) | 0,000 g |
Drawings
Definition of the product
| Product type | Connector charging infrastructure for charging with alternating current (AC) electric vehicles, compatible with charging connectors for infrastructure |
|---|---|
| Execution | Connection by screw protection cap in the rear |
| Standards/specifications | IEC 62196-2 |
| Standard load | Type 2 |
| Charging mode | Mode 3, case B |
| Note about the type of connection | Connection set, not separable |
Dimensions
| Height | 96 mm |
|---|---|
| Width | 75 mm |
| Depth | 76.2 mm |
| Dimensions of drill | 60 mm x 60 mm |
| Cable length | 0.18 m |
| Structure of cable | 5x 6,0 mm2 + 2x 0.5 mm2 |
| Type of cable | Individual drivers |
Individual drivers
| Individual driver L1 | |
|---|---|
| 185 mm ±10 mm (End of cable compacted 8 mm) | |
| Individual driver L2 | BK |
| 185 mm ±10 mm (End of cable compacted 8 mm) | |
| Individual driver L3 | GY |
| 185 mm ±10 mm (End of cable compacted 8 mm) | |
| Individual driver N | BU |
| 185 mm ±10 mm (End of cable compacted 8 mm) | |
| Individual driver PE | GN/YE |
| 185 mm ±10 mm (End of cable compacted 8 mm) | |
| Individual driver CP | WH |
| 185 mm ±10 mm (End of cable compacted 8 mm) | |
| Individual driver CS | RD |
| 185 mm ±10 mm (End of cable compacted 8 mm) | |
| Individual threads of the actuator interlock | BU/RD |
| BU/BN | |
| BU/GN | |
| BU/YE | |
| 185 mm ±10 mm (End of cable compacted 8 mm) | |
| 185 mm ±10 mm (End of cable compacted 8 mm) | |
| 185 mm ±10 mm (End of cable compacted 8 mm) | |
| 185 mm ±10 mm (End of cable compacted 8 mm) |
Environmental conditions
| Room temperature (service) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage / transport) | -40 °C ... 80 °C |
| Altitude max. | 5000 m (above sea level) |
| Index of protection | IP44 (inserted) |
| IP54 (with protective cap; see accessories) |
Electrical properties
| Power of maximum load | 22 kW |
|---|---|
| Type of load current | AC three-phase |
| Number of phases | Three |
| Number of power contacts | 5 (L1, L2, L3, N, PE) |
| Power contacts rated current | 32 To |
| Power contacts rated voltage | 480 V AC |
| Number of signal contacts | 2 (CP, PP) |
| Contacts notice rated current | 2 To |
| Contacts notice rated voltage | 30 V AC |
| Type of transmission of signals | Modulation of duration of impulses |
| Note about the type of connection | Connection set, not separable |
Mechanical characteristics
| Cycles of plug | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Force of separation | < 100 N |
Mounting
| Possible mounting positions | Mounting on back wall |
|---|---|
| Possibility of front mounting only with actuator lock removed (see the variants EV-T2M3SE...E00) | |
| Limitations of the mounting position | Just tilt the front from 0 to 90 degrees as possible, see figure |
| Mounting position actuator lock | In the upper center |
| Connection by screw of a protection cap | only possible on the back side |
| Wall thickness max. | max. 50 mm (Mounting on rear wall, maximum specification standards for charging connectors for infrastructures) |
| max. 28 mm (wall Mounting rear, maximum specification rules for plug-in charging infrastructure to use the cover of protection 1405217) | |
| max. 10 mm (wall Mount, front, to use the actuator to lock) | |
| Diameter of the fixing hole | 7,00 mm (ø) |
Lock
| Lock system | Lock in a state connected with an actuator interlock |
|---|---|
| Tension lock | 12 V |
| Detection of lock | existing |
| Mechanical unlocking of emergency | existing |
Actuator lock
| Power supply typical motor | 12 V |
|---|---|
| Possible range of supply voltage in the motor | 9 V ... 16 V |
| Motor current typical lock | 0.2 To |
| Locked current max. engine | 1 To |
| Dwell time max. with power lock | 1000 ms |
| Time of adaptation recommended | 600 ms |
| Pause time after an input path or output | 3 s |
| Maximum voltage for the detection of the lock | 30 V |
| Life | > 10000 cycles of load |
| Room temperature (service) | -30 °C ... 50 °C |
| Cable length | 0.5 m |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 10 years; |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
