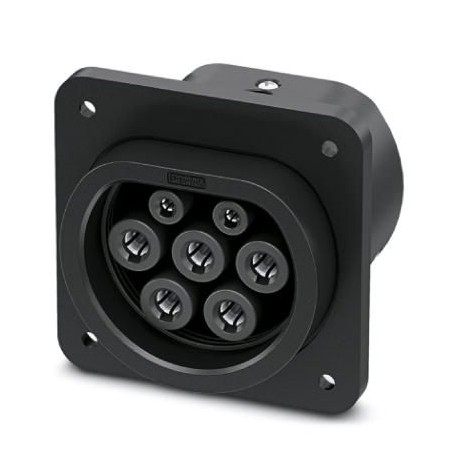

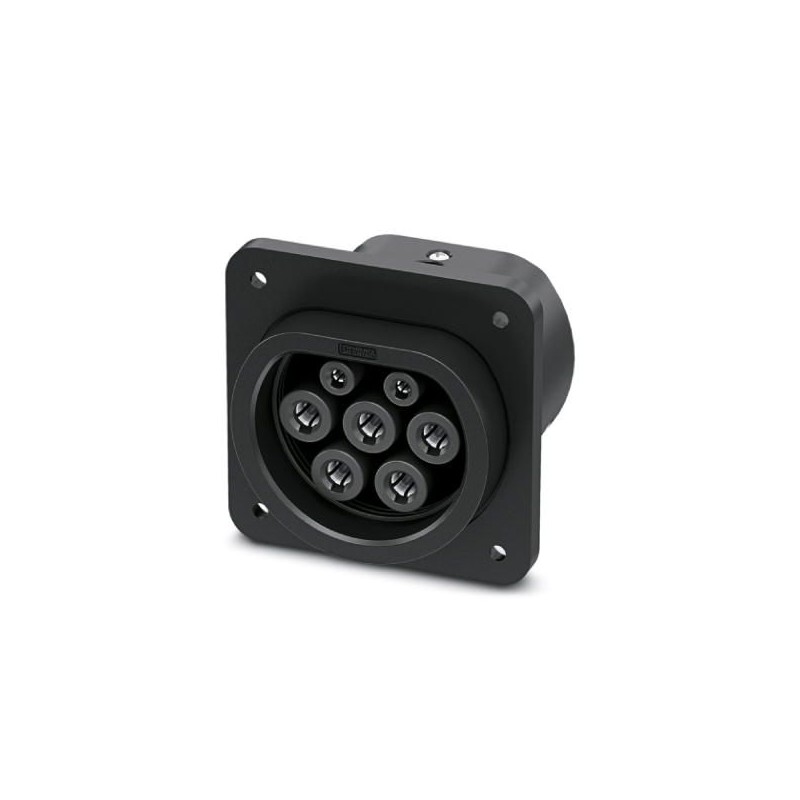

EV-T2M3S-3AC32A-1,0M6,0E00 1627526 PHOENIX CONTACT Socket Outlet
EV-T2M3S-3AC32A-1,0M6,0E00
1627526
PHOENIX_CONTACT
60
Socket Outlet
CHARX connect, Infrastructure charging box, screw connection of protective cover at the rear, without interlocking actuator, For charging electric vehicles (EV) with alternating current (AC), Compatible with charging connectors for infrastructures, Type 2, IEC 62196-2, 32 A / 480 V (AC), Single conductors, length: 1 m, Front and rear wall mounting, Generation 1, "PHOENIX CONTACT" LOGO, IMPORTANT! This article variant does not contain any locking actuators.
Industrial socket/plug applications > Charging connector E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1627526 |
|---|---|
| Packing unit | 60 pc |
| Minimum order quantity | 60 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626322216 |
| Weight per Piece (excluding packing) | 579.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | Infrastructure Socket Outlet for charging electric vehicles with alternating current (AC), compatible with Infrastructure Plugs |
|---|---|
| Type | Rear protective cover screw connection |
| Standards/regulations | IEC 62196-2 |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
| Note | NOTE This product version does not include a locking actuator. |
| Make sure that the Infrastructure Plug is locked into the Infrastructure Socket Outlet during the charging process according to IEC 61851-1. We recommend using our locking actuators (1624129, 1622317). If another type of locking is selected, we recommend sealing the mounting surface (1621465), see also accessories. | |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Special packaging quantity | 60 Quantity |
Dimensions
| Height | 79.5 mm |
|---|---|
| Width | 75 mm |
| Depth | 70.8 mm |
| Bore dimensions | 60 mm x 60 mm |
| Conductor length | 1 m |
| Cable structure | 5x 6.0 mm² + 2x 0.5 mm² |
| Type of conductor | Single wires |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP44 (plugged in) |
| IP54 (with protective cover, see accessories) |
Electrical properties
| Maximum charging power | 22 kW |
|---|---|
| Type of charging current | AC 3-phase |
| Number of phases | 3 |
| Number of power contacts | 5 (L1, L2, L3, N, PE) |
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 480 V AC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Mounting
| Possible mounting positions | Front and rear mounting |
|---|---|
| Restrictions to mounting position | Only 0 to 90 degree frontal inclination possible, see figure |
| Mounting position of the locking actuator | Top center |
| Screw connection of a protective cover | only possible on the front |
| Max. wall thickness | max. 50 mm (Rear panel mounting, normative maximum specification for infrastructure plug) |
| max. 28 mm (Rear mounting, normative maximum specification for infrastructure plug when using protective cover 1405217) | |
| max. 10 mm (Front mounting, when using the locking mechanism) | |
| Mounting hole diameter | 7.00 mm (ø) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
