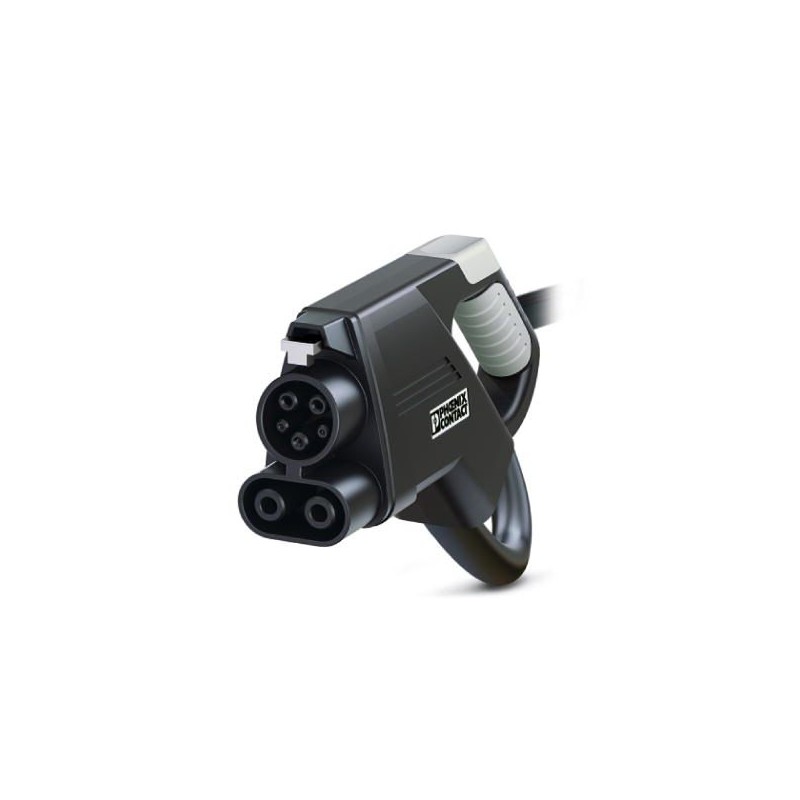

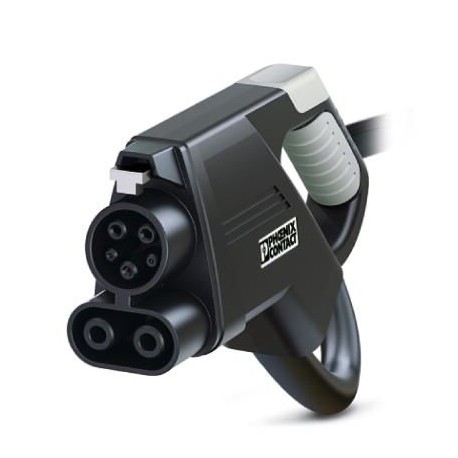

EV-T1L2CC-DC60A-4,0M6ASBK01
1627762
PHOENIX_CONTACT
1
DC charging cable
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1627762 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
GTIN | 4055626352299 |
Weight per Piece (excluding packing) | 5,000.000 g |
Custom tariff number | 85444290 |
Country of origin | DE (Germany) |
Product type | DC charging cable with vehicle connector, open cable end |
---|---|
Standards/regulations | SAE J1772 |
IEC 62196-3 | |
Charging standard | CCS type 1 |
Combined Charging System | |
Charging mode | Mode 4 |
Vehicle connector width | 67.90 mm |
---|---|
Vehicle connector height | 140.80 mm |
Vehicle connector depth | 260.00 mm |
Conductor length | 4 m |
4 m | |
Stripping length | 130 mm ±20 mm |
Ambient temperature (operation) | -30 °C ... 50 °C |
---|---|
Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Max. altitude | 5000 m (above sea level) |
Degree of protection | 3R (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
Maximum charging power | 36 kW |
---|---|
Number of power contacts | 3 (PE, DC+, DC-) |
Rated current of power contacts | 60 A |
Rated voltage for power contacts | 600 V DC |
Number of signal contacts | 2 (CP, CS) |
Rated current for signal contacts | 2 A |
Rated voltage for signal contacts | 30 V AC |
Type of signal transmission | Pulse width modulation with modulated Powerline communication according to ISO/IEC 15118 / DIN SPEC 70121 |
Note on the connection method | Crimp connection, cannot be disconnected |
Resistor coding | 480 Ω (Lever actuated) |
150 Ω (Lever not actuated) | |
Temperature monitoring | 2x Pt 1000 |
Design line | Standard |
---|---|
Housing color | black |
Mating face color | black |
Color handle area | gray |
Actuating element color | gray |
Color protective cap | black |
Label | 14.1 mm x 44.8 mm (customer logo on request) |
Housing material | Plastic |
---|---|
Material handle area | Soft plastic |
Actuating lever material | Metal |
Material mating face | Plastic |
Flammability rating | V0 |
Material surface of contacts | Ag |
Cable structure | 3 x 6 AWG + 3 x 2 x 18 AWG |
---|---|
Wiring standards/regulations | UL 62 |
FFSO7.E343212 | |
External cable diameter | 27 mm ±0.4 mm |
Type of conductor | straight |
Outer sheath, material | TPE |
External sheath, color | black |
Minimum bending radius | 405 mm (15 x diameter) |
Type of sensor | Pt 1000 |
---|---|
Standards/regulations | DIN EN 60751 |
Recommended measured current | 1 mA (1 V at 0°C) |
Tolerance at the sensor with the recommended measured current | ±1K |
Temperature range | -50 °C ... 130 °C |
Temperature coefficient (TCR) | 3850 ppm/K |
Long-term stability (max. R0-Drift) | 0.06 % (After 1000 hours at 130°C) |
Shutdown temperature | 90 °C equivalent to a Pt 1000 value of 1346.5 Ω |
China RoHS | Environmentally Friendly Use Period = 10; |
---|---|
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 5 Mbytes |
