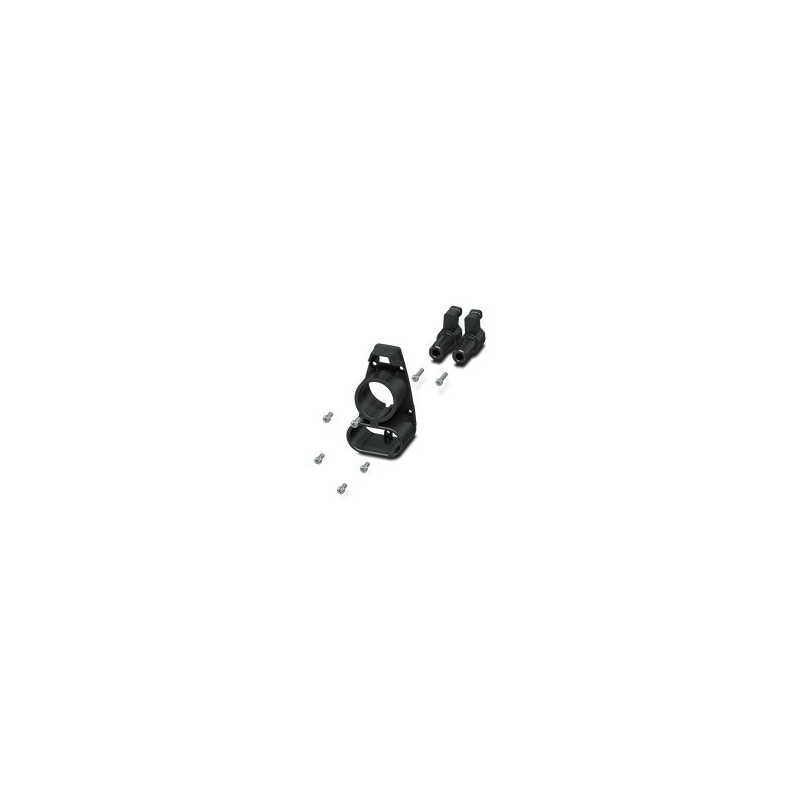

EV-T1CCS-MF-M4X10-CTS 1281251 PHOENIX CONTACT CHARX connect, Repair Kit, with replaceable plug-in face frame..
EV-T1CCS-MF-M4X10-CTS
1281251
PHOENIX_CONTACT
CHARX connect, Repair Kit, with replaceable plug-in face frame, with 5 units of M4X10 countersunk head screws with torque safety drive, with DC contact fastening with integrated front part of the DC contacts and their temperature sensors, for replacement of the plug-in face frame of the vehicle charging connectors, Combined Charging System, High Power Charging, HPC CCS Type 1, IEC 62196-3-1, SAE J1772, HPC-Line, Replacement without emptying the coolant
CHARX connect professional, Repair kit, Accessories, with DC contact holder with integrated front part of the DC contacts, with replaceable mating face frame, with 5x M4X10 flat-head screws with Torx safety drive (IPR TORX PLUS), for replacement of the mating face frame of vehicle charging connectors, CCS type 1, IEC 62196-3-1, SAE J1772, Screw mounting, housing: black, Replacement without draining the coolant
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | Replacement without draining the coolant |
| General | The vehicle connector housing does not have to be opened in order to replace the mating face frame. |
| Product type | Repair kit |
| Product family | CHARX connect professional |
| Application | for replacement of the mating face frame of vehicle charging connectors |
| Type | Accessories |
| Design | with DC contact holder with integrated front part of the DC contacts |
| with replaceable mating face frame | |
| with 5x M4X10 flat-head screws with Torx safety drive (IPR TORX PLUS) | |
| Technology | Combined Charging System |
| High Power Charging | |
| Charging standard | CCS type 1 |
| Charging mode | Mode 4 |
| Cross section AWG | (converted acc. to IEC) |
| Color (Housing) | black (9005) |
| Material (Housing) | Plastic |
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Standards | |
| Standards/regulations | IEC 62196-3-1 |
| SAE J1772 | |
| Mounting type | Screw mounting |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 5 Mbytes |
|
