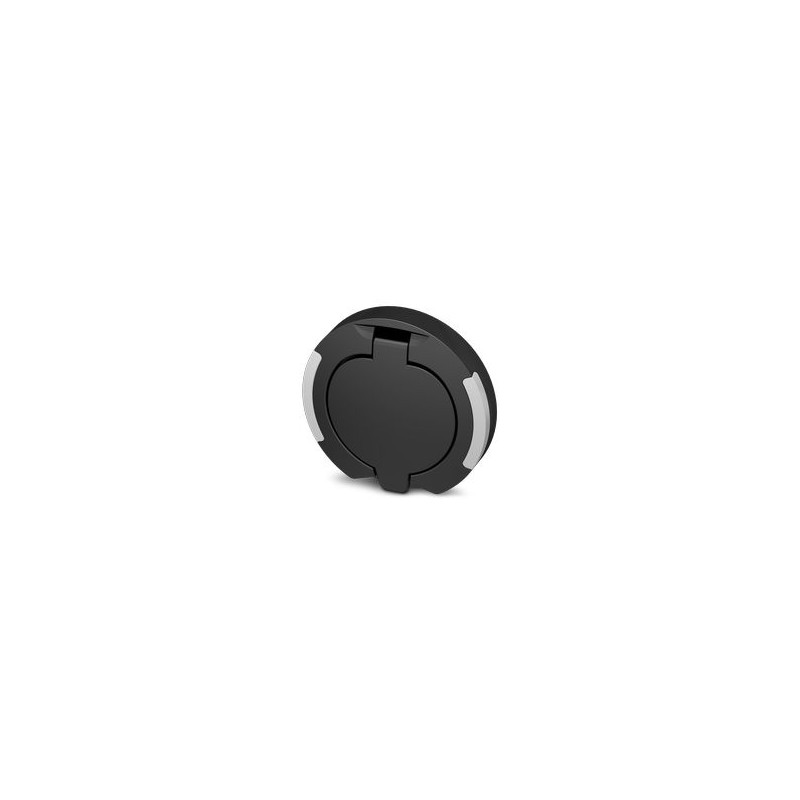

EV-T2SOCR-PC-WL 1531953 PHOENIX CONTACT CHARX connect modular, Type 2, Protective cap, Accessories, Premium,..
EV-T2SOCR-PC-WL
1531953
PHOENIX_CONTACT
CHARX connect modular, Type 2, Protective cap, Accessories, Premium, round, Front mounting, M5 thread, with self-closing mechanism, With LED (common cathode connection), for installation in infrastructure sockets, Without logo, IEC 62196-2
CHARX connect modular, Protective cap, round, Accessories, Premium, with self-closing mechanism, With LED (common cathode connection), for installation in infrastructure sockets, Type 2, IEC62196-2, Front wall mounting, M5 thread, Without logo
CHARX connect modular, Protective cover, circular, Accessories, Premium, with self-locking mechanism, with LED (common cathode connection), for attaching to infrastructure charging sockets, Type 2, IEC 62196-2, Front mounting, M5 thread, Without logo
Industrial socket/plug applications > Accessories/spare parts for E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Design (Protective cover) | circular |
| Product type | Protective cover for Socket Outlet |
| Product family | CHARX connect modular |
| Application | for attaching to infrastructure charging sockets |
| Type | Accessories |
| Premium | |
| Design | with self-locking mechanism |
| with LED (common cathode connection) | |
| Compatibility | compatible with shutter, see accessories |
| Affixed logo | Without logo |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
| LED function | |
| Application | to display the charging status |
| Position | in the frame of the protective cover |
| Connection type | common cathode |
| Cross section AWG | (converted acc. to IEC) |
| Protective cover | |
| Dimensional drawing |  |
| Depth | 22.9 mm |
| Diameter | 109.2 mm |
| Bore dimensions | |
| Dimensional drawing |  |
| Width | 60 mm |
| Height | 60 mm |
| Type of cover movement | Self-locking |
| Ambient conditions | |
| Degree of protection (Protective cover) | IP54 |
| IK08 | |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-2 |
| Mounting type Protective cover | Front mounting (rear screw connection) |
| Fixing screws | M5 thread |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
