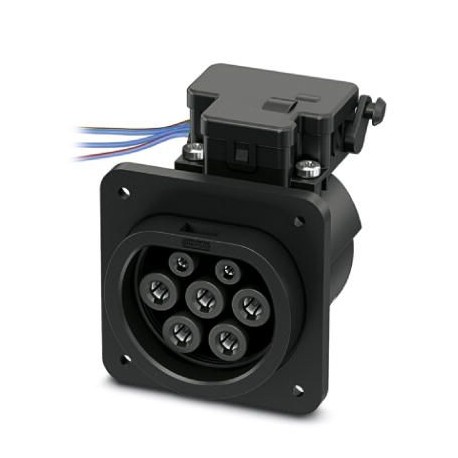

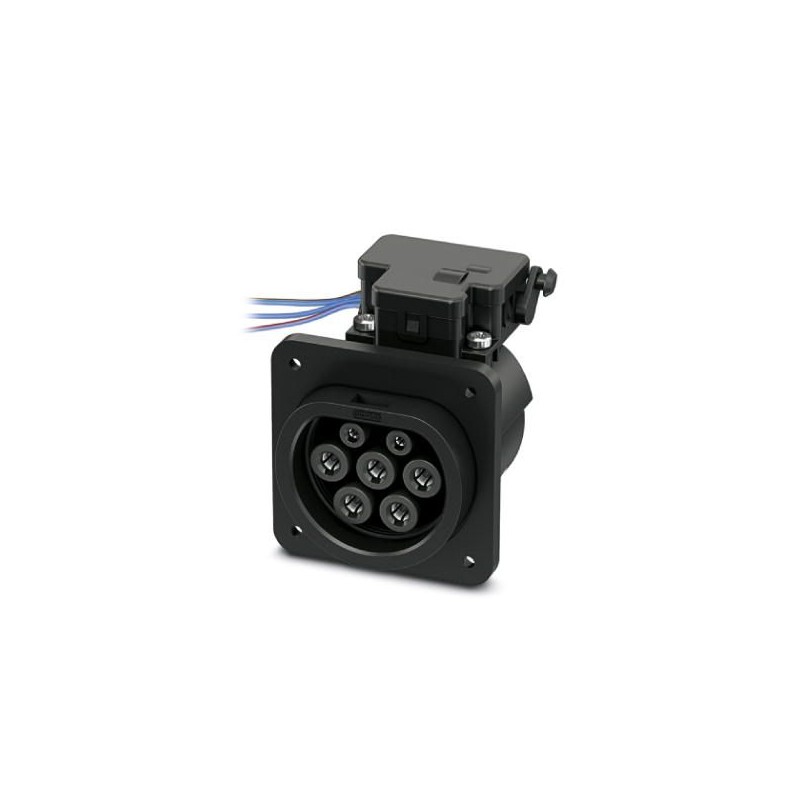

EV-GBM3SE12-1AC32A-2,0M6,0E10
1624387
PHOENIX_CONTACT
1
Connector charging infrastructure for charging with alternating current (AC) electric vehicles, compatible with charging connectors for infrastructures, GB/T, GB/T 20234.2,32 A / 250 V (AC), 12 V Actuator lock, single Conductors, Length: 2 m, Thread: M5
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1624387 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
GTIN | 4055626275253 |
Weight per Piece (excluding packing) | 620.000 g |
Product type | Infrastructure Socket Outlet for charging electric vehicles with alternating current (AC), compatible with Infrastructure Plugs |
---|---|
Type | Rear protective cover screw connection |
Standards/regulations | GB/T 20234.2-2015 |
Charging standard | GB/T |
Charging mode | Mode 3, Case B |
Note on the connection method | Crimp connection, cannot be disconnected |
Height | 96 mm |
---|---|
Width | 75 mm |
Depth | 76.2 mm |
Bore dimensions | 60 mm x 60 mm |
Conductor length | 2 m (AC cables) |
0.5 m (Locking actuator cables) | |
Cable structure | 3x 6.0 mm² + 2x 0.5 mm² |
Type of conductor | Single wires |
Ambient temperature (operation) | -30 °C ... 50 °C |
---|---|
Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Max. altitude | 5000 m (above sea level) |
Degree of protection | IP55 (plugged in) |
IP55 (with protective cover, see accessories) |
Maximum charging power | 7 kW |
---|---|
Type of charging current | AC single-phase |
Number of phases | 1 |
Number of power contacts | 3 (L1, N, PE) |
Rated current of power contacts | 32 A |
Rated voltage for power contacts | 250 V AC |
Number of signal contacts | 2 (CP, CC) |
Rated current for signal contacts | 2 A |
Rated voltage for signal contacts | 30 V AC |
Type of signal transmission | Pulse width modulation |
Note on the connection method | Crimp connection, cannot be disconnected |
Insertion/withdrawal cycles | > 10000 |
---|---|
Insertion force | < 100 N |
Withdrawal force | < 100 N |
Possible mounting positions | Rear panel mounting |
---|---|
Restrictions to mounting position | Only 0 to 90 degree frontal inclination possible, see figure |
Mounting position of the locking actuator | Top center |
Required installation depth | < 5 mm (Rear panel mounting) |
Max. wall thickness | > 57 mm (Rear panel mounting) |
Mounting hole diameter | 7.00 mm (ø) |
Locking type | Locking in the inserted state with a locking mechanism |
---|---|
Locking voltage | 12 V |
Locking detection | available |
Mechanical emergency release | available |
Typical power supply at the motor | 12 V |
---|---|
Possible power supply range at the motor | 9 V ... 16 V |
Typical motor current for locking | 0.2 A |
Max. reverse current of the motor | 1 A |
Max. dwell time with reverse current | 1000 ms |
Recommended adaptation time | 600 ms |
Pause time after entry or exit path | 3 s |
Maximum voltage for locking detection | 30 V |
Service life | > 10000 load cycles |
Ambient temperature (operation) | -30 °C ... 50 °C |
Length of cable | 0.5 m |
China RoHS | Environmentally Friendly Use Period = 10; |
---|---|
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
