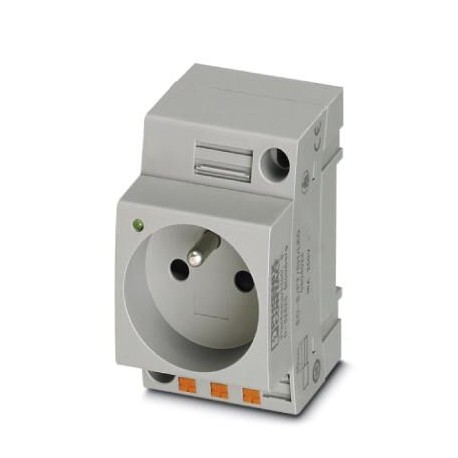

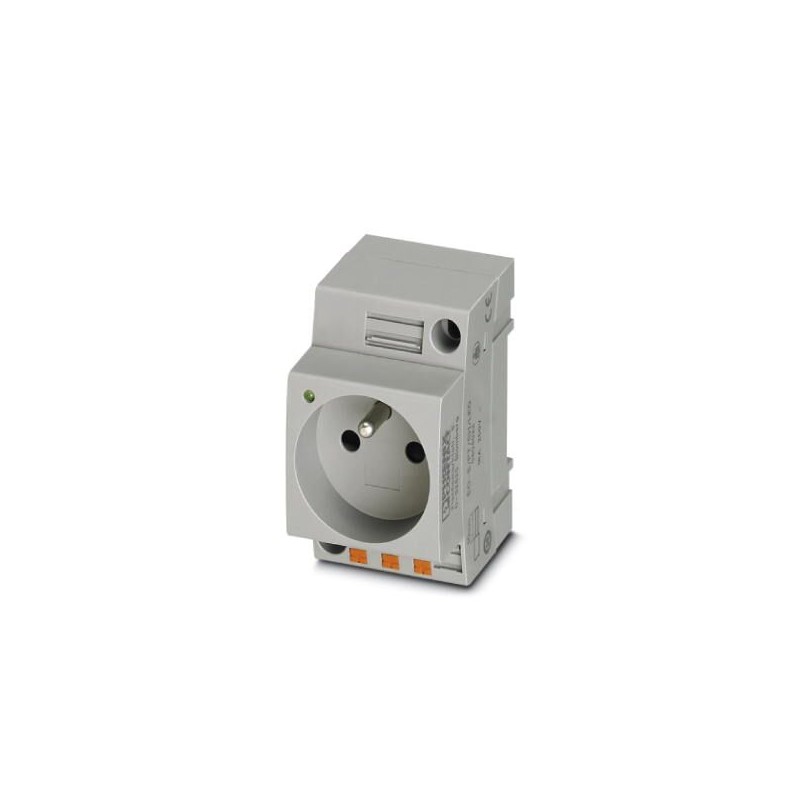

EO-E/PT/SH/LED 0804022 PHOENIX CONTACT Socket, Pin connector pattern type E, Push-in spring connection, for ..
EO-E/PT/SH/LED
0804022
PHOENIX_CONTACT
5
Socket, Pin connector pattern type E, Push-in spring connection, for France and other countries, with extended touch proofness/shutter, LED display, gray, for mounting on a DIN rail in the service interface or direct mounting, 250 V AC, 16 A, -20 °C, 60 °C, NF C61-314
Power socket, Type E plug-in face, Push-in spring connection, for France and other countries, with extended contact protection/safety device, light indication, grey, for rail mounting at the service interface or direct mounting, 250 VAC, 16 A, -20 °C, 60 °C, NFC61-314
Devices for distribution board-/surface mounting > Socket outlet for distribution board
CABINET add-on
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 0804022 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 565 (C-3-2019) |
| GTIN | 4055626225647 |
| Custom tariff number | 85366990 |
General
| Nominal voltage UN | 250 V AC (50 Hz) |
|---|---|
| Nominal current IN | 16 A |
| Status display | Yes |
| Contact material | CuZn37 |
| Color | gray |
| 7042 | |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Standards/regulations | NF C61-314 |
| Country ID | France |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Connection method | Push-in spring connection |
Standards and Regulations
| Standards/regulations | NF C61-314 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 4.0 | 27142300 |
|---|---|
| eCl@ss 4.1 | 27142300 |
| eCl@ss 5.0 | 27142300 |
| eCl@ss 5.1 | 27142300 |
| eCl@ss 6.0 | 27142300 |
| eCl@ss 7.0 | 27142305 |
| eCl@ss 8.0 | 27142305 |
| eCl@ss 9.0 | 27142305 |
