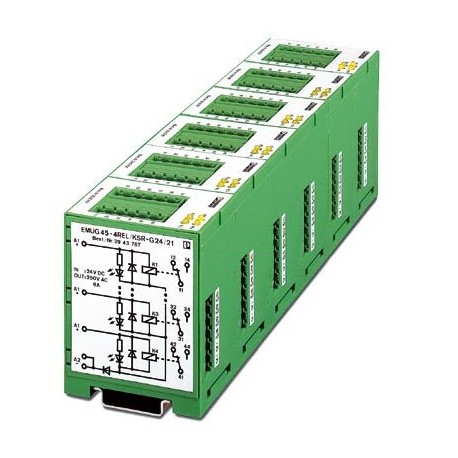

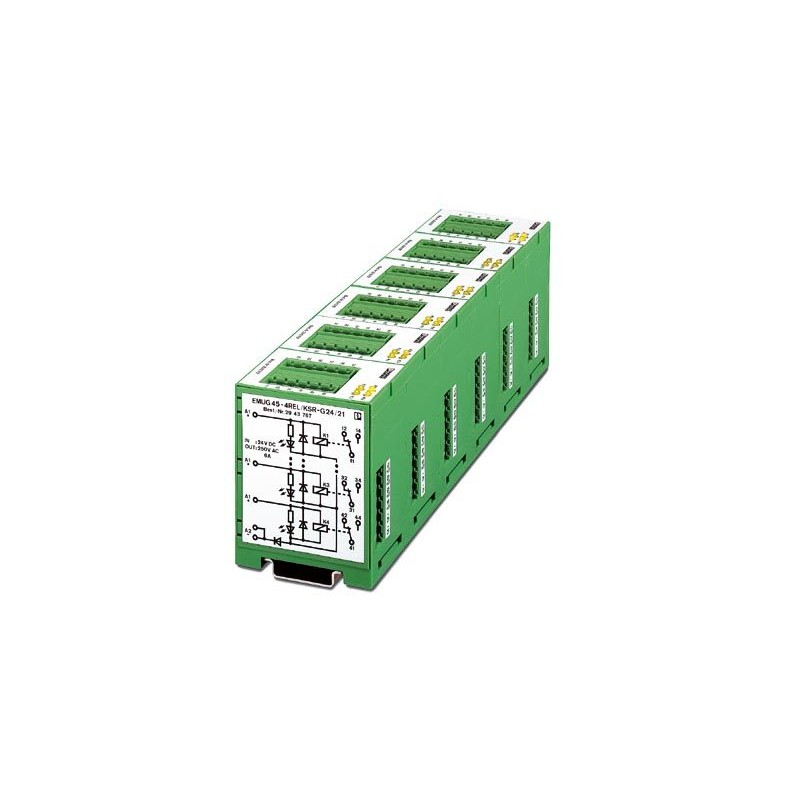

EMUG 45- 4REL/KSR-G 24/21 2943767 PHOENIX CONTACT Multiple relay module
EMUG 45-4REL/KSR-G 24/21
2943767
PHOENIX_CONTACT
5
Product on demand only, returns will not be accepted.
Multiple relay module
Multi-channel relay module with 4 soldered mini-switching relays for DC voltage, with light indication and 1 switched contact respectively, contact for medium to high powers, input voltage 24 V DC
Relays > Switching relay
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2943767 |
|---|---|
| Packing unit | 5 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918081317 |
| Weight per Piece (excluding packing) | 14.000 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Coil side
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Typical input current at UN | 21 mA |
| Typical response time | 7 ms |
| Typical release time | 11 ms |
| Protective circuit | Damping diode, polarity protection Damping diode, polarity protection diode |
| Operating voltage display | yes |
| Power dissipation for nominal condition | 0.5 W |
Contact side
| Contact type | Single contact, 1-PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Maximum inrush current | 8 A |
| Limiting continuous current | 6 A |
| Interrupting rating (ohmic load) max. | 95 W (at 24 V DC) |
| 50 W (at 48 V DC) | |
| 45 W (at 60 V DC) | |
| 35 W (at 110 V DC) | |
| 55 W (at 220 V DC) | |
| 1500 VA (for 250 V AC) |
General
| Test voltage relay winding/relay contact | 2.5 kV AC (50 Hz, 1 min.) |
|---|---|
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 107cycles |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Net weight (SAP) | 14 g |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| IEC 60664A | |
| DIN VDE 0110 | |
| DIN VDE 0109-11, draft | |
| DIN EN 50178/VDE 0160 | |
| IEC 60255/DIN VDE 0435 (in relevant parts) | |
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
| Feature Name | Feature Value |
|---|---|
| Complete with socket (EF003359) | Yes |
| With detachable clamps (EF003340) | No |
| With LED indication (EF005950) | Yes |
| Rated control supply voltage DC (EF003980) | 19.2 V |
| Voltage type for actuating (EF008242) | DC |
| Drive, polarization (EF003355) | Polarized |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as change-over contact (EF008257) | 1 |
| Type of switch contact (EF003358) | Single contact |
| With forced-guided contacts (EF003357) | No |
| Material of contact insert (EF008521) | Other |
| Material of contact surface (EF004020) | Untreated |
| Nominal current (EF000001) | 0.021 A |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 60 mm |
| Depth (EF000049) | 79 mm |
