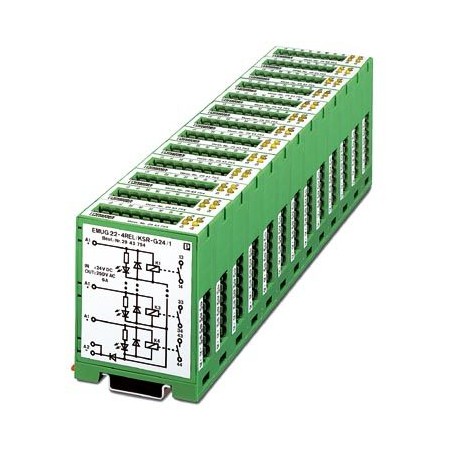

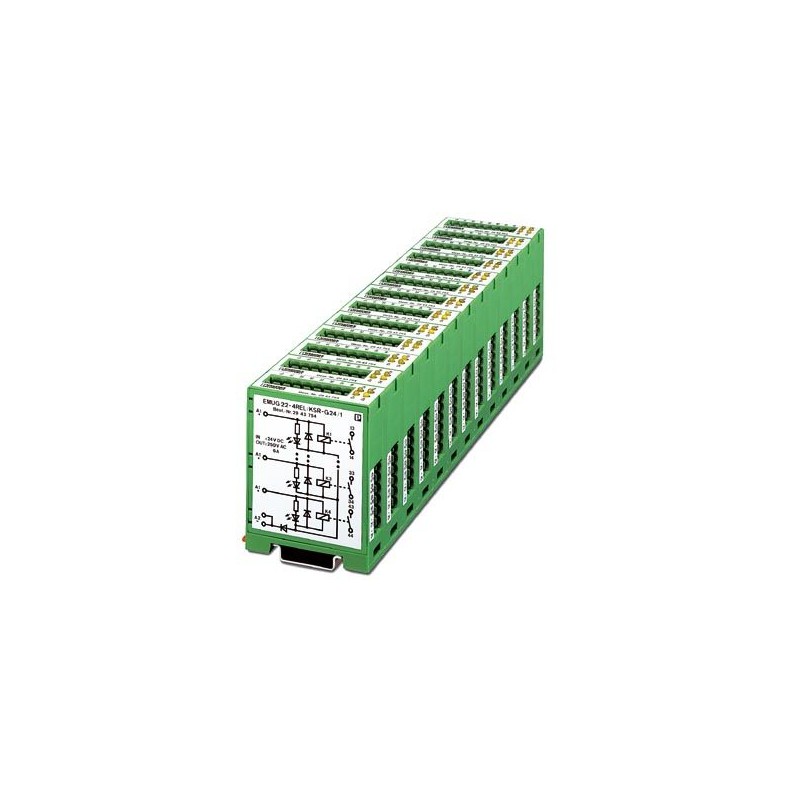

EMUG 22- 4REL/KSR-G 24/ 1 2943754 PHOENIX CONTACT Multiple relay module
EMUG 22- 4REL/KSR-G 24/ 1
2943754
PHOENIX_CONTACT
Multiple relay module
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2943754 |
|---|---|
| Packing unit | 5 pc |
| GTIN | 4017918081300 |
| Weight per Piece (excluding packing) | 82.600 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Coil side
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Typical input current at UN | 12 mA |
| Typical response time | 6 ms |
| Typical release time | 10 ms |
| Protective circuit | Damping diode, polarity protection Damping diode, polarity protection diode |
| Operating voltage display | yes |
| Power dissipation for nominal condition | 0.29 W |
Contact side
| Contact type | Single contact, 1 N/O contact |
|---|---|
| Type of switch contact | Single contact |
| Contact material | Silver cadmium oxide (AgCdO) |
| Maximum switching voltage | 250 V AC/DC |
| Maximum inrush current | 6 A |
| Limiting continuous current | 6 A |
| Interrupting rating (ohmic load) max. | 144 W (at 24 V DC) |
| 70 W (at 48 V DC) | |
| 55 W (at 60 V DC) | |
| 50 W (at 110 V DC) | |
| 50 W (at 220 V DC) | |
| 1500 VA (for 250 V AC) |
General
| Test voltage relay winding/relay contact | 2.5 kV AC (50 Hz, 1 min.) |
|---|---|
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 107cycles |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Net weight (SAP) | 82.6 g |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Standards/regulations | IEC 60664 |
| IEC 60664A | |
| DIN VDE 0110 | |
| DIN VDE 0109-11, draft | |
| DIN EN 50178/VDE 0160 | |
| IEC 60255/DIN VDE 0435 (in relevant parts) | |
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN .pdf | 28 Mbytes |
|
