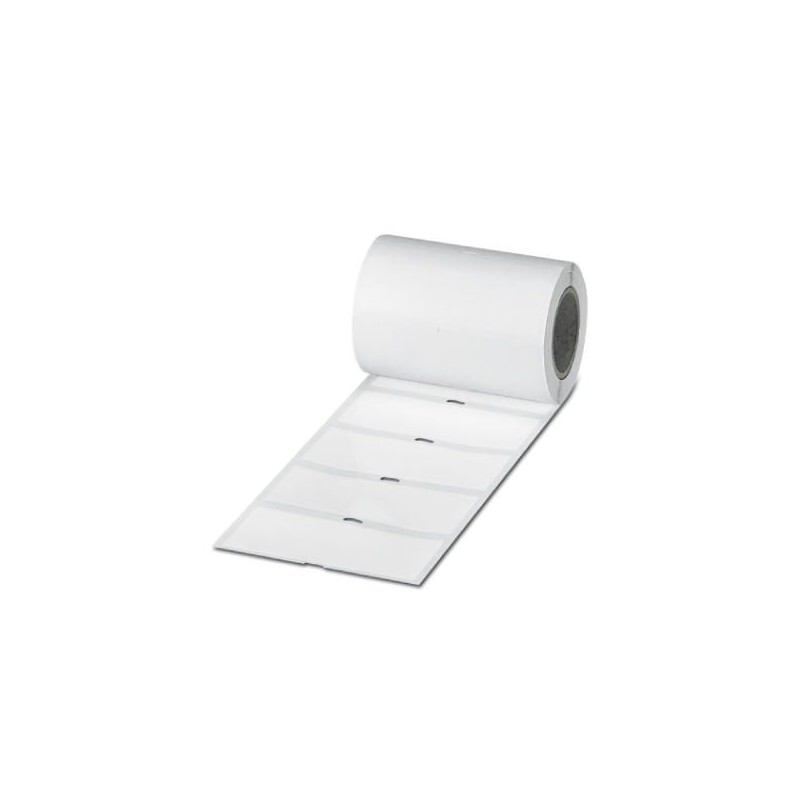

EML (100X40)R CUS 0802698 PHOENIX CONTACT Label
EML (100X40)R CUS
0802698
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Label
Label, available: by lines, white, labeled according to customer's instructions, mounting class: glued, usable surface: 100 x 40 mm
Auxiliary material > Labelling material
CABINET add-on
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 0802698 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 272 (C-5-2013) |
| GTIN | 4046356857130 |
| Weight per Piece (excluding packing) | 1.990 g |
| Custom tariff number | 49119900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 150 °C |
|---|---|
| Ambient temperature (assembly) | > 5 °C |
| Recommended storage conditions | 21°C/50% relative humidity. Storage in the original packaging is recommended prior to processing. |
General
| Color | white |
|---|---|
| Components | free from silicone and halogen |
| Material | Polyester |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels per row | 1 |
| Adhesive | Acrylic |
| Printability | Thermal transfer |
| Device | 5146477 THERMOMARK ROLL |
| 5146723 THERMOMARK ROLL X1 | |
| 5146231 THERMOMARK X1.2 | |
| Ink ribbon | 5145384 THERMOMARK-RIBBON 110 |
| 0829544 THERMOMARK-RIBBON 110 BU | |
| 0829542 THERMOMARK-RIBBON 110 GN | |
| 0829543 THERMOMARK-RIBBON 110 RD | |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Alternating condensation climate with SO2 test specification | following DIN 50018:2013-05 |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Condensation test result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Foil strength | 50 µm |
| Adhesive strength | 20 µm |
| Marking mounting type | adhesive |
| File number | UL-MH48542 / PC-010 (white foil) |
Standards and Regulations
| Connection in acc. with standard | UL |
|---|---|
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Classifications
eCl@ss 10.0.1 27400629 eCl@ss 4.0 24190219 eCl@ss 4.1 24190219 eCl@ss 5.0 27149103 eCl@ss 5.1 27141100 eCl@ss 6.0 27149100 eCl@ss 7.0 27149129 eCl@ss 8.0 27149129 eCl@ss 9.0 27400629
UNSPSC 6.01 30211811 UNSPSC 7.0901 39121410 UNSPSC 11 39121410 UNSPSC 12.01 39121410 UNSPSC 13.2 39131504
