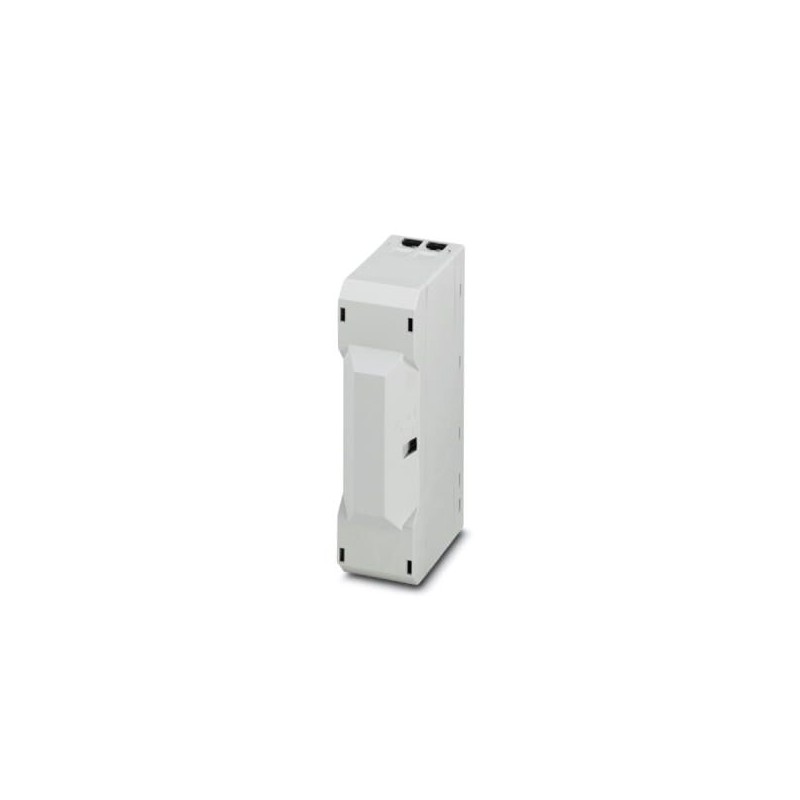

EM-CPS-TB3/125A 1070299 PHOENIX CONTACT Connection module with box terminals for conductors from 6 to 50 mm²..
EM-CPS-TB3/125A
1070299
PHOENIX_CONTACT
4
Connection module with box terminals for conductors from 6 to 50 mm², 3-pos., maximum 125 A
Connection module with frame-type terminals for conductors from 6 to 50 mm², 3 poles, maximum 125 A
Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1070299 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 52 (C-5-2019) |
| GTIN | 4055626749808 |
| Custom tariff number | 85369010 |
General
| Rated voltage | 690 V AC (IEC) |
|---|---|
| 600 V AC (UL) | |
| Rated current | 125 A (IEC) |
| 100 A (UL) | |
| Rated peak withstand current | 10 kA |
| Max. current carrying capacity | 125 A (IEC) |
| Degree of protection | IP20 |
Connection data
| Connection name | Terminal points |
|---|---|
| Conductor cross section solid | 6 mm² ... 50 mm² |
| Conductor cross section AWG | 10 ... 1 |
Standards and Regulations
| Standards/regulations | IEC 61439-1 |
|---|---|
| IEC 60999-1 | |
| IEC 60999-2 | |
| GB/T 7251.1 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
