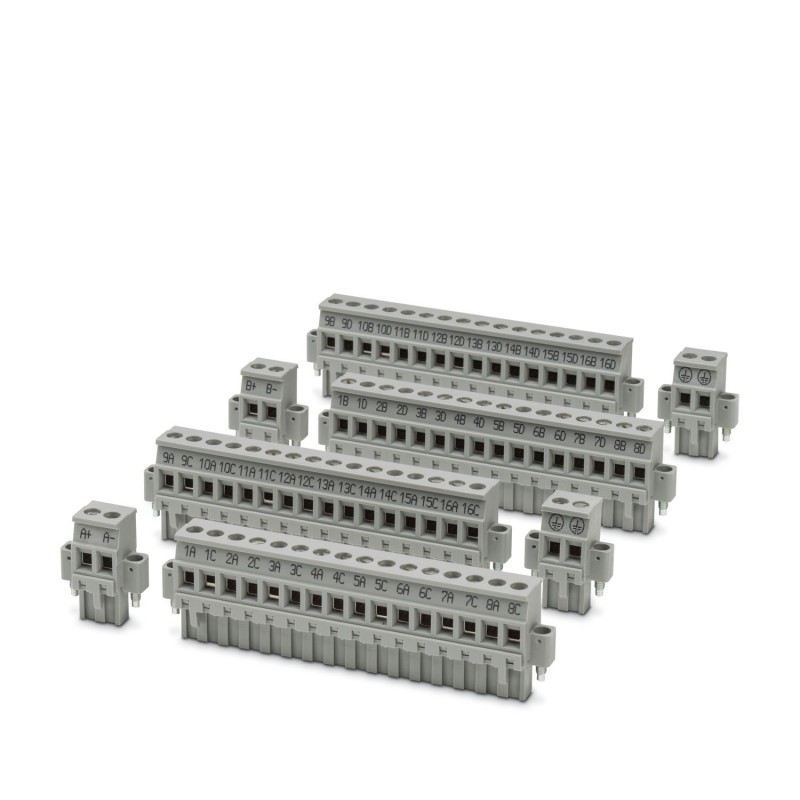

PHOENIX CONTACT  VIP/S/MVSTBR/KIT CX 2910416 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

VIP/S/MVSTBR/KIT CX 2910416 PHOENIX CONTACT Connector set

Reference: VIP/S/MVSTBR/KIT CX

Code: 2910416

Manufacturer: PHOENIX CONTACT

Product on demand only, returns will not be accepted.

Description:

Connector set
Connector set for use with VIP/MSTB/D50M/BASE..., screw connections
Plug kit for use with VIP/MSTB/D50M/BASE..., screw connections

Categories:

  • Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
  • PHOENIX CONTACT > INTERFACE Components (IF)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Technical data

Product properties
Product typePCB connector
Product familyVIP I/O-Marshalling

Electrical properties
Max. permissible current10 A
Nominal voltage UN300 V (maximum continuous operating voltage)

Connection data
Field level
Connection methodScrew connection
Stripping length7 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Tightening torque0.5 Nm ... 0.6 Nm

Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Housing insulation materialPA

Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C

ETIM for 2910416 Low-voltage industrial controls and switchgear (EC002498)

Feature nameType of accessory/spare part (EF000215)
Feature valueOther
Feature nameAccessory (EF013236)
Feature valueYes
Feature nameSpare part (EF013237)
Feature valueNo
