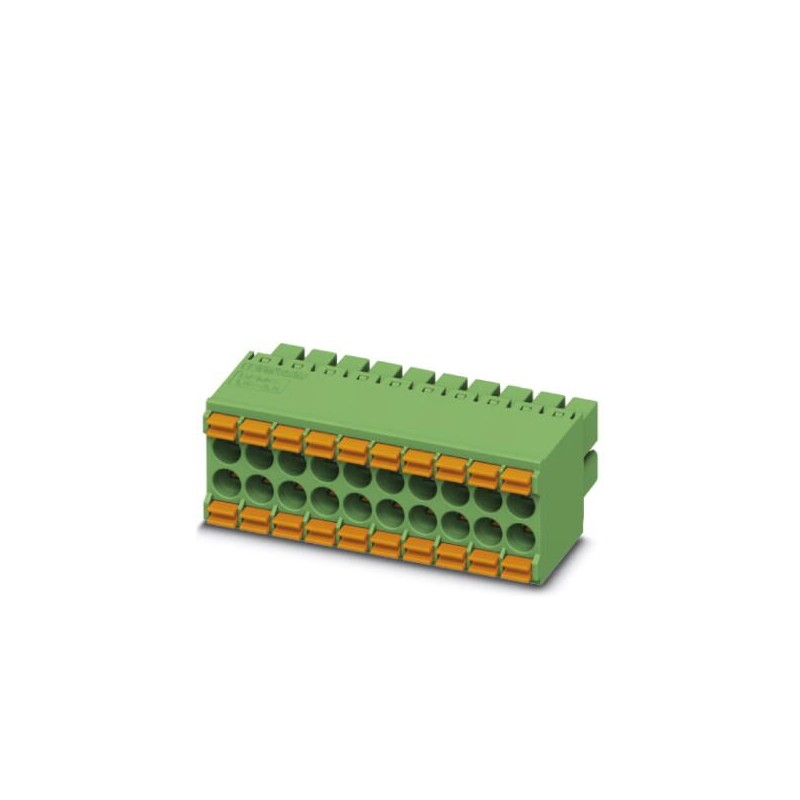

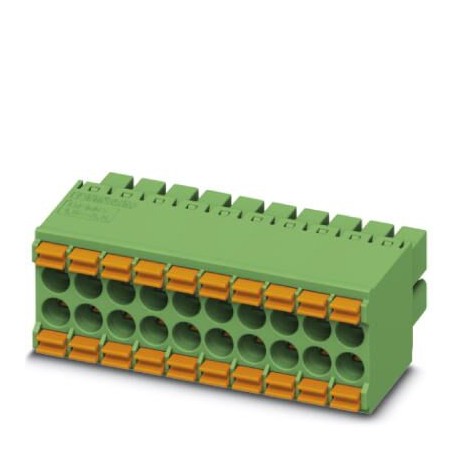

DFMC 1,5/ 6-ST-3,5 BKBDWH:49-64Q 1086247 PHOENIX CONTACT Connector for printed circuit board, nominal curren.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DFMC 1,5/ 6-ST-3,5 BKBDWH:49-64Q 1086247 PHOENIX CONTACT Connector for printed circuit board, nominal curren..

DFMC 1,5/ 6-ST-3,5 BKBDWH:49-64Q

1086247

PHOENIX_CONTACT

1000

Connector for printed circuit board, nominal current: 8 A, number of poles: 6, pitch: 3.5 mm, connection type: spring clamp push-in, color: black, surface contacts: Tin

More details


Connectors > Cable connector

PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Data commercial

Key orderOne million eighty six thousand two hundred forty seven
Packing unit50 pcs
Key sellingAAAEAF -
Minimum order quantity1000 pcs
EANFour trillion fifty five billion six hundred twenty six million eight hundred seventy eight thousand two hundred sixty three
Unit weight (excluding packaging)6,520 g
Tariff number tariffEighty five million three hundred sixty six thousand nine hundred ninety

Drawings

Diagrama

Diagram
Type: DFMC 1,5/...-ST-3,5 with DMC 1,5/...-G1-3,5 P20 THR

Diagrama

Diagram
Type: DFMC 1,5/..-ST-3,5 with DMCV 1,5/..-G1-3,5 P20 THR

Diagrama

Diagram
Type: DFMC 1,5/...-ST-3,5 with DMC 1,5/...-G1-3,5 P35

Diagrama

Diagram
Type: DFMC 1,5/...-ST-3,5 with DMCV 1,5/...-G1-3,5 P35

Back to top

Properties of the article

AbbreviationConnector for printed circuit board
Plug-in systemMINI COMBICON - DFMC 1,5
Type of contactFemale connection
Family of articlesDFMC 1,5/..-ST
Step3.5 mm
Number of polesSix
Type of connectionConnection by spring loaded push-in
Number of floorsTwo
Number of connectionsTwelve
Number of potentialTwelve
Back to top

Characteristic data electrical

Rated voltage160 V
Back to top

Ability conex.

Type of connectionConnection by spring loaded push-in
plug-inyes
Section of conductor rigid0,2 mm2 ... 1.5 mm2
Section of flexible conductor0,2 mm2 ... 1.5 mm2
Section of conductor AWG / kcmil24 ... 16
Section of flexible conductor with toe cap, without plastic sleeve0.25 mm2 ... 1.5 mm2
Section of flexible conductor with toe, with plastic sleeve0.14 mm2 ... 0.75 mm2
Length of peeling10 mm
Back to top

Directions on cutting edge

Clamp crimp recommended1212034 CRIMPFOX 6
Leading without collar is insulated, according to DIN 46228-1Section: 0.25 mm2; Length: 7 mm
Section: 0,34 mm2; Length: 7 mm
Section: 0.5 mm2; Length: 8 mm ... 10 mm
Section: 0.75 mm2; Length: 8 mm ... 10 mm
Section: 1 mm2; Length: 8 mm ... 10 mm
Section: 1.5 mm2; Length: 10 mm
Clamp crimp recommended1212034 CRIMPFOX 6
Leading with collar insulated, according to DIN 46228-4Section: 0.14 mm2; Length: 8 mm
Section: 0.25 mm2; Length: 8 mm ... 10 mm
Section: 0,34 mm2; Length: 8 mm ... 10 mm
Section: 0.5 mm2; Length: 8 mm ... 10 mm
Section: 0.75 mm2; Length: 10 mm
Back to top

Material data - contact

ObservationAccording to WEEE/RoHS, without filaments according to IEC 60068-2-82/JEDEC JESD 201
Material contactCu alloy
Characteristics of the surfacetinning of malleable cast iron
Metal surface of the point of embornaje (top layer)Tin (4 - 8 ám Sn)
Metal surface area of contact (top layer)Tin (4 - 8 ám Sn)
Back to top

Material data - housing

IsolationPA
Group insulating materialI
CTI according to IEC 60112Six hundred
Class of flammability according to UL 94V0
Number of flammability of filaments GWFI according to en 60695-2-12Eight hundred fifty
Ignition temperature of filaments GWIT according to en 60695-2-13Seven hundred seventy five
Temperature test of the hardness for the balls according to en 60695-10-2125 °C
Back to top

Material data: drive element

IsolationPBT
CTI according to IEC 60112Six hundred
Class of flammability according to UL 94V0
Back to top

Product dimensions

Outline dimensions
Length [ l ]23,35 mm
Width [ w ]21,8 mm
Height [ h ]13,25 mm
Step3.5 mm
Height of building (height without the shank of soldering)13,25 mm
Average17.5 mm
Back to top

Indications of packing

Type of packagingpackaged in box
Packing unitFifty
Designation packing UnitsUnits
Back to top

Environmental conditions

Ambient temperature (storage / transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Room temperature (service)-40 °C ... 100 °C (in function of the curve derating)
Back to top

Connection and method of connection

Check the connection of conductorsThe stripped end of the conductor is the largest you can insert completely and without excessive force, into the opening of the point of embornaje.
The result of the testTest approved
Check: connect and drop multiple timesDIN EN 60999-1 (VDE 0609-1):2000-12
Test approved
Checking of damage in the conductors and looseningDIN EN 60999-1 (VDE 0609-1):2000-12
Test approved
Back to top

Tensile test

Tensile testDIN EN 60999-1 (VDE 0609-1):2000-12
Test approved
Section of the driver / type of driver / traction force0,2 mm2 / stiff / > 10 N
0,2 mm2 / flexible / > 10 N
1.5 mm2 / stiff / > 40 N
1,5 mm2 / flexible / > 40 N
Back to top

Mechanical testing according to the standards

Visual ControlTest passed DIN en 60512-1-1:2003-01
Check dimensionsTest passed DIN en 60512-1-2:2003-01
Resistance of printsTest passed DIN en 60068-2-70:1996-07
ResultTest approved
Specification of the testDIN EN 60512-13-2:2006-11
Number of cyclesTwenty five
Force to the plug by polo approx.3 N
Force when unplugging per pole approx.2 N
Polarization and codingTest passed DIN en 60512-13-5:2006-11
ResultTest approved
Specification of the testDIN EN 60512-15-1:2009-03
Strength trial-by-polo30 N
Back to top

Lines of flight and air spaces

Air spaces and lines of flightDIN EN 60664-1 (VDE 0110-1):2008-01
Specification of the testDIN EN 60664-1 (VDE 0110-1):2008-01
Voltage isolation design (III/3)160 V
Voltage isolation design (III/2)160 V
Voltage isolation design (II/2)320 V
Transient voltage design (III/3)2.5 kV
Transient voltage design (III/2)2.5 kV
Transient voltage design (II/2)2.5 kV
Minimum value of air gap - field inhomogéneo (III/3)1.5 mm
Minimum value of air gap - field inhomogéneo (III/2)1.5 mm
Minimum value of air gap - field inhomogéneo (II/2)1.5 mm
Minimum value of the line of flight (III/3)2 mm
Minimum value of the line of flight (III/2)0.8 mm
Minimum value of the line of flight (II/2)1.6 mm
Back to top

Electrical testing: function

Specification of the testDIN EN 60999-1 (VDE 0609-1):2000-12
Back to top

Temperature cycles

Specification of the testDIN EN 60999-1 (VDE 0609-1):2000-12
Test current (minimum cross-section)4 TO DC
Test current (maximum section)8 TO DC
Temperature cyclesOne hundred ninety two
Back to top

Mechanical testing (A)

Force to the plug by polo approx.3 N
Force when unplugging per pole approx.2 N
Requirement of impossibility of confusion when connecting >20 NTest approved
Portacontactos used requirement >20 NTest approved
Back to top

Checks resistance (B)

Specification of the testDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Contact resistance ROne2 mΩ
Cycles of plugTwenty five
Contact resistance RTwo2,3 mΩ
Voltage shock endurable level sea2,95 kV
Ac voltage bearable1,39 kV
Insulation resistance Pole-contiguous> 12 TΩ
Back to top

Essays on climate (D)

Specification of the testDIN EN ISO 6988:1997-03
Effort cold-40 °C/2 h
Thermal stress100 °C/168 h
Fatigue corrosion0,2 dmThreeSOTwoin 300 dmThree/40 °C/1 cycle
Voltage shock endurable level sea2,95 kV
Ac voltage bearable1,39 kV
Back to top

Checks and environmental resistance (E)

Specification of the testDIN EN 61984 (VDE 0627):2009-11
Result-Degree of protection IP CodeProtection against contact of fingers with finger proof IP20
Back to top

Ratings

eCl@ss

eCl@ss 8.0Twenty seven million four hundred forty thousand three hundred nine
eCl@ss 9.0Twenty seven million four hundred forty thousand three hundred nine
Back to top

ETIM

ETIM 5.0EC002638
ETIM 6.0EC002638
ETIM 7.0EC002638
Back to top

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
