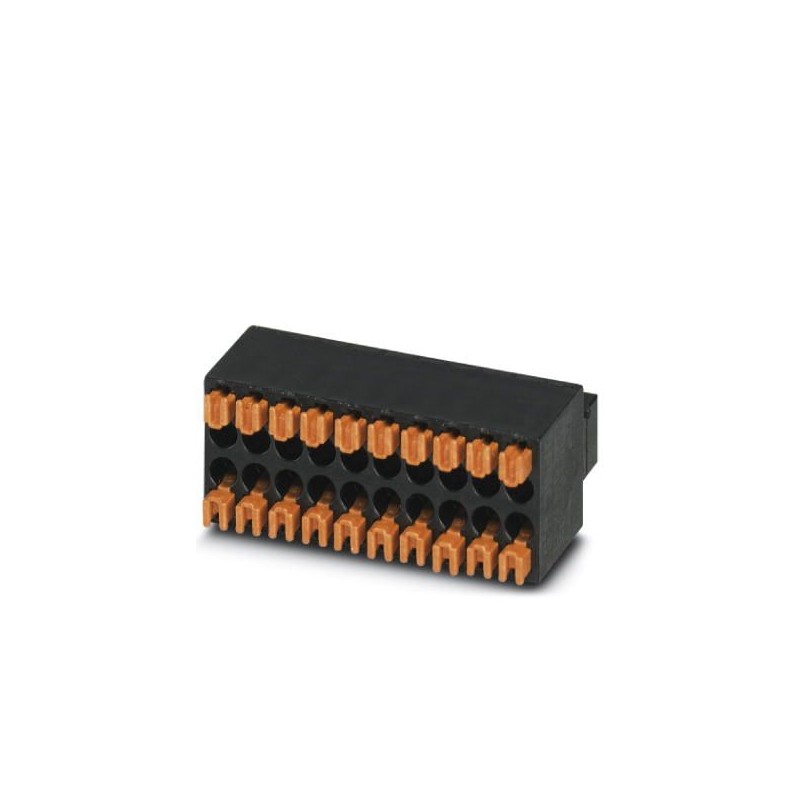

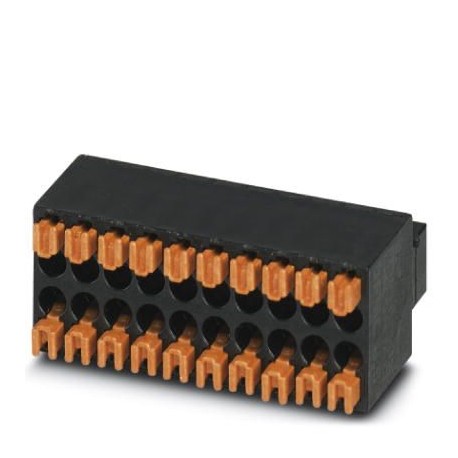

DFMC 0,5/ 2-ST-2,54 1844578 PHOENIX CONTACT Printed-circuit board connector
DFMC 0,5/ 2-ST-2,54
1844578
PHOENIX_CONTACT
100
Printed-circuit board connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1844578 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| GTIN | 4046356964241 |
| Weight per Piece (excluding packing) | 1.060 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | PCB connector |
|---|---|
| Plug-in system | MICRO COMBICON - DFMC 0,5 |
| Type of contact | Female connector |
| Range of articles | DFMC 0,5/..-ST |
| Pitch | 2.54 mm |
| Number of positions | 2 |
| Connection method | Push-in spring connection |
| Locking | without |
| Number of levels | 2 |
Electrical parameters
| Rated current | 6 A |
|---|---|
| Rated insulation voltage (III/2) | 160 V |
| Rated surge voltage (III/2) | 2.5 kV |
Connection capacity
| Conductor cross section solid | 0.14 mm² ... 0.5 mm² |
|---|---|
| Conductor cross section flexible | 0.14 mm² ... 0.5 mm² |
| Conductor cross section AWG / kcmil | 26 ... 20 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.34 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.14 mm² ... 0.25 mm² |
| Stripping length | 7 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | Selective coating |
| Metal surface terminal point (top layer) | Tin (5 - 7 µm Sn) |
| Metal surface terminal point (middle layer) | Nickel (1 - 3 µm Ni) |
| Metal surface contact area (top layer) | Gold (0.25 Au) |
| Metal surface contact area (middle layer) | Nickel (2 - 3 µm Ni) |
Material data - housing
| Insulating material | LCP |
|---|---|
| Insulating material group | IIIa |
| CTI according to IEC 60112 | 175 |
| Flammability rating according to UL 94 | V0 |
Material data – actuating element
| Insulating material | LCP |
|---|---|
| CTI according to IEC 60112 | 175 |
| Flammability rating according to UL 94 | V0 |
Dimensions for the product
| Length [ l ] | 15.85 mm |
|---|---|
| Width [ w ] | 5.58 mm |
| Height [ h ] | 10.5 mm |
| Pitch | 2.54 mm |
| Height (without solder pin) | 10.5 mm |
| Dimension a | 2.54 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 100 |
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Pull-out test
| Conductor cross section / conductor type / tensile force | 0.14 mm² / solid / > 10 N |
|---|---|
| 0.14 mm² / flexible / > 10 N | |
| 0.5 mm² / solid / > 20 N | |
| 0.5 mm² / flexible / > 20 N |
Air clearances and creepage distances
| Insulating material group | IIIa |
|---|---|
| Voltage | 32 V |
| Rated insulation voltage (III/3) | 32 V |
| Rated insulation voltage (III/2) | 160 V |
| Rated insulation voltage (II/2) | 160 V |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
Temperature cycles
| Specification | IEC 60999-1:1999-11 |
|---|---|
| Test current (minimum cross section) | 4 A AC |
| Test current (maximum cross section) | 6 A AC |
| Temperature cycles | 192 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
