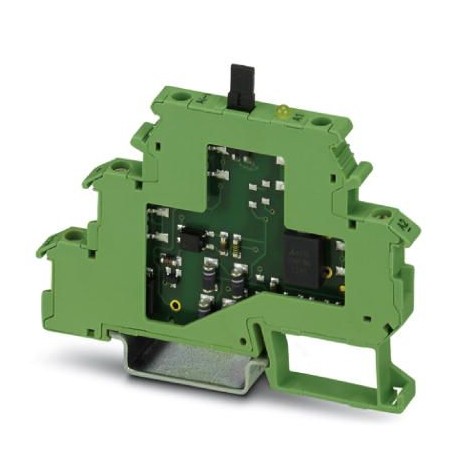

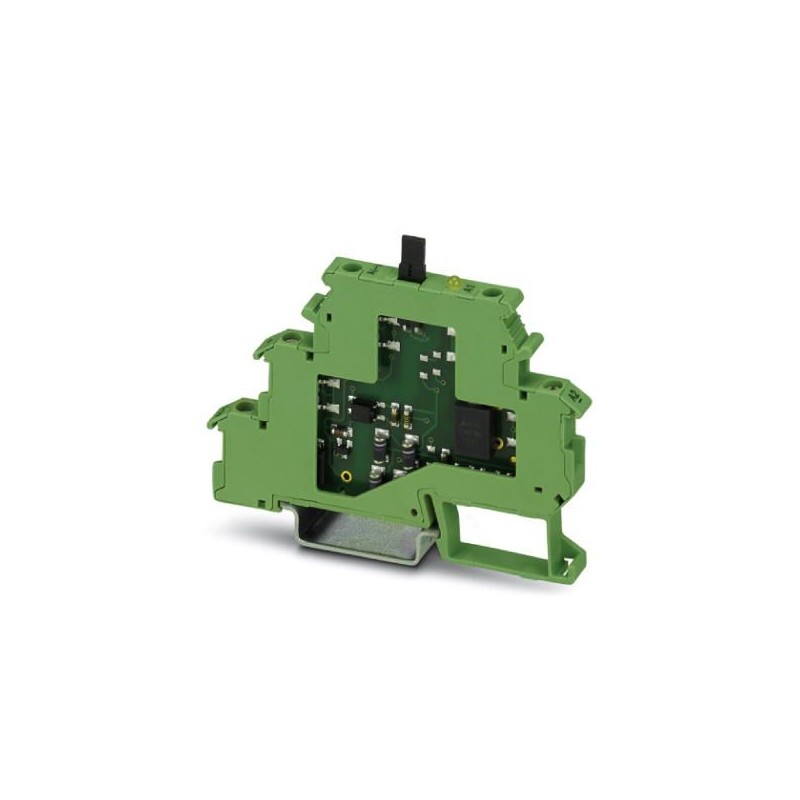

DEK-OE- 48DC/ 48DC/100/T 2940281 PHOENIX CONTACT Solid-state relay terminal block
DEK-OE- 48DC/ 48DC/100/T
2940281
PHOENIX_CONTACT
10
Solid-state relay terminal block
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2940281 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 71 (IF-2002) |
| GTIN | 4017918079987 |
| Weight per Piece (excluding packing) | 22.970 g |
| Custom tariff number | 85364190 |
| Country of origin | CN (China) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Input data
| Nominal input voltage UN | 48 V DC |
|---|---|
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Input voltage range | 43.2 V DC ... 52.8 V DC |
| Switching threshold "0" signal, voltage | ≤ 19 V |
| Switching threshold "1" signal voltage | ≥ 40 V |
| Typical input current at UN | 5 mA |
| Typical response time | 40 µs (delay) |
| Typical turn-off time | 40 µs (delay) |
| Status display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Protective circuit/component | Bridge rectifier |
| Transmission frequency | 30 Hz |
Output data
| Output voltage range | 3 V DC ... 48 V DC |
|---|---|
| Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | ≤ 0.9 V |
| Output circuit | 2-wire, floating |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
Connection data, input side
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Torque | 0.5 Nm |
Connection data, output side
| Connection name | Output side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Torque | 0.5 Nm |
General
| Note | The housing is open on one side. The appropriate cover is D-DEK 1,5 GN (2716949). |
|---|---|
| Test voltage input/output | 2.5 kV AC |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Operating mode | 100% operating factor |
| Standards/regulations | IEC 60664 |
| IEC 60664A | |
| DIN VDE 0110 | |
| Degree of pollution | 2 |
| Overvoltage category | III |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| IEC 60664A | |
| DIN VDE 0110 | |
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
