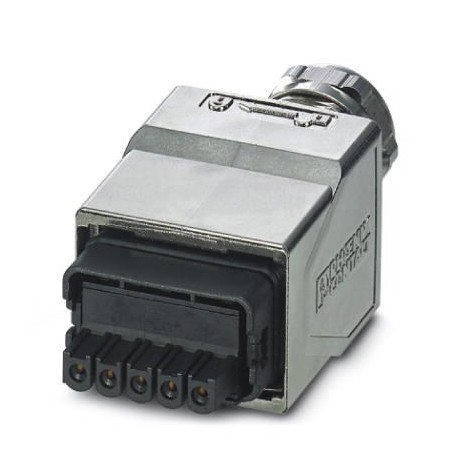

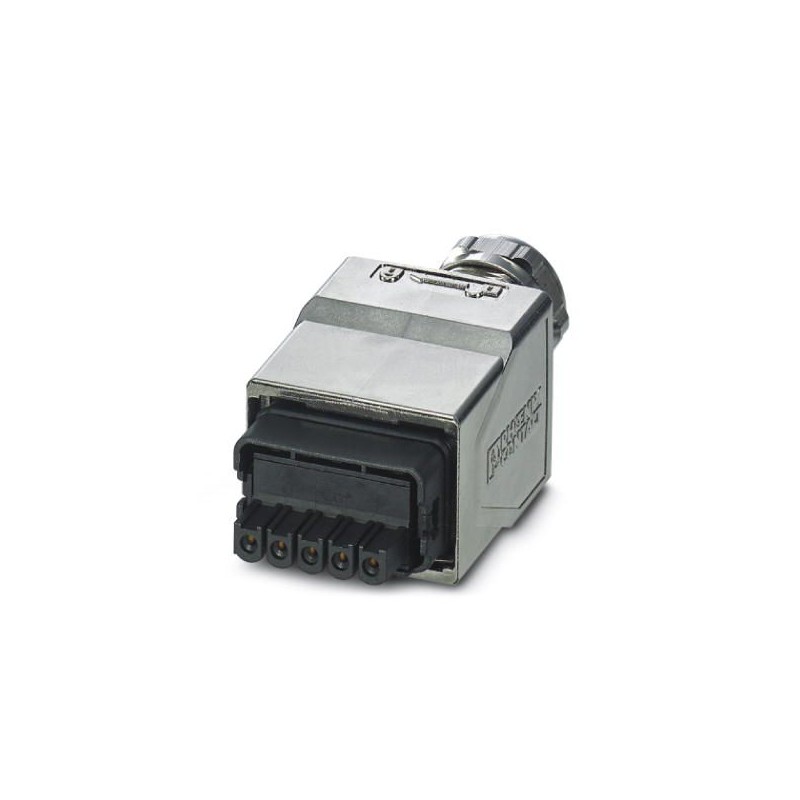

CUC-PPC-C2ZNI-SX/24FKP5 1421783 PHOENIX CONTACT Power connectors
CUC-PPC-C2ZNI-SX/24FKP5
1421783
PHOENIX_CONTACT
Power connectors
Power connector, construction: Variant 14, protection index: IP65/IP67, number of poles: 5, material: Zinc die-cast, connection cross-section: AWG 18-13, cable outlet: straight, Universal
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1421783 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 368 (C-2-2017) |
| GTIN | 4055626280349 |
| Weight per Piece (excluding packing) | 108.500 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection | IP65/IP67 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -10 °C ... 40 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
General data
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
|---|---|
| Rated current at 40°C | 16 A |
| Rated voltage | 24 V |
| Number of positions | 5 |
| Degree of pollution | 3 |
| Alternative short product description | MSTB connector |
| Locking type | Push Pull |
| Rated voltage (II/2) | 630 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage | 250 V |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Rated current | 16 A |
| Rated voltage (III/3) | 24 V |
| Conductor cross section | 0.75 mm² ... 2.5 mm² |
| Connection cross section AWG | 18 ... 13 |
| COMBICON connection data | 0.75 mm² 2.5 mm² 0.75 mm² 2.5 mm² 18 13 2.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.75 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 2.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.75 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 2.5 mm² |
| Contact material | Copper alloy |
| Contact carrier material | PA |
| Contact surface material | Gold over nickel |
| Housing material | Zinc die-cast |
Characteristics head 1
| Stripping length of the individual wire | 10 mm |
|---|---|
| Stripping length of the sheath | 40 mm |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027143424eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440101eCl@ss 8.027440101eCl@ss 9.027440101
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 31 mm |
| Height (EF000040) | 36 mm |
| Depth (EF000049) | 67 mm |
| Number of poles (EF001391) | 5 |
| Rated current In (EF008250) | 16 A |
| Rated voltage (EF000228) | 24 V |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Other |
| Housing material (EF001596) | Other |
| Type of locking (EF000208) | Push Pull |
| With protective conductor (EF007468) | No |
| Operating temperature (EF002393) | -40 °C |
Datasheet - PDF
