CM175-LG/H 35/BO/DB/GH BK S710

2202004

PHOENIX_CONTACT

10

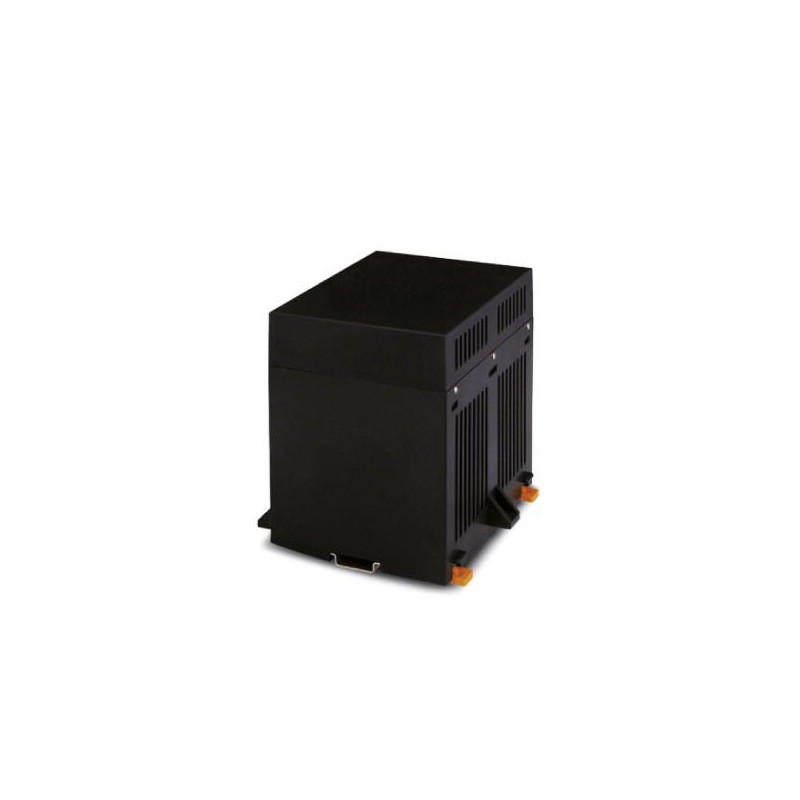

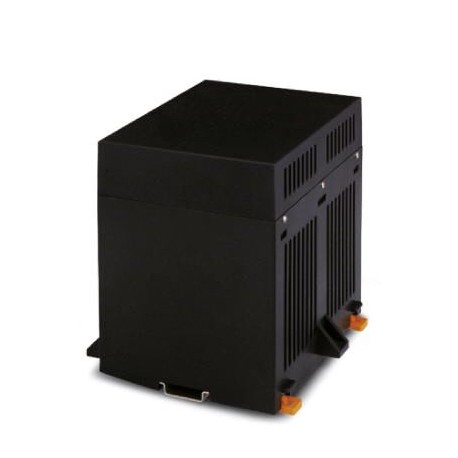

Electronic module, for PCB insertion, with a 35 mm tall covering hood

Housing, Full housing, width: 175 mm, depth: 125 mm, color: black

More details


Housing (HS)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Key Commercial Data

Orderkey2202004
Packing unit1
GTIN4046356963848
Custom tariff number85369010

Drawings

Dimensional drawing

Dimensional drawing
Dimension A: 155 mm; dimension B: 125 mm; dimension C: 175 mm

Dimensional drawing

Dimensional drawing

Dimensional drawing

Dimensional drawing
Dimension D: 100.0 mm; E: 80.0 mm; G: 160.0 mm; H: 112.0 mm
Spacer pins 1 - 4: Height 25 mm; ø 4 mm

Dimensional drawing

Dimensional drawing
PCB 1, 7: Dimension A: 165.5 mm; B: 131.5 mm; C: 0 mm
PCB 8, 10, 11, 13: Dimension A: 115.5 mm; B: 139.0 mm; C: 0 mm

Schematic diagram

Schematic diagram

Back to top

General

Housing typeComponent housing
Housing materialPolycarbonate fiber reinforced
Color (RAL)black
Back to top

Dimensions

Length125 mm
Height155 mm
Width175 mm
Depth125 mm
