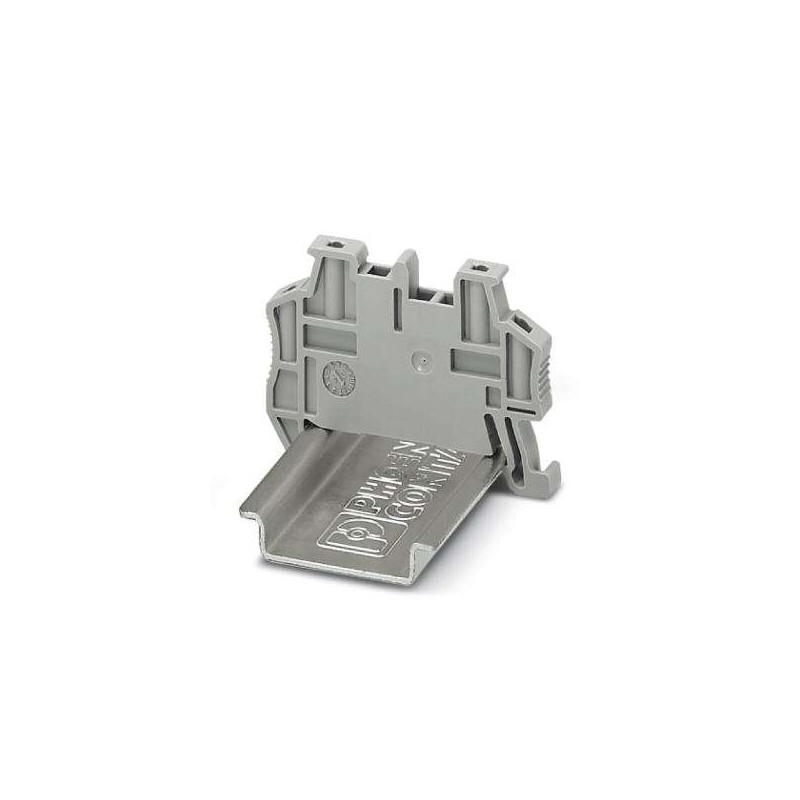

CLIPFIX 35-5 V0 3032350 PHOENIX CONTACT End clamp
CLIPFIX 35-5 V0
3032350
PHOENIX_CONTACT
50
End clamp
Quick final assembly bracket, combustibility class V0 according to UL 94, for symmetrical rail NS 35/7.5 or NS 35/15, labelled with UC-TM 5, UC-TMF 5, KLM 2, KLM3 and KML3L, location possible for FBS... 5, FBS... 6, KSS 5, KSS 6, width: 5.15 mm, colour: grey
Terminal blocks > End bracket for terminal block
CABINET add-on
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 3032350 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 582 (C-3-2017) |
| GTIN | 4046356151801 |
| Weight per Piece (excluding packing) | 5.040 g |
| Custom tariff number | 39269097 |
| Country of origin | IN (India) |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|---|
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141199eCl@ss 4.127141199eCl@ss 5.027141135eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141135eCl@ss 8.027141135eCl@ss 9.027141135
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Grey |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Type of latching (EF002667) | Screwless |
| Material (EF002169) | Other |
| Material quality (EF001257) | Polyamide (PA) |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Height (EF000040) | 48.5 mm |
| Depth (EF000049) | 35 mm |
