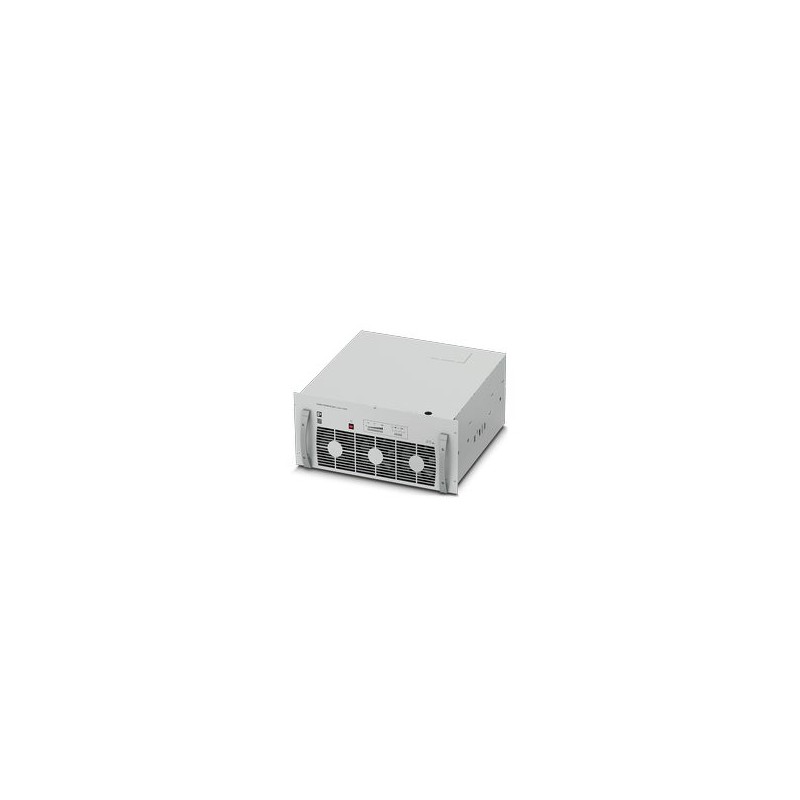

CHARX PS/3AC/920DC/87.5KW 1162690 PHOENIX CONTACT CHARX power, Fast charging module for mounting DC charging..
CHARX PS/3AC/920DC/87.5KW
1162690
PHOENIX_CONTACT
CHARX power, Fast charging module for mounting DC charging poles, input: 3 phase, output: 200 V DC... 920 V DC / 125 A
CHARX power basic, Fast charging module for mounting DC charging stations, input: 3 phase, output: 200 V DC... 920 V DC / 125 A. The operation of the DC power module requires the corresponding control cabinet of the CHARX PS-CAB/4x87.5KW system (article code 1165442)
Low-voltage industrial components > DC-power supply
Power Supplies (PS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| AC Operation | |
| Input Voltage Range | 3x 400V AC ±10% |
| Frequency Range | 3x 50 Hz ... 60 Hz ±10% |
| Input current | 3x 130 A |
| Power Factor (cos phi) | 0,99 |
| Total Distortion (THDi) | < 3% |
| Network Structure | TN-S, TN-C, TN-C-S, IT (PE) (Central Point Grounding & Insulation Monitoring) |
| Yield | max. 97 % |
| Output Voltage Range | 200 V DC ... 920 V DC ±1% |
| Output current | max. 125 A |
| Residual ripple of the output current | ≤ 1% |
| Nominal power | 87.5 kW |
| Dissipated Power | < 2650 W |
| Power dissipated in standby | < 135 W |
| Derating | > 40 °C ... 50 °C (Derating 2.5%/K) |
| Parallel operation | yes (Provision) |
| Parallel connection possible | Yes, up to 2 control cabinets |
| Battery technology | Li |
| Number of phases | 3 |
| Product Type | DC Power Module |
| Product Family | CHARX power basic |
| Hot-PLUG Connection | Yes |
| Ventilation | Yes |
| Insulation Properties | |
| Kind of protection | I |
| Degree of pollution | 2 |
| Item Dimensions | |
| Width | 536 mm |
| Height | 222 mm |
| Depth | 600 mm |
| Type of mounting | Rack mounting |
| Environmental conditions | |
| Protection Index | IP20 |
| Ambient Temperature (Service) | 0 °C ... 50 °C (Derating > 40 °C: 2.5%/K) |
| Ambient Temperature (Storage/Transport) | -25 °C ... 85 °C |
| Fixing height | ≤ 2000 m (Derating > 1000 m: 10%/1000 m) |
| Permissible air humidity (service) | 5 % ... 95% (non-condensing) |
| Noise level | approx. 72 dB (at full load) |
| Surge Category | |
| IEC 60664-1 | Ii |
| Conductive charging system for electric vehicles. Part 1: General Requirements. | |
| Denomination of standard | Conductive charging systems for electric vehicles; Part 1: General Requirements |
| Rules/Provisions | IEC 61851-1 |
| UL Data | |
| Surge Category | Ii |
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | AC |
| 1st secondary output voltage (EF006792) | 200 V |
| Max. output current 1 (EF008284) | 125 A |
| Secondary voltage adjustable (EF007002) | Yes |
| Nominal value output current 1 (EF009396) | 125 A |
| Short-circuit-proof (EF007332) | Yes |
| Output voltage stabilized (EF003092) | Yes |
| Power consumption (EF000346) | 90067 VA |
| Power output (EF003034) | 87500 W |
| Stabilized (EF005302) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| Modular version (EF001126) | No |
| Built-in height (EF000332) | 222 mm |
| Direct mounting possible (EF005689) | No |
| Width (EF000008) | 536 mm |
| Height (EF000040) | 222 mm |
| Depth (EF000049) | 600 mm |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | Other |
