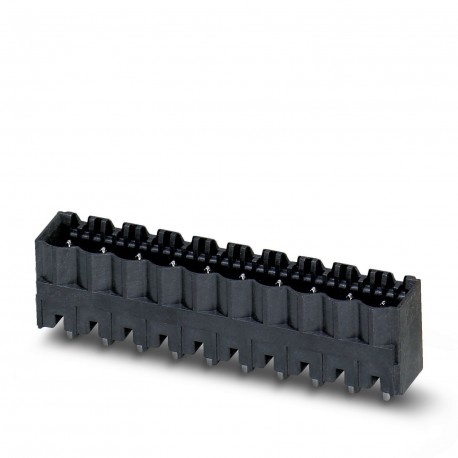

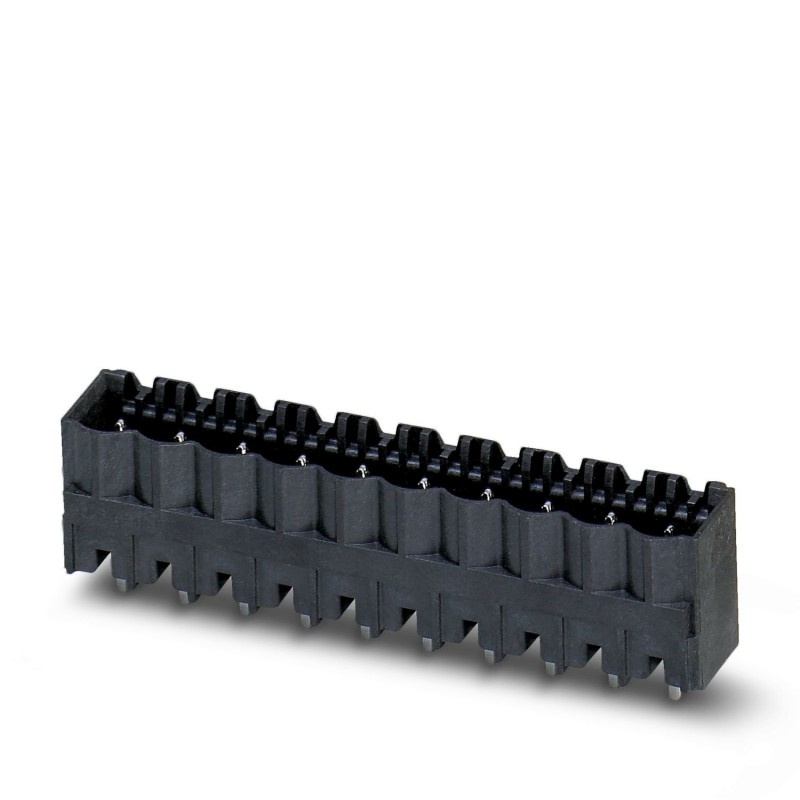

CCVA 2,5/ 3-G-5,08 P14CR2THRR 1077021 PHOENIX CONTACT Feed-through header CCVA 2,5/ 3-G-5,08 P14CR2THRR 1077..
CCVA 2,5/ 3-G-5,08 P14CR2THRR
1077021
PHOENIX_CONTACT
1120
Feed-through header - CCVA 2,5/ 3-G-5,08 P14CR2THRR - 1077021
Base housing printed circuit board, nominal section: 2.5 mm², color: black, rated current: 12 A, sizing voltage (III/2): 320 V, surface contacts: Tin, contact type: Male, Number of potentials: 3, Number of rows: 1,Number of poles per row: 3, number of connections: 3, article family: CCVA 2,5/.. -G, pitch: 5.08 mm, mounting: THR welding, pin arrangement: Linear pin arrangement, pin length [P]: 1.4 mm, Stecksystem: CLASSIC COMBICON, Locking: sin, packing type: 32 mm wide strap
PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 3, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 1.4 mm
Connectors > Printed circuit board connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲
Dimensions
| Length [ l ] | 8.6 mm |
|---|---|
| Width | 18.04 mm |
| Pitch | 5.08 mm |
| Dimension a | 10.16 mm |
| Width [ w ] | 18.04 mm |
| Height [ h ] | 13.4 mm |
| Height | 12 mm |
| Length of the solder pin | 1.4 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 8.6 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
