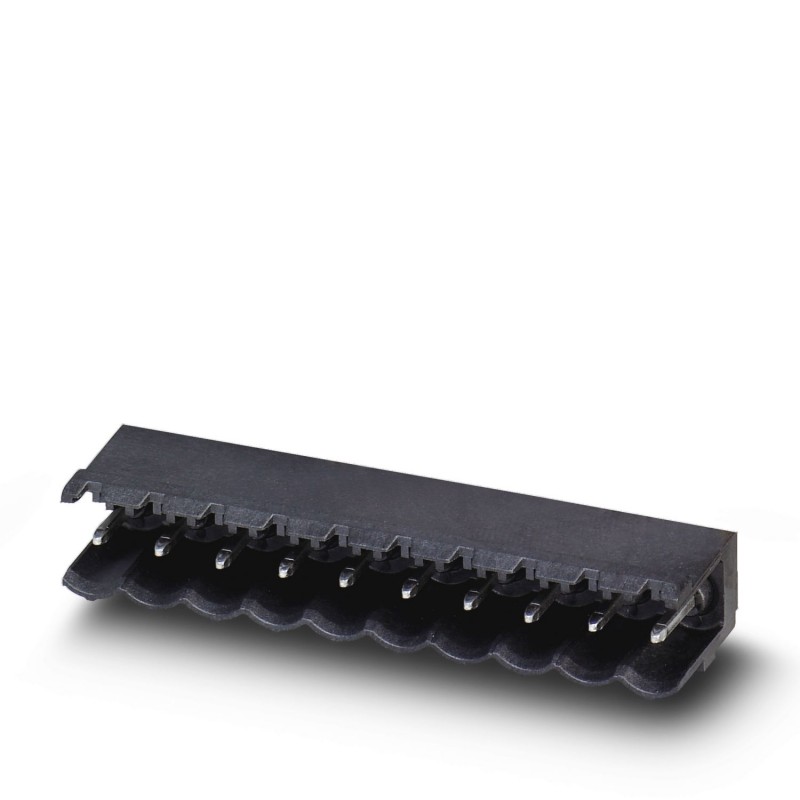

CC 2,5/ 3-G-5,08 P26THRR32 L 1785731 PHOENIX CONTACT Housing base printed circuit board, nominal current: 12..
CC 2,5/ 3-G-5,08 P26THRR32 L
1785731
PHOENIX_CONTACT
330
Product on demand only, returns will not be accepted.
Housing base printed circuit board, nominal current: 12 A, voltage and sizing (III/2): 320 V, number of poles: 3, pitch: 5,08 mm, color: black, surface of contact: Tin, assembly: Soldering THR
Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of articles: DC 2.5/.. -G, pitch: 5.08 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: 32 mm wide strap
PCB socket, nominal cross-section: 2.5 mm2, colour: black, rated current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Sn, contact connection type: plug, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, product series: DC 2.5/.. -G, pitch: 5.08 mm, mounting: TTHR / wave soldering, pin layout: Linear pinning, pin length [P]: 2.6 mm, number of solder pins per potential: 1, plug system: COMBICON MSTB 2.5, Insertion pin orientation: Standard, locking: none, fastening type: none, packaging type: 32 mm width tape
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Body part for PCB rated current: 12 A, rated voltage (III/2): 320 V, poles: 3, the size of the pitch: 5.08 mm, color: black, contact surface: tin, Assembly: soldering THR
Commercial data
| Order code | One million seven hundred eighty five thousand seven hundred thirty one |
|---|---|
| Packaging unit | One |
| GTIN | Four trillion forty six billion three hundred fifty six million six hundred forty seven thousand three hundred four |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | Of 14.84 mm |
| The step size | 5.08 mm |
| Size a | 10.16 mm |
| Width [ w ] | Of 14.84 mm |
| Height [ h ] | 11.2 mm |
| Height | 8.6 mm |
| Pin length solder | 2.6 mm |
| The dimensions of the pin | 1 x 1 mm |
| Length | 12 mm |
General information
| Series products | CC 2,5/..-G |
|---|---|
| Insulating material group | IIIa |
| Rated impulse withstand voltage (III/3) | 4 kV |
| Rated impulse withstand voltage (III/2) | 4 kV |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated voltage (III/3) | Two hundred fifty |
| Rated voltage (III/2) | Three hundred twenty |
| Rated voltage (II/2) | Four hundred |
| Connection according to standard | EN-VDE |
| Nominal current IN | 12 A |
| Maximum load current | 12 A |
| Class of Flammability according to UL 94 | V0 |
| Color | black |
| Poles | Three |
Standards and regulations
| Connection according to standard | EN-VDE |
|---|---|
| Class of Flammability according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | The time period to use: ∞ = EFUP-e |
|---|---|
| Does not contain hazardous substances beyond the threshold |
Classification
eCl@ss
| eCl@ss 4.0 | 272607xx |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred one |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred one |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand four hundred two |
ETIM
| ETIM 4.0 | EC002637 |
|---|---|
| ETIM 5.0 | EC002637 |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
UNSPSC
| UNSPSC 6.01 | Thirty million two hundred eleven thousand eight hundred ten |
|---|---|
| UNSPSC 7.0901 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 11 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 12.01 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 3 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.6 mm |
| Length pin (EF006825) | 2.6 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Other |
Datasheet - PDF
