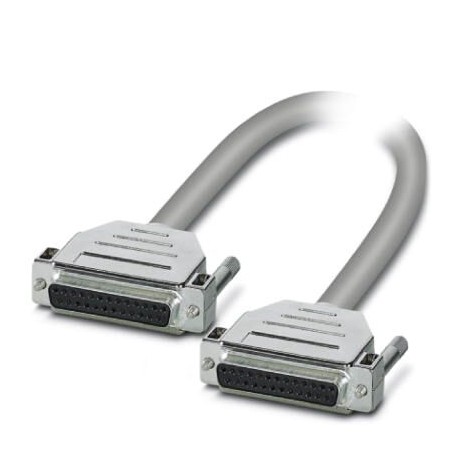

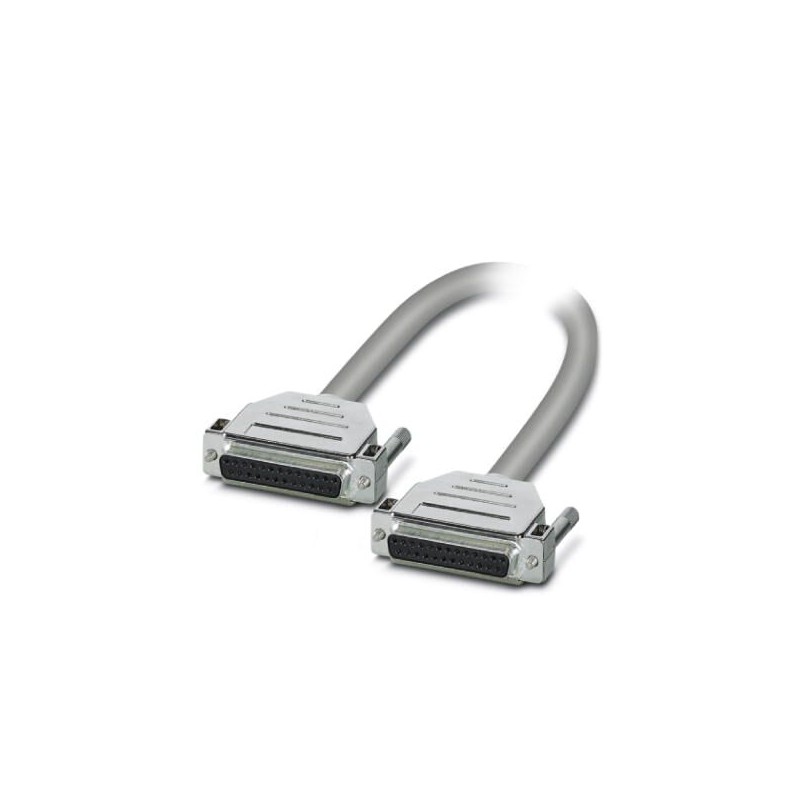

CABLE-D25SUB/B/B/620/KONFEK/S 2905083 PHOENIX CONTACT Assembled shielded round cable connection 1: D-SUB soc..
CABLE-D25SUB/B/B/620/KONFEK/S
2905083
PHOENIX_CONTACT
50
Assembled shielded round cable; connection 1: D-SUB socket strip (1x 25-position); connection 2: D-SUB socket strip (1x 25-position); cable length: 6.2 m
Shielded ready-made round cable; Connection 1: Female connection D-SUB (1x 25-poles); connection 2: Female connection D-SUB (1x 25-poles); Cable length: 6.2 m
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Assembled shielded round cable; connection 1: D-SUB socket strip (1x 25-position); connection 2: D-SUB socket strip (1x 25-position); cable length: 6.2 m
Key Commercial Data
| Orderkey | 2905083 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356916837 |
| Custom tariff number | 85444290 |
General
| Max. permissible operating voltage | 25 V AC |
|---|---|
| 50 V DC | |
| Max. current carrying capacity per path | 2 A (uncoiled) |
| Length of cable | 6.2 m |
| External cable diameter | 9.8 mm |
| Single wire, cross section | 0.25 mm² |
| Outer sheath, material | PVC |
| External sheath, color | gray RAL 7035 |
Connection data
| Connection name | Field level |
|---|---|
| Connection method | D-SUB socket strip |
| Number of connections | 1 |
| Number of positions | 25 |
Connection data 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB socket strip |
| Number of connections | 1 |
| Number of positions | 25 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27242200 |
|---|---|
| eCl@ss 6.0 | 27249200 |
| eCl@ss 7.0 | 27249205 |
| eCl@ss 8.0 | 27249205 |
| eCl@ss 9.0 | 27242220 |
ETIM
| ETIM 2.0 | EC000237 |
|---|---|
| ETIM 3.0 | EC000237 |
| ETIM 4.0 | EC000237 |
| ETIM 5.0 | EC000237 |
| ETIM 6.0 | EC000237 |
| ETIM 7.0 | EC000237 |
UNSPSC
| UNSPSC 13.2 | 26121620 |
|---|
| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | PLC - other devices |
| Length (EF001438) | 6.2 m |
| Suitable for input board PLC (EF008271) | No |
| Suitable for output card PLC (EF008272) | No |
| Suitable for digital signals (EF008273) | No |
| Suitable for analogue signals (EF008274) | No |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of electrical connection, box-sided (EF005524) | Other |
| Number of poles (EF001391) | 25 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
