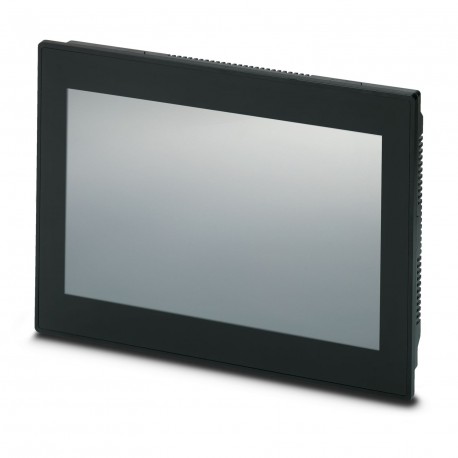

BWP 2102W 1060630 PHOENIX CONTACT Touch panel with 25.9 cm / 10.2" TFT-display (analog resistive (polyester)..
BWP 2102W
1060630
PHOENIX_CONTACT
Touch panel with 25.9 cm / 10.2" TFT-display (analog resistive (polyester)), 16.7 million colors, Arm
Web panel with 25.9 cm / 10.2" TFT-screen (analog-resistive (polyester)), 1024 x 600 pixel(s) (WSVGA), 16.7 million colors, i.MX 6DualLite, 454MHz, 1x USB Host 2.0, 1x Ethernet (10/100 MBits/s), RJ45, Yocto/Linux and user software: QT browser. (Bus system: SIN)
PLC's > Graphic panel
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1060630 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 468 (C-6-2019) |
| GTIN | 4055626711645 |
| Weight per Piece (excluding packing) | 1.000 g |
| Custom tariff number | 84715000 |
| Country of origin | IN (India) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 268 mm x 190 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 256 mm x 178 mm x 33 mm (Installation cutout) |
Display
| Display | 25.9 cm / 10.2" TFT |
|---|---|
| Screen resolution | 1024 x 600 Pixel(s) |
| Touch technology | analog resistive (polyester) |
| Brightness | 350 cd/m² |
| Backlighting | LED |
| Display backlight MTBF | 25000 h |
| Colors | 16.7 million colors |
| Reading angle left | 65 ° |
| Reading angle right | 65 ° |
| Reading angle top | 45 ° |
| Reading angle bottom | 65 ° |
Computer data
| Processor | Arm®Cortex®-A9, 1 GHz |
|---|---|
| Operating system | Yocto/Linux |
| User software | Otter Browser |
| RAM | 1 GB DDR2 |
| Mass storage | Flash eMMC, 4 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 1x USB Host 2.0 |
| Bus system | without |
Ambient conditions
| Degree of protection | IP66 (on the front), IP20 (on the back) |
|---|---|
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (operation) | DIN EN 60068-2-6 |
| Shock | DIN EN 60068-2-27 |
Classifications
eCl@ss
| eCl@ss 5.1 | 27330200 |
|---|---|
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242302 |
| eCl@ss 8.0 | 27242302 |
| eCl@ss 9.0 | 27330201 |
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | DC |
| Number of HW-interfaces industrial Ethernet (EF003020) | 1 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Colour display (EF003097) | Yes |
| Number of pixels, horizontal (EF003099) | 1024 |
| Number of pixels, vertical (EF003100) | 600 |
| Touch technology (EF010884) | Other |
| With message system (incl. buffer and confirmation) (EF003110) | No |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Operating temperature (EF002393) | 0 °C |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Suitable for safety functions (EF001597) | No |
| Width of the front (EF003651) | 268 mm |
| Height of the front (EF003652) | 190 mm |
| Built-in depth (EF000218) | 33 mm |
