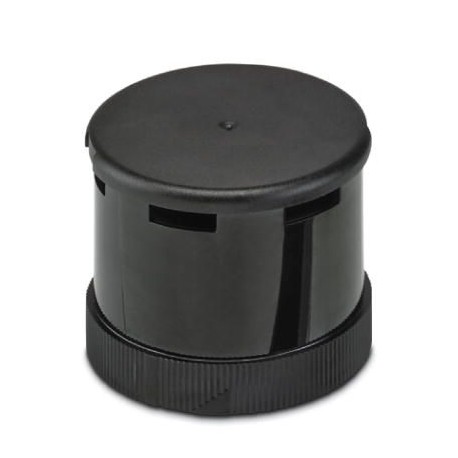

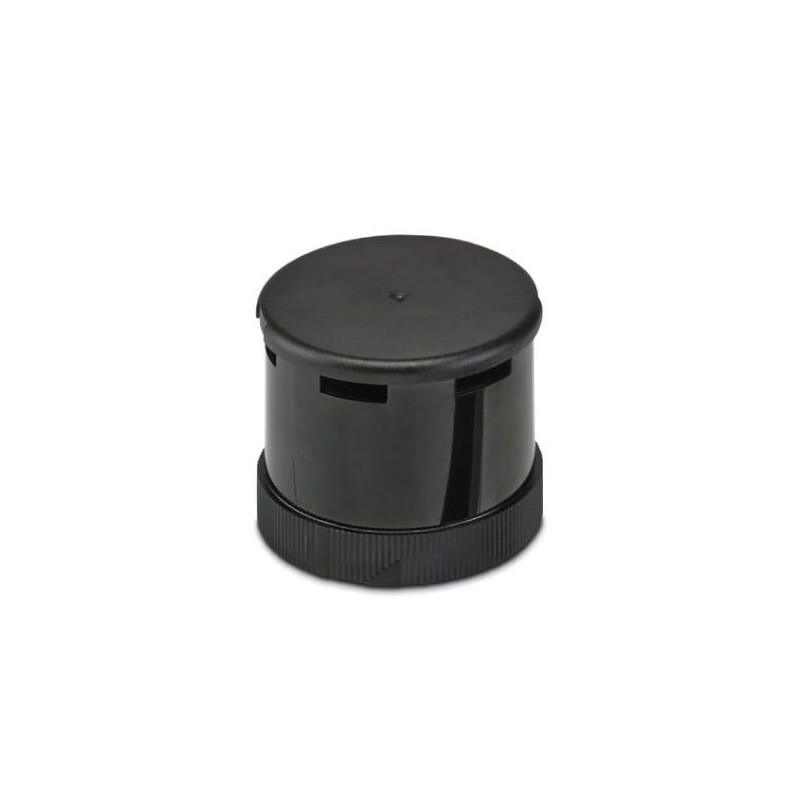

PSD-S AE SM8-6 102DB/1 2702997 PHOENIX CONTACT Acoustic element
PSD-S AE SM8-6 102DB/1
2702997
PHOENIX_CONTACT
Acoustic element
Siren element, 8 tones, 24 V AC/DC, max. 102 dB(A), tones selectable via DIP switch, black
Low-voltage industrial components > Acoustic module for signal tower
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Often bought together
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702997 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626492063 |
| Weight per Piece (excluding packing) | 92.400 g |
| Custom tariff number | 85318070 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Degree of protection | IP65, when installed |
Electrical data
| Input voltage | 24 V AC/DC ±10 % |
|---|---|
| Nominal input voltage range | 21.6 V AC/DC ... 26.4 V AC/DC |
| Maximum inrush current | max. 250 mA |
| Current consumption | 30 mA |
| Service life, electrical | min. 5,000 h |
| Operating time | 100 % |
| Type of acoustic signal | 8 tones, adjustable volume |
| Signal frequency | approx. 20 Hz (Trill tone) |
| approx. 420 Hz (Hum tone) | |
| approx. 3.5 kHz (Continuous tone with periodically increasing tone frequency (sweep: 1 kHz to 3.5 kHz)) | |
| Tone frequency | approx. 2.8 kHz |
| Volume | max. 102 dB (Continuous and pulse tone at 2.8 kHz) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027240208eCl@ss 4.127240208eCl@ss 5.027371214eCl@ss 5.127371214eCl@ss 6.027371200eCl@ss 7.027371214eCl@ss 8.027371214eCl@ss 9.027371214
| Feature Name | Feature Value |
|---|---|
| Outer diameter (EF000015) | 70 mm |
| Colour (EF000007) | Black |
| Operating voltage DC (EF008208) | 21.6 V |
| Voltage type (EF000187) | AC/DC |
| Degree of protection (IP) (EF005474) | IP65 |
| Loudness (EF000144) | 102 dB |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
