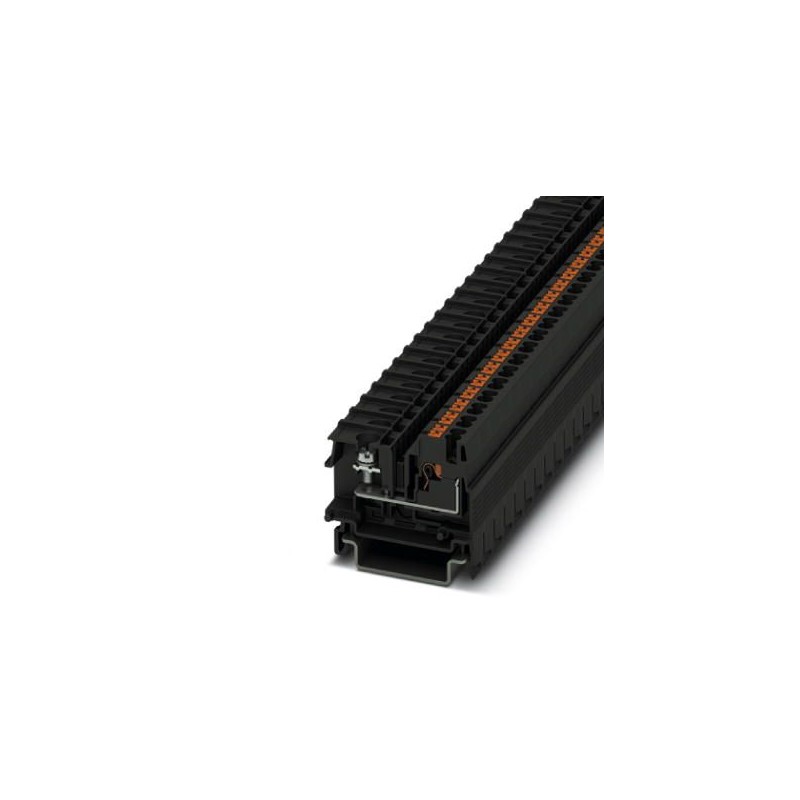

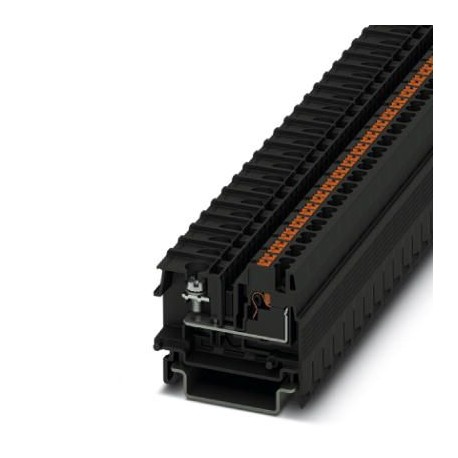

BTH 2,0 3281108 PHOENIX CONTACT Feed-through terminal block
BTH 2,0
3281108
PHOENIX_CONTACT
50
Feed-through terminal block
Terminal blocks > Feed-through terminal block
Enclosures connectivity
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 3281108 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 389 (C-1-2017) |
| GTIN | 4055626119137 |
| Weight per Piece (excluding packing) | 8.240 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 3 |
| Nominal cross section | 2.5 mm² |
| Color | black |
| Insulating material | PC |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | IIIa |
| Maximum power dissipation for nominal condition | 0.77 W |
| Ambient temperature (operation) | -40 °C ... 110 °C |
| Connection method | Ring cable lug |
| Connection in acc. with standard | IEC 60947-7-1 |
| Maximum load current | 24 A |
| Nominal current IN | 24 A |
| Nominal voltage UN | 690 V |
| Connection method | Push-in connection |
| Connection in acc. with standard | IEC 60947-7-1 |
| Maximum load current | 24 A (The maximum load current must not be exceeded by the total current of all connected conductors.) |
| Nominal current IN | 24 A |
| Nominal voltage UN | 690 V |
| Open side panel | Yes |
| Shock protection test specification | DIN EN 50274 (VDE 0660-514):2002-11 |
| Back of the hand protection | guaranteed |
| Finger protection | guaranteed |
| Result of surge voltage test | Test passed |
| Surge voltage test setpoint | 9.8 kV |
| Result of power-frequency withstand voltage test | Test passed |
| Power frequency withstand voltage setpoint | 1.89 kV |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
| Result of bending test | Test passed |
| Bending test rotation speed | 10 rpm |
| Bending test turns | 135 |
| Bending test conductor cross section/weight | 0.14 mm² / 0.2 kg |
| 2.5 mm² / 0.7 kg | |
| Tensile test result | Test passed |
| Conductor cross section tensile test | 0.14 mm² |
| Tractive force setpoint | 10 N |
| Conductor cross section tensile test | 2.5 mm² |
| Tractive force setpoint | 40 N |
| Result of tight fit on support | Test passed |
| Tight fit on carrier | NS 35 |
| Setpoint | 1 N |
| Result of voltage-drop test | Test passed |
| Requirements, voltage drop | ≤ 3.2 mV |
| Result of temperature-rise test | Test passed |
| Short circuit stability result | Test passed |
| Conductor cross section short circuit testing | 2.5 mm² |
| Short-time current | 0.3 kA |
| Result of aging test | Test passed |
| Ageing test for screwless modular terminal block temperature cycles | 192 |
| Result of thermal test | Test passed |
| Proof of thermal characteristics (needle flame) effective duration | 30 s |
| Oscillation, broadband noise test result | Test passed |
| Test specification, oscillation, broadband noise | DIN EN 50155 (VDE 0115-200):2008-03 |
| Test spectrum | Service life test category 2, bogie-mounted |
| Test frequency | f1= 5 Hz to f2= 250 Hz |
| ASD level | 6.12 (m/s2)2/Hz |
| Acceleration | 3.12 g |
| Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis |
| Shock test result | Test passed |
| Test specification, shock test | DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock form | Half-sine |
| Acceleration | 30g |
| Shock duration | 18 ms |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
Connection data
| Connection method | Ring cable lug |
|---|---|
| Connection in acc. with standard | IEC 60947-7-1 |
| Screw thread | M3,5 |
| Tightening torque, min | 1 Nm |
| Tightening torque max | 1.2 Nm |
| Stripping length | 10 mm ... 12 mm |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Min. AWG conductor cross section, flexible | 26 |
| Max. AWG conductor cross section, flexible | 14 |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 2.5 mm² |
| Cable lug connection according to standard | DIN 46234 |
| Min. cross section for cable lug connection | 0.14 mm² |
| Max. cross section for cable lug connection | 2.5 mm² |
| AWG min | 26 |
| AWG max | 16 |
| Hole diameter, min. | 3.7 mm |
| Cable lug width, max. | 6.8 mm |
| Bolt diameter | 3.5 mm |
| Screw thread | M3,5 |
| Tightening torque, min | 1 Nm |
| Tightening torque max | 1.2 Nm |
| Connection method | Push-in connection |
| Connection in acc. with standard | IEC 60947-7-1 |
| Stripping length | 10 mm ... 12 mm |
| Conductor cross section solid min. | 0.14 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 14 |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Min. AWG conductor cross section, flexible | 26 |
| Max. AWG conductor cross section, flexible | 14 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.14 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.14 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 1.5 mm² |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 14 |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.34 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.34 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 1.5 mm² |
Connection data (JIS standard)
| Connection method | Ring cable lug |
|---|---|
| Connection in acc. with standard | JIS 8207-7-1 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 2 mm² |
| Cable lug connection according to standard | JIS 8207-7-1 |
| Min. cross section for cable lug connection | 0.5 mm² |
| Max. cross section for cable lug connection | 2 mm² |
| Hole diameter, min. | 3.7 mm |
| Cable lug width, max. | 6.8 mm |
| Bolt diameter | 3.5 mm |
| Screw thread | M3,5 |
| Tightening torque, min | 1 Nm |
| Tightening torque max | 1.3 Nm |
| Nominal current IN | 21 A |
| Maximum load current | 21 A |
| Nominal voltage UN | 600 V |
| Connection method | Push-in connection |
| Connection in acc. with standard | JIS 8207-7-1 |
| Single-wire/terminal point, solid diameter min. | 0.5 mm |
| Single-wire/terminal point, solid diameter max. | 1.6 mm |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 2 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 2 mm² |
| Connection cross sections directly pluggable | 0.8 mm 1.6 mm |
| Single-wire/terminal point, solid diameter min. | 0.8 mm |
| Single-wire/terminal point, solid diameter max. | 1.6 mm |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 1.25 mm² |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141121eCl@ss 4.127141121eCl@ss 5.027141120eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141120eCl@ss 8.027141120eCl@ss 9.027141120
