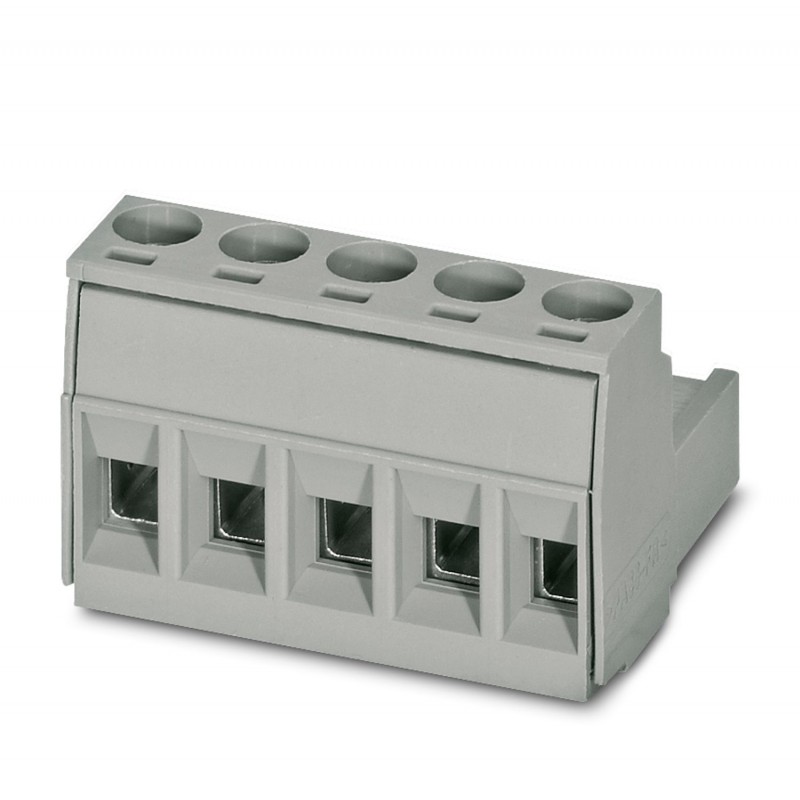

BCP-500- 7 GN BDWH:E3SOVPE250 5453334 PHOENIX CONTACT Printed-circuit board connector
BCP-500-7 GN BDWH:E3SOVPE250
5453334
PHOENIX_CONTACT
250
Printed-circuit board connector
Connector for printed circuit board, nominal cross-section: 2.5 mm², color: off-white, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 7, number of rows: 1, number of poles: 7, number of connections: 7, article family: BCP, pitch: 5 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, conductor connection direction/printed circuit board: 0 °, clamping hook: - Clamping hook, plug-in system: BASICLINE 2.5, locking: without, fixing type: without, packaging type: packed in box
Connector for printed circuit board, nominal current: 12 A, dimensioning voltage (III/2): 320 V, nominal cross-section: 2.5 mm², number of poles: 7, pitch: 5 mm, connection type: Screw connection with traction capsule, color: off-white green, contact surface: Tin
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Data commercial
| Key order | Five million four hundred fifty three thousand three hundred thirty four |
|---|---|
| Packing unit | 250 pcs |
| Key selling | AAYBAA - |
| Minimum order quantity | 250 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million eight hundred ninety six thousand one hundred sixty |
| Unit weight (excluding packaging) | 11,180 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | CN (China) |
Overview
| Family of articles | BCP |
|---|---|
| Number of poles | Seven |
| Type of connection | Connection by screw with capsule-traction |
| Group insulating material | I |
| Transient voltage design (III/3) | 4 kV |
| Transient voltage design (III/2) | 4 kV |
| Transient voltage design (II/2) | 4 kV |
| Tension and sizing (III/3) | 250 V |
| Tension and sizing (III/2) | 320 V |
| Tension and sizing (II/2) | 630 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 12 To |
| Nominal cross section | 2.5 mm2 |
| Isolation | PA |
| Class of flammability according to UL 94 | V0 |
| Length desaislar | 7 mm |
| Screw thread | M3 |
| Tightening torque min. | 0.4 Nm |
| Tightening torque max. | 0.5 Nm |
Data connection
| Core cross-section rigid min. | 0,2 mm2 |
|---|---|
| Section of conductor rigid max. | 2.5 mm2 |
| Section of flexible conductor, min. | 0,2 mm2 |
| Section of flexible conductor max. | 2.5 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve max. | 2.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe, with plastic sleeve max. | 2.5 mm2 |
| Section of conductor AWG min. | Twenty four |
| Section of conductor AWG max. | Twelve |
| 2 conductors with same cross section, rigid min. | 0,2 mm2 |
| 2 conductors with same cross section, rigid max. | 1 mm2 |
| 2 conductors with same cross section, flexible, min. | 0,2 mm2 |
| 2 conductors with same cross section, flexible max. | 1.5 mm2 |
| 2 conductors with same cross section flexible with toe cap, without plastic sleeve min. | 0.25 mm2 |
| 2 conductors with same cross section flexible with toe cap, without plastic sleeve max. | 1 mm2 |
| 2 conductors with same cross section flexible with toe cap TWIN with plastic sleeve min. | 0.5 mm2 |
| 2 conductors with same cross section flexible with toe cap TWIN with plastic sleeve max. | 1.5 mm2 |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| CUL | |
| Class of flammability according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million two hundred sixty thousand seven hundred |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand three hundred nine |
UNSPSC
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
|---|---|
| UNSPSC 18.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 19.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 20.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 21.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 7 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5 mm |
| Modular spacing connections (EF006827) | 5 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
