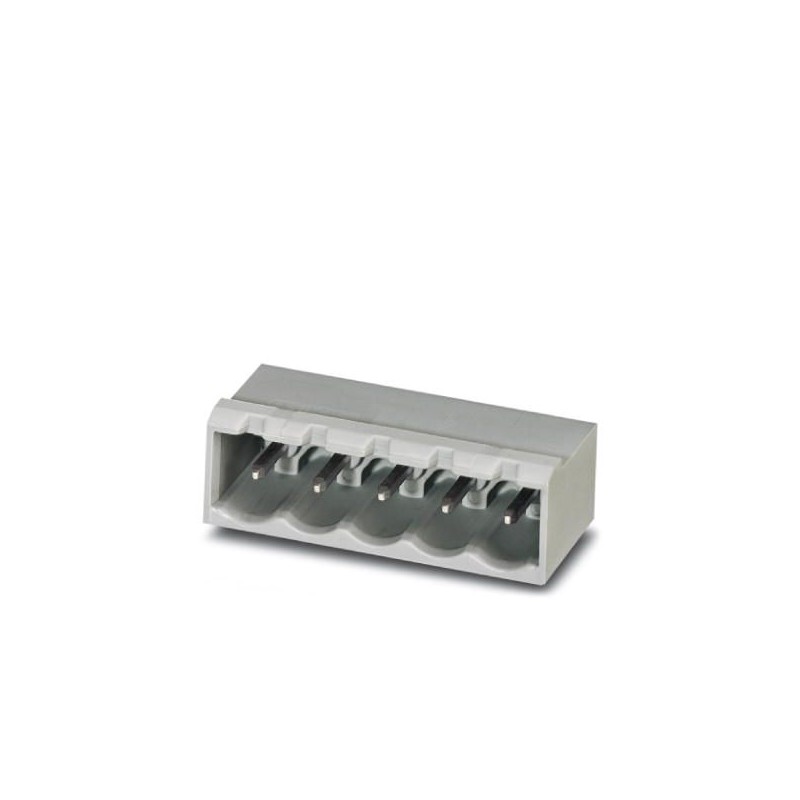

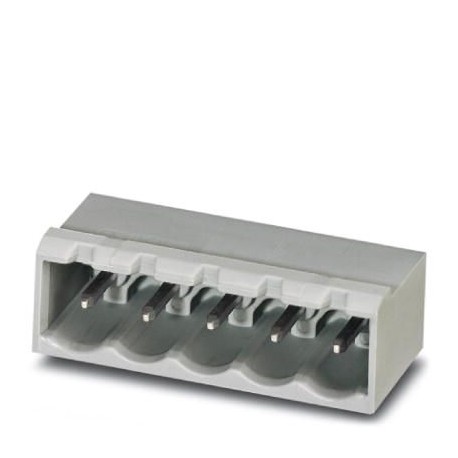

BCH-508HS- 7 BK 5452074 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º..
BCH-508HS-7 BK
5452074
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 7,Pitch: 5,08 mm,Color: black,contact Surface: Tin,Assembly: wave Soldering
Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 7, number of rows: 1, number of poles: 7, number of connections: 7, article family: BCH-HS, pitch: 5.08 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Commercial data
| Order key | 5452074 |
|---|---|
| Packaging unit | 100 PCS |
| Sales key | E1 - PCB Connector |
| Note | Made-to-order production (no returns) |
| GTIN | 4046356855075 |
| Weight per piece (excluding packaging) | 2,740 g |
| Weight per piece (including packaging) | 2,868 g |
| Customs tariff number | 85366930 |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 37.56 mm |
| Grid dimension | 5.08 mm |
| Measure a | 30.48 mm |
| Width [ w ] | 37.56 mm |
| Height [ h ] | 12.07 mm |
| Overall height | 8.57 mm |
| Solder pin length | 3.5 mm |
| Pin Dimensions | 1 x 1 mm |
| Length | 12 mm |
General
| Article family | BCH-HS |
|---|---|
| Insulating material group | I |
| Rated Surge Voltage (III/3) | 4 kV |
| Rated Surge Voltage (III/2) | 4 kV |
| Rated Surge Voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 250 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 400 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 12 A |
| Load current maximum | 12 A |
| Insulating material | PA |
| Flammability class according to UL 94 | V0 |
| Color | black |
| Number of poles | 7 |
Standards and regulations
| Connection according to standard | EN-VDE |
|---|---|
| CUL | |
| Flammability class according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Period of intended use: unlimited = EFUP-e |
|---|---|
| No hazardous substances above the limit values |
Classifications
eCl@ss
| eCl@ss 4.0 | Reference 272607xx |
|---|---|
| eCl@ss 4.1 | 27260701 |
| eCl@ss 5.0 | 27260701 |
| eCl@ss 5.1 | 27260700 |
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440402 |
| eCl@ss 8.0 | 27440402 |
| eCl@ss 9.0 | 27440402 |
ETIM
| ETIM 3.0 | EC001121 |
|---|---|
| ETIM 4.0 | EC002637 |
| ETIM 5.0 | EC002637 |
| ETIM 6.0 | EC002637 |
UNSPSC
| UNSPSC 6.01 | 30211801 |
|---|---|
| UNSPSC 7.0901 | 39121432 |
| UNSPSC 11 | 39121432 |
| UNSPSC 12.01 | 39121409 |
| UNSPSC 13.2 | 39121409 |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 7 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.23 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
