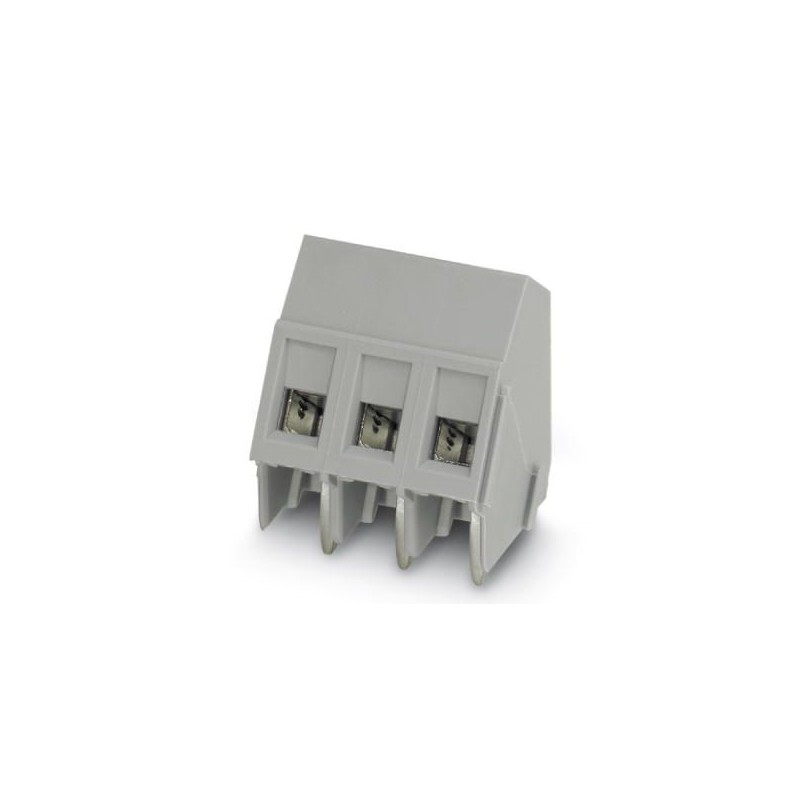

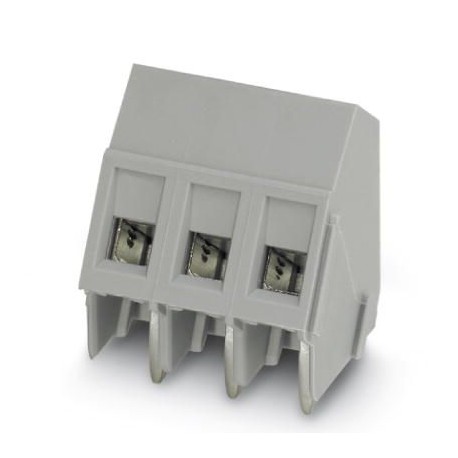

BCA-500X15- 3 BK 5452001 PHOENIX CONTACT Terminal p. printed circuit board, nominal Current: 24 A, nominal V..
BCA-500X15- 3 BK
5452001
PHOENIX_CONTACT
100
Terminal p. printed circuit board, nominal Current: 24 A, nominal Voltage: 320 V, Pitch: 5 mm, Number of poles: 3, Type of connection: Connection by screw with capsule-traction, Assembly: Soldering by wave Direction for connection Conductor/pcb: 55 °, Color: black
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Commercial data
| Ordering code | 5452001 |
|---|---|
| Pieces/pack | 100 PCS |
| Sales key | AAYAAA - |
| Minimum order quantity | 100 PCS |
| GTIN | 4046356855808 |
| Weight per piece (excluding packaging) | 4,420 g |
| Customs Tariff number | 85369010 |
generality
| Article family | BCA-X15 |
|---|---|
| Insulation Material Group | The |
| Sizing impulse voltage (III/3) | 4 kV |
| Sizing Impulse Voltage (III/2) | 4 kV |
| Sizing Impulse Voltage (II/2) | 4 kV |
| Sizing voltage (III/3) | 250 V |
| Sizing voltage (III/2) | 320 V |
| Sizing voltage (II/2) | 630 V |
| Standard-compliant connection | EN-VDE |
| Rated Current IN | 24 A |
| Nominal cross-section | 2.5 mm² |
| Insulation material | PA |
| Surface Solder Pin | |
| Combustibility class according to UL 94 | V0 |
| Stripping length | 7 mm |
| No. of poles | 3 |
| Thread | M3 |
| Torque min. | 0.5 Nm |
| Max. torque | 0.6 Nm |
Connection data
| Rigid conductor cross-section min. | 0.14 mm² |
|---|---|
| Solid conductor cross-section max. | 2.5 mm² |
| Flexible conductor cross-section min. | 0.14 mm² |
| Flexible conductor cross-section max. | 1.5 mm² |
| Flexible conductor cross-section with cable lug without plastic collar min. | 0.25 mm² |
| Flexible conductor cross-section with cable lug without plastic collar max. | 1.5 mm² |
| Flexible conductor cross-section with cable lug with plastic collar min. | 0.25 mm² |
| Flexible conductor cross-section with cable lug with plastic collar max. | 1.5 mm² |
| Conductor cross-section AWG min. | 26 |
| Conductor cross-section AWG max. | 14 |
| 2 conductors same diameter, rigid min. | 0.14 mm² |
| 2 conductors same diameter, rigid max. | 1 mm² |
| 2 conductors same diameter, flexible min. | 0.14 mm² |
| 2 conductors same diameter, flexible max. | 0.75 mm² |
| 2 conductors with the same diameter, flexible with AEH without plastic collar min. | 0.25 mm² |
| 2 conductors with the same diameter, flexible with AEH without plastic collar max. | 0.5 mm² |
| 2 conductors with the same diameter, flexible with TWIN-AEH with plastic collar min. | 0.5 mm² |
| 2 conductors with the same diameter, flexible with TWIN-AEH with plastic collar max. | 1 mm² |
Regulations and requirements
| Standard-compliant connection | EN-VDE |
|---|---|
| CUL | |
| Combustibility class according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Intended Use Period (EFUP): 50 years |
| Information on hazardous substances can be found in the manufacturer's declaration under "Downloads" |
Charts
eCl@ss 4.027141111eCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
