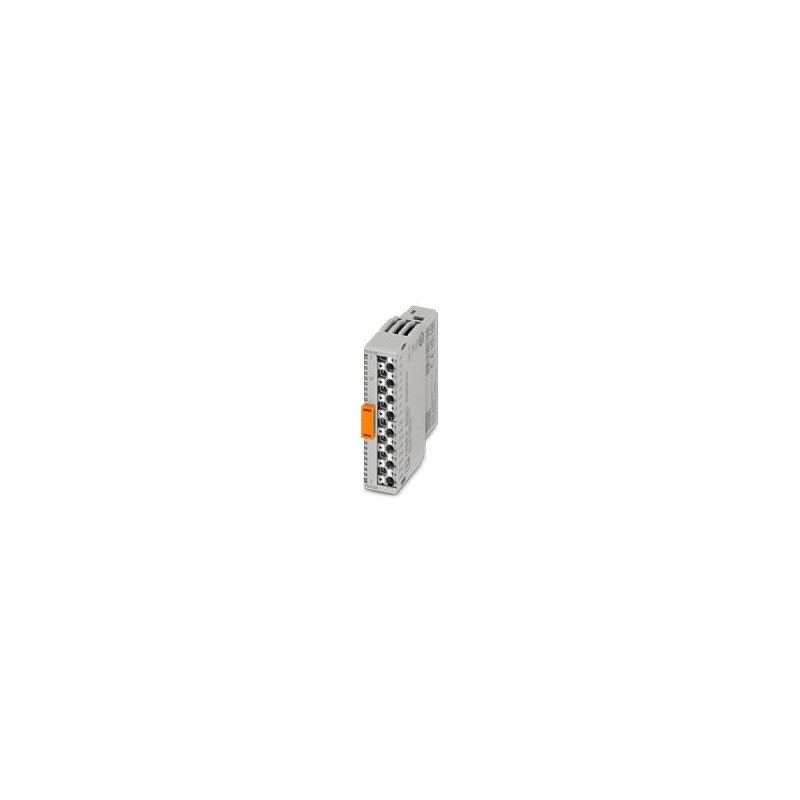

AXL SE PD8/8 24V/GND 1337225 PHOENIX CONTACT Axioline Smart Elements, Potential Distribution Module, 24 V DC..
AXL SE PD8/8 24V/GND
1337225
PHOENIX_CONTACT
Axioline Smart Elements, Potential Distribution Module, 24 V DC, GND, IP20 protection rating
Axioline SmartElements, Potential Distribution Module, 24VDC, GND, Protection Index: IP20
PLC's > Fieldbus, decentr. periphery - power supply/segment module
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Technical data
dimensions
| Dimensioned Drawing |  |
| width | 14.9 mm |
| height | 62.2 mm |
| Depth | 62 mm |
Interfaces
| Smart Element-Interface | |
| Number of interfaces | 1 |
| Link | Card Edge Connectors |
| Transmission speed | See the system where you are using the Smart Element. |
System Features
| Form | |
| ID code (hexadecimal) | none |
| Process data channel | 0 Bit |
| Input address range | 0 Bytes (all systems except PROFIBUS) |
| 1 Byte (PROFIBUS) | |
| Output address range | 0 Bytes |
| Need for parameterization data | 1 Byte |
| Need configuration data | 6 Bytes |
Article features
| type | modularity |
| Product Type | I/O Components |
| Product Family | Axioline Smart Elements |
| Installation Location | See the system where you are using the Smart Element. |
| Insulation characteristics | |
| Overvoltage Category | II (IEC 60664-1, EN 60664-1) |
| Degree of pollution | 2 (IEC 60664-1, EN 60664-1) |
Electrical characteristics
| Potentials: Smart Elements Logic Power Supply (UIF) | |
| Power supply voltage | via Card Edge connectors |
| Potentials: Periphery Power Supply (UP) | |
| Power supply voltage | 24 V DC (via Card Edge connectors) |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current consumption | max. 4 A |
| Current consumption | Min. 9 mA (without peripherals attached) |
| Input | max. 120 W (of which 1.06 W internal losses) |
| Min. 173 mW | |
| Protection Circuit | Prot. against overvoltages; See the system where you are using the Smart Element. |
| Prot. reverse polarity; Diode against inv. polarity | |
| short-circuit/overload protection; Electronic fuse (for connection points 0 ... 7, 4 A) | |
| Galvanic isolation/voltage field isolation | |
| Test voltage: Logic power supply / 24V power supply (periphery) | 500 V AC, 50 Hz, 1 min. |
| Test voltage: Logic power supply / functional ground | 500 V AC, 50 Hz, 1 min. |
| Test voltage: 24 V power supply (periphery) / Functional ground | 500 V AC, 50 Hz, 1 min. |
Connection data
| Connection technology | |
| Link naming | Outskirts |
| Note on connection type | Observe the information on the conductor cross-sections in the "Axioline Smart Element" user manual. |
| Conductor connection | |
| Link | Push-in connection |
| Rigid conductor cross-section | 0.25 mm² ... 1.5 mm² |
| Flexible conductor cross-section | 0.25 mm² ... 1.5 mm² |
| Conductor cross-section AWG | 24 ... 16 |
| Flexible conductor cross-section with cable lug without plastic collar | 0.25 mm² ... 1.5 mm² |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.25 mm² ... 1.5 mm² |
| Stripping length | 8 mm |
| Outskirts | |
| Link | Push-in connection |
| Note on connection type | Observe the information on the conductor cross-sections in the "Axioline Smart Element" user manual. |
| Rigid conductor cross-section | 0.25 mm² ... 1.5 mm² |
| Flexible conductor cross-section | 0.25 mm² ... 1.5 mm² |
| AWG conductor cross-section | 24 ... 16 |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.25 mm² ... 1.5 mm² |
| Flexible conductor cross-section with cable lug without plastic collar | 0.25 mm² ... 1.5 mm² |
| Stripping length | 8 mm |
Environmental and electrical life conditions
| Environmental conditions | |
| Ambient temperature (operating) | -25 °C ... 60 °C |
| Degree of protection | Ip20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m a.s.l.) |
| Air pressure (transport and storage) | 70 kPa ... 106 kPa (up to 3000 m a.s.l.) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
Regulations and requirements
| Security class | III (IEC 61140, EN 61140, VDE 0140-1) |
Montage
| Mounting type | Slot Smart Element |
| Installation Location | See the system where you are using the Smart Element. |
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 19.2 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Type of electric connection (EF003961) | Other |
| With potential separation (EF003272) | No |
| With power supply module (EF003993) | No |
| Suitable as segment module (EF004104) | Yes |
| Remote module (EF006653) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Bus diagnosis possible (EF003989) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
