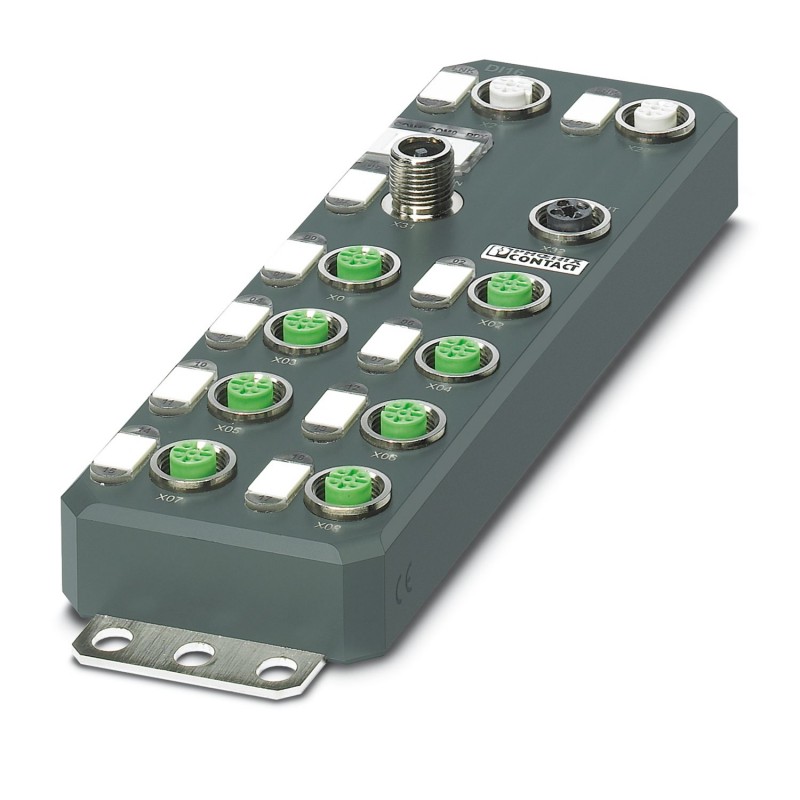

AXL E S3 DI16 M12 6P
2701544
PHOENIX_CONTACT
1
Distributed I/O device
I/O
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2701544 |
---|---|
Packing unit | 1 pc |
Catalog page | Page 200 (C-6-2017) |
GTIN | 4046356763912 |
Weight per Piece (excluding packing) | 551.700 g |
Custom tariff number | 85176200 |
Country of origin | DE (Germany) |
Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
---|
Dimensional drawing | |
---|---|
Width | 60 mm |
Height | 185 mm |
Depth | 30.5 mm |
Note on dimensions | The height is 212 mm including fixing clips. |
Drill hole spacing | 198.5 mm |
Ambient temperature (operation) | -25 °C ... 60 °C |
---|---|
Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % |
Permissible humidity (storage/transport) | 5 % ... 95 % |
Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
Degree of protection | IP65/IP67 |
Designation | Sercos |
---|---|
No. of channels | 2 |
Connection method | M12 fast connection technology |
Note on the connection method | D-coded |
Designation connection point | Copper cable |
Transmission speed | 100 Mbps (with auto negotiation) |
Number of positions | 4 |
Designation | Sercos |
---|---|
Equipment type | Sercos slave |
Device profile | FSP_IO |
System-specific protocols | Sercos protocols Sercos |
Sercos protocols S/IP | |
Protocols supported | HTTP |
TFTP | |
FTP | |
Specification | Sercos specification 1.1.2 |
Designation | Module electronics and sensors (US) |
---|---|
Connection method | M12 connector (T-coded) |
Number of positions | 4 |
Supply voltage | 24 V DC |
Nominal supply voltage range | 18 V DC ... 31.2 V DC (including all tolerances, including ripple) |
Current consumption | typ. 190 mA ±15 % (at 24 V DC) |
Designation | Actuators (UA) for additional devices |
Connection method | M12 connector (T-coded) |
Number of positions | 4 |
Supply voltage | 24 V DC |
Nominal supply voltage range | 18 V DC ... 31.2 V DC (including all tolerances, including ripple) |
Current consumption | typ. 3 mA ±15 % (at 24 V DC) |
Input name | Digital inputs |
---|---|
Description of the input | EN 61131-2 types 1 and 3 |
Connection method | M12 connector, double occupancy |
Connection technology | 4-wire |
Number of inputs | 16 |
Type of protection | Overload protection, short-circuit protection of sensor supply |
Input filter time | < 1000 µs |
Input voltage range "0" signal | 0 V ... 5 V DC |
Input voltage range "1" signal | 11 V DC ... 30 V DC |
Nominal input current at UIN | typ. 3 mA |
Test section | 24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min. |
---|---|
24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min. | |
24 V supply (communications power and sensor supply, digital inputs)/FE 500 V AC 50 Hz 1 min. | |
Bus connection (Ethernet 1)/FE 500 V AC 50 Hz 1 min. | |
Bus connection (Ethernet 2)/FE 500 V AC 50 Hz 1 min. | |
Bus connection (Ethernet 1)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min. | |
24 V supply (actuator supply)/24 V supply (communications power and sensor supply, digital inputs) 500 V AC 50 Hz 1 min. | |
24 V supply (actuator supply)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min. | |
24 V supply (actuator supply)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min. | |
24 V supply (actuator supply)/FE 500 V AC 50 Hz 1 min. |
Mechanical tests | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g |
---|---|
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse | |
Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g | |
Protection class | III, IEC 61140, EN 61140, VDE 0140-1 |
China RoHS | Environmentally Friendly Use Period = 25; |
---|---|
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
