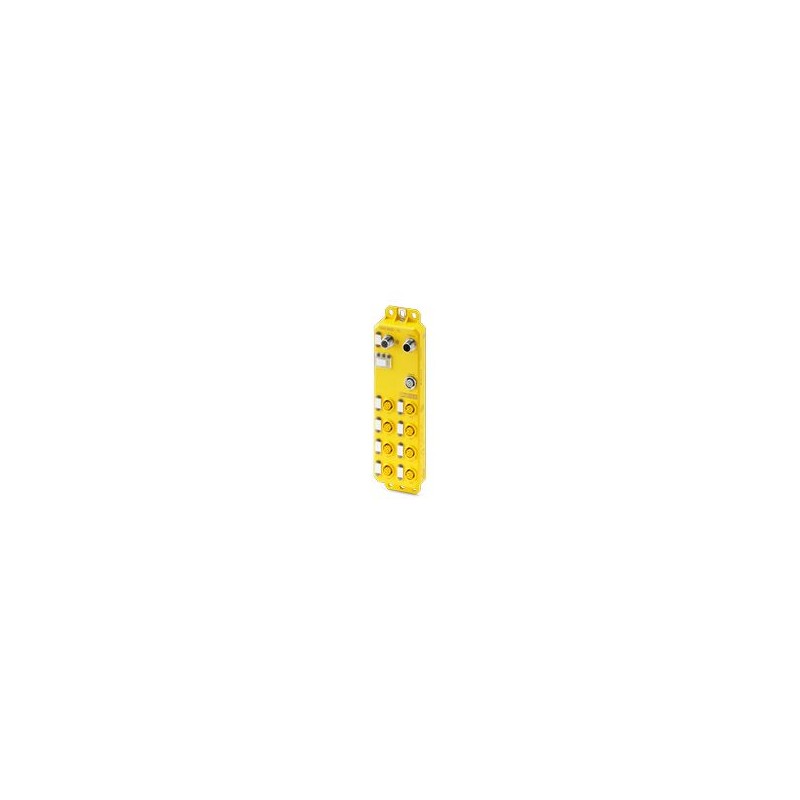

AXL E IOL SDI8 SDO4 2A M12 L 1185380 PHOENIX CONTACT Axioline E safety module, 4 secure digital inputs with ..
AXL E IOL SDI8 SDO4 2A M12 L
1185380
PHOENIX_CONTACT
Axioline E safety module, 4 secure digital inputs with 2-channel occupancy, 8 safe digital inputs with single-channel occupancy, 4 safe digital outputs with +/- switching, IO-Link interface, IP65/IP67 rating, for PROFIsafe systems
Axioline E Safety Module, 4 Secure Digital Inputs with 2 Channel Occupancy, 8 Secure Digital Inputs with One Channel Occupancy, 4 Safe Digital Outputs with +/- Switching, IO-Link Interface, IP65/IP67 Degree of Protection, for PROFIsafe Systems
PLC's > Fieldbus, decentr. periphery - digital I/O module
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Technical data
Dimensions
| Dimension Scheme |  |
| Width | 59.8 mm |
| Height | 214 mm |
| Depth | 30 mm |
| Note on Measurement Indications | Data incl. fixing tabs and plugs |
Material Data
| Shell material | Plastic POCAN B4239 GF30 YE 1018 |
Input data
| Digital | |
| Denomination Entry | Secure Digital Inputs |
| Ticket Description | IEC 61131-2 Type 3 |
| Number of Entries | 4 (With 2 channel assignment) |
| 8 (With 1 channel assignment) | |
| Cable length | max. 200 m |
| Connection type | M12 plug-in connector (A-coded) |
| Connection technology | 3 conductors |
| Input Voltage Range Signal "0" | -30 V DC ... 5 V DC |
| Input Voltage Range Signal "1" | 11 V DC ... 30.2 V DC |
| Nominal Input Voltage UIN | 24 V DC |
| Nominal input current to UIN | Typ. 3.7 mA (with 24 V DC) |
| max. 4.3 mA (with 30.2 V DC) | |
| Inlet Filter Time | 1.5 ms |
| 3 ms (Default) | |
| 5 ms | |
| 15 ms | |
| Protection Circuit | Overload protection, short-circuit protection of sensor power |
| IO-Link | |
| Number of ports | 1 |
| Connection type | M12 plug-in connector, A-coded |
| Connection technology | 3 conductors |
| Port Model | Class A |
| Specification | V1.1.2 |
| Polarity reversal protection | Yes |
| Transmission speed | 230.4 kBit/s (COM3) |
| Cycle Time | ≥ 4 ms |
| Updating Process Data | ≥ 4 ms |
| Number of process data | 64 Bit (Input and Output Data) |
Output Data
| Digital | |
| Denomination Output | Secure Digital Outputs |
| Connection type | M12 plug-in connector (A-coded) |
| Connection technology | 2 conductors |
| Number of outputs | 4 (with 2-channel assignment, +/- switching) |
| 4 (with 1-channel assignment, + switching) | |
| Protection Circuit | Overload protection, outputs short-circuit protection |
| Output voltage | Uto- 1.4 V |
| Output current | max. 2 A (per channel) |
| max. 2 A (per output) | |
| max. 6 A (Current sum of all outputs, please note the indications in the user manual.) | |
| Maximum Output Current Per Channel | 2 A |
| Nominal Output Voltage | 24 V DC (Voltage Us) |
| Min. Charge | 2.4 kΩ (10 mA at 24 V DC) |
| Output voltage in disconnected state | < 5 V (in Low state)) |
| Output current in disconnected state | 2 mA (Leakage current in "Low" state) |
| Delay Time | max. 128 s (parameterizable) |
| Permissible cable length | max. 50 m |
| Number of manoeuvres | max. 1 Hz |
| Resistance to return voltage, against short impulses | No |
Item Properties
| Construction | Stand-Alone |
| Product Type | I/O Component |
| Product Family | Axioline E |
| Position for mounting | discretionary |
| application | Functional safety |
| Operating Mode | 4-word process data service |
| Insulation Properties | |
| Degree of pollution | 4 |
Electrical Properties
| Power: IO-Link | |
| Denomination | IO-Link Port Power (L+) |
| Nominal Peripheral Supply Voltage | 24 V DC (Made available via the IO-Link interface of the IO-Link master.) |
| Supply voltage | 19.2 V DC ... 30.2 V DC (incl. all tolerances, incl. ripple) |
| Nominal current per device | approx. 15 mA |
| Permissible cable length | max. 20 m |
| Protection Circuit | Prot. Against polarity reversal |
| Power: Modular electronics and sensors | |
| Denomination | Power supply of modular electronics and sensors (Us) |
| Connection type | M12 connector (L-coded) |
| Number of poles | 2 |
| Supply voltage | 24 V DC |
| Supply voltage | 19.2 V DC ... 30.2 V DC (incl. all tolerances, incl. ripple) |
| Current absorption | 67 mA (Without Sensors) |
| Fuse protection | max. 8 A (slow) |
| Power: Actuators | |
| Denomination | Actuator Power (Uto) |
| Connection type | M12 connector (L-coded) |
| Number of poles | 2 |
| Supply voltage | 24 V DC |
| Supply voltage | 19.2 V DC ... 30.2 V DC (incl. all tolerances, incl. ripple) |
| Current absorption | 52 A (without actuators) |
| Fuse protection | max. 8 A (slow) |
Connection data
| Connection type | M12 plug-in connector |
| Note about the connection type | according to IEC 61076-2-101, M12 connection technology |
Environmental and life-life conditions
| Environmental conditions | |
| Ambient Temperature (Service) | -25 °C ... 60°C (Mounting Position: Discretionary) |
| Protection Index | IP65/IP67 (according to DIN EN 60529:1989 + A1:1999 + A2:2013) |
| Observation | Resistant to hazardous gas for operation (sulfur dioxide (SO)2), hydrogen sulfide (H2S)) |
| Air Pressure (Service) | 70 kPa ... 108 kPa (up to 3000 m above NN) |
| Air Pressure (Storage/Transport) | 66 kPa ... 108 kPa (up to 3500 m above NN) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 85 °C |
| Permissible air humidity (storage/transport) | 75% (non-condensing) |
Standards & Specifications
| Kind of protection | III (IEC 61140, EN 61140, VDE 0140-1) |
| Creepage Lines and Air Isolation Distances | |
| Leak lines and air gaps | according to IEC 60664-1 |
assembly
| Position for mounting | discretionary |
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | DC |
| Number of digital inputs (EF001992) | 4 |
| Number of digital outputs (EF001993) | 4 |
| Digital inputs configurable (EF008516) | No |
| Digital outputs configurable (EF008520) | No |
| Input current at signal 1 (EF001428) | 0.0037 mA |
| Permitted voltage at input (EF007554) | -30 V |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of digital output (EF003601) | None |
| Output current (EF003202) | 2 A |
| Short-circuit protection, outputs available (EF003203) | Yes |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces other (EF003027) | 1 |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | Yes |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | Yes |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP65/IP67 |
| Time delay at signal change (EF002382) | 0 ms |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | Yes |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
