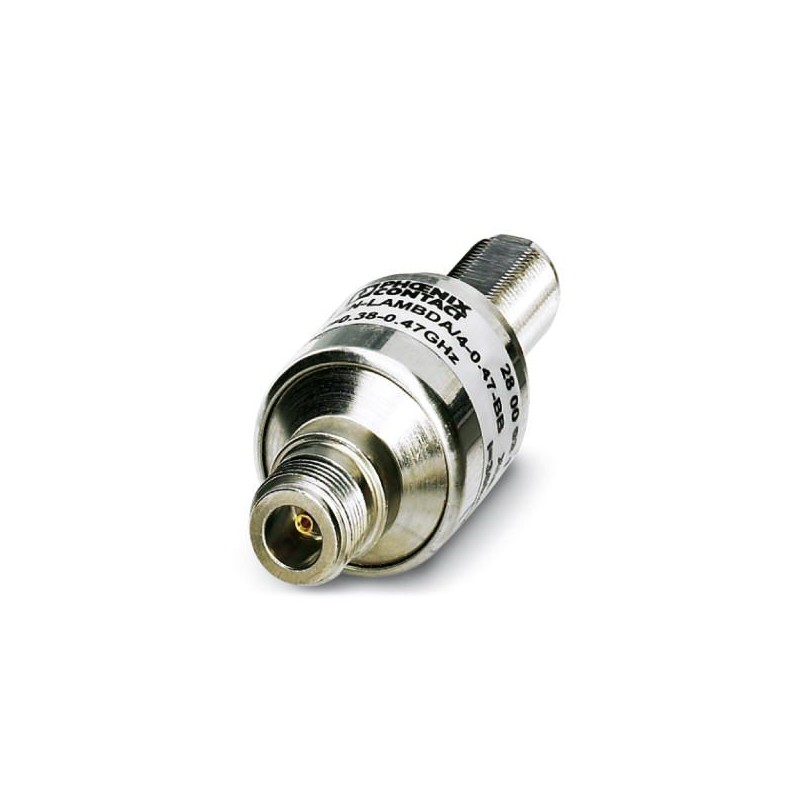

Images are for illustrative purposes only. Please refer to data sheet for details.

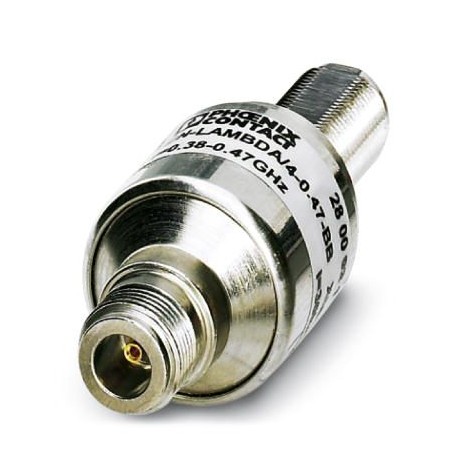

CN-LAMBDA/4-0.47-BB 2800021 PHOENIX CONTACT Attachment plug with Lambda/4 technology as surge protection for..

CN-LAMBDA/4-0.47-BB

2800021

PHOENIX_CONTACT

Available

Ship on today

Attachment plug with Lambda/4 technology as surge protection for coaxial signal interfaces. Connection: N connectors socket-socket

More details


Overvoltage Protection Over Voltage

TRABTECH Power and Signal Quality - PHOENIX CONTACT

Surge protection for transceiver systems - PHOENIX CONTACT

* Brand new produt in its original packing covered by the warranties and certifications provided by PHOENIX_CONTACT

QuantityPrice
1+136,74 €
2+133,08 €
3+131,26 €
4+130,10 €
6+128,96 €
*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



Dimensions

Height32 mm
Width32 mm
Depth83 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 90 °C
Degree of protectionIP68

General

Housing materialBrass (CuZn)
Colornickel
Mounting typeConnection-specific intermediate plugging
TypeAttachment plug
Number of positions1
Direction of actionLine-Shield/Earth Ground

Protective circuit

IEC test classificationC2
C3
D1
VDE requirement classC2
C3
D1
Nominal current IN5 A (25 °C)
Nominal discharge current In (8/20) µs (Core-Earth)20 kA
Nominal discharge current In (8/20) µs (Core-Shield)20 kA
Total surge current (8/20) µs30 kA
Total surge current (10/350) µs15 kA
Max. discharge current Imax (8/20) µs maximum (Core-Earth)30 kA
Max. discharge current Imax (8/20) µs maximum (Core-Shield)30 kA
Impulse discharge current (10/350)˽µs, peak value limp≤ 15 kA
Output voltage limitation at 1 kV/µs (Core-Earth) spike≤ 55 V (6 kV/3 kA)
Output voltage limitation at 1 kV/µs (Core-Shield) spike≤ 55 V (6 kV/3 kA)
Output voltage limitation at 1 kV/µs (Core-Earth) static≤ 55 V (6 kV/3 kA)
Output voltage limitation at 1 kV/µs (Core-Shield) static≤ 55 V (6 kV/3 kA)
Voltage protection level Up (core-ground)≤ 95 V (C2 - 10 kV / 5 kA)
Voltage protection level Up (core-shield)≤ 95 V (C2 - 10 kV / 5 kA)
Input attenuation aE, asym.typ. 0.05 dB (≤ 0.10 dB)
Frequency range380 MHz ... 470 MHz
Standing wave ratio SWR in a 50 Ω systemtyp. 1.05 (≤ 1,15)
Permissible HF power Pmax at VSWR = xx (50 ohm system)≤ 800 W
≤ 4 kW (peak)
Impulse durability (conductor-ground)C2 - 10 kV/5 kA
D1 - 2,5 kA
Impulse durability (conductor-shield)C2 - 10 kV/5 kA
D1 - 2.5 kA

Connection data

Connection methodN Connector
Connection type INN connector, female
Connection type OUTN connector, female

Standards and Regulations

Standards/regulationsIEC 61643-21
