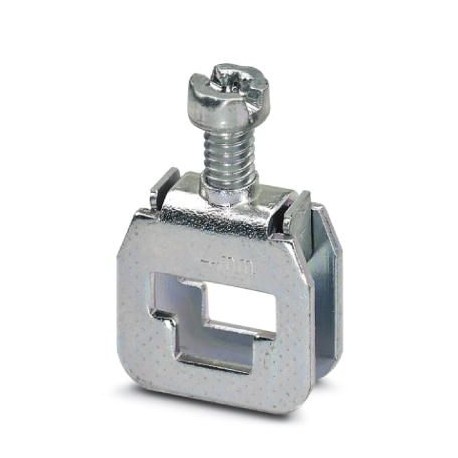

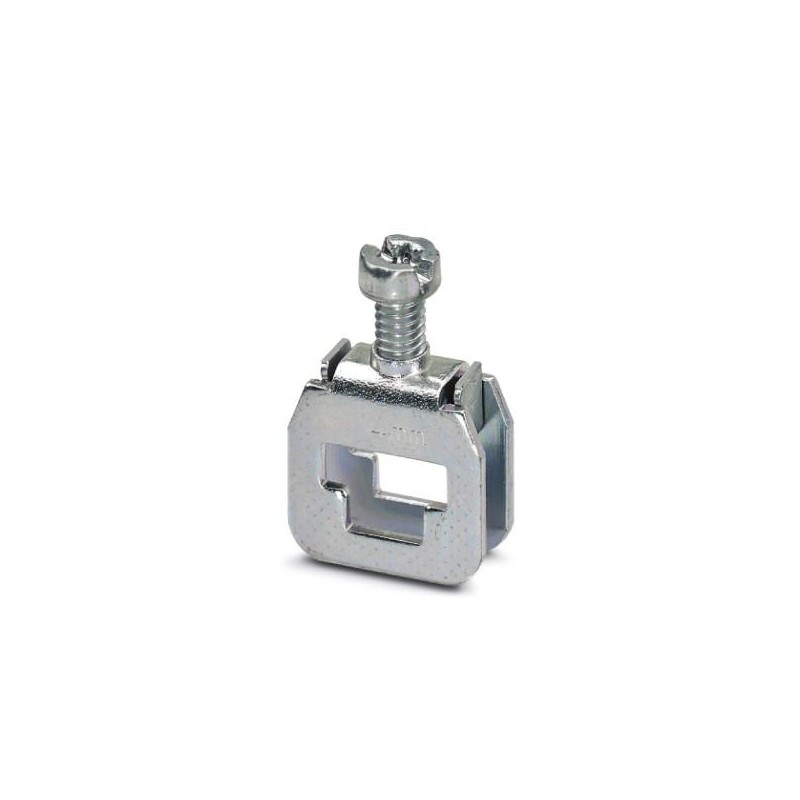

AK 4 MIT SIX LOBE SCHRAUBE 0711409 PHOENIX CONTACT Connection terminal block
AK 4 MIT SIX LOBE SCHRAUBE
0711409
PHOENIX_CONTACT
50
Connection terminal block
Low-voltage industrial components > Busbar terminal
CABINET add-on
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 0711409 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| GTIN | 4017918320621 |
| Weight per Piece (excluding packing) | 4.910 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Color | silver |
|---|---|
| Nominal cross section | 4 mm² |
| Flammability rating according to UL 94 | V2 |
| Maximum load current | 41 A (with 6 mm² conductor cross section) |
| Nominal current IN | 32 A |
| Maximum load current | 41 A (with 6 mm² conductor cross section) |
Connection data
| Conductor cross section solid min. | 0.5 mm² |
|---|---|
| Conductor cross section solid max. | 6 mm² |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 10 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 6 mm² |
| 2 conductors with same cross section, solid min. | 0.5 mm² |
| 2 conductors with same cross section, solid max. | 2.5 mm² |
| 2 conductors with same cross section, stranded min. | 0.5 mm² |
| 2 conductors with same cross section, stranded max. | 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 0.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 2.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 2.5 mm² |
| Connection method | Screw connection |
| Stripping length | 16 mm |
| Screw thread | M4 |
| Tightening torque, min | 1.5 Nm |
| Tightening torque max | 1.8 Nm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0 27141131 eCl@ss 4.1 27141131 eCl@ss 5.0 27141131 eCl@ss 5.1 27141100 eCl@ss 6.0 27141100 eCl@ss 7.0 27141120 eCl@ss 8.0 27141120 eCl@ss 9.0 27141146
UNSPSC 6.01 30211811 UNSPSC 7.0901 39121410 UNSPSC 11 39121410 UNSPSC 12.01 39121410 UNSPSC 13.2 39121410
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX MARKING SYSTEMS TOOLS EN.pdf | 41 Mbytes |
|
