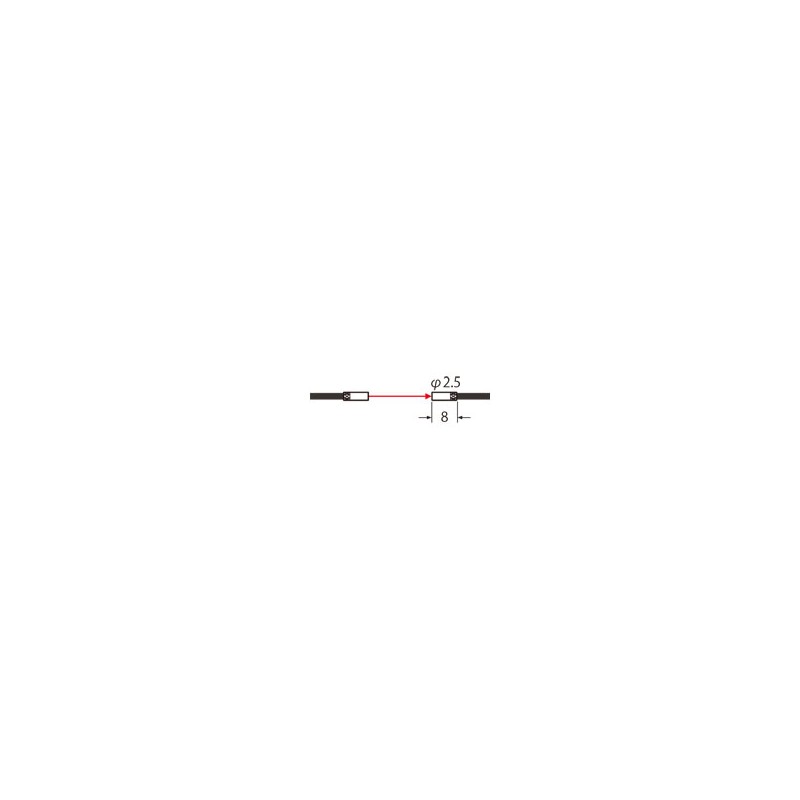

UFTS32 FT-S32 PANASONIC Fiber (thru-beam, cylindrical, ø 2.5mm, bending radius R10, 2m, IP40)
UFTS32
FT-S32
PANASONIC
Fiber (thru-beam, cylindrical, ø 2.5mm, bending radius R10, 2m, IP40)
Fiber optic barrier, cylindrical, ø 2.5mm, bend radius R10, 2m, IP40
FT-S32_Thru-beam type Fiber_Cylindrical Type Fiber_Cylindrical Type Fiber
Fiber - PANASONIC > CYLINDRICAL type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-S32 |
| Part Number | FT-S32 |
| Product | Thru-beam type Fiber |
| Details | Cylindrical Type Fiber |
| Product name | Cylindrical Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-S32 |
| Part Number | FT-S32 |
| Sensing mode | Thru-beam type |
| Fiber type | Cylindrical type |
| Fiber head dia. | dia. 2.5 mm |
| Fiber head length | 8 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 2 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R10 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 3,100 mm 122.047 in (FX-500 series) |
| Sensing range（HYPR） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（U-LG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（LONG） | 3,600 mm 141.732 in (FX-500 series) |
| Sensing range（FAST） | 1,800 mm 70.866 in (FX-500 series) |
| Sensing range（H-SP） | 600 mm 23.622 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FTS32 - FT-S32 | 4 Mbytes |
|
| Download general catalog |
|
