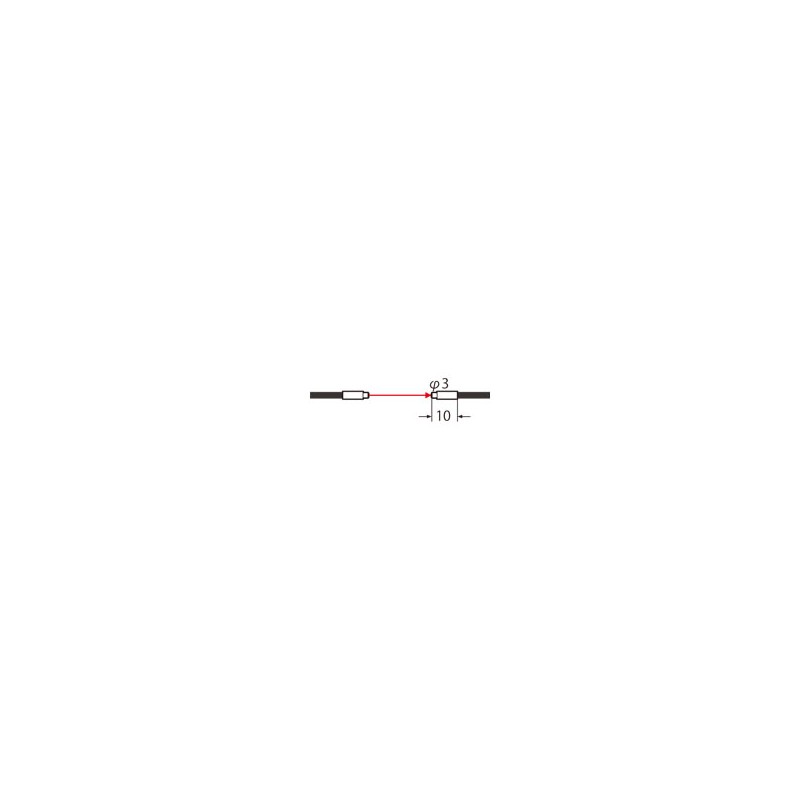

UFTS31W FT-S31W PANASONIC Fiber (thru-beam, cylindrical, ø 3mm, bending radius R1, 2m, IP67)
UFTS31W
FT-S31W
FT-S31W
PANASONIC
Fiber (thru-beam, cylindrical, ø 3mm, bending radius R1, 2m, IP67)
Fiber optic barrier, cylindrical, ø 3mm, bend radius R1, 2m, IP67
FT-S31W_Thru-beam type Fiber_Cylindrical Type Fiber_Cylindrical Type Fiber
Fiber - PANASONIC > CYLINDRICAL type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-S31W |
| Part Number | FT-S31W |
| Product | Thru-beam type Fiber |
| Details | Cylindrical Type Fiber |
| Product name | Cylindrical Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-S31W |
| Part Number | FT-S31W |
| Sensing mode | Thru-beam type |
| Fiber type | Cylindrical type |
| Fiber head dia. | dia. 3 mm |
| Fiber head length | 10 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 1 mm |
| Beam axis accuracy : Beam axis position | 150 micro m |
| Beam axis accuracy : Beam axis Inclination | plus or minus 3 degrees |
| Fiber cable length | 2 m |
| Allowable bending radius | R1 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 800 mm 31.496 in (FX-500 series) |
| Sensing range（HYPR） | 3,300 mm 129.921 in (FX-500 series) |
| Sensing range（U-LG） | 1,900 mm 74.803 in (FX-500 series) |
| Sensing range（LONG） | 1,400 mm 55.118 in (FX-500 series) |
| Sensing range（FAST） | 490 mm 19.291 in (FX-500 series) |
| Sensing range（H-SP） | 160 mm 6.299 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FTS31W - FT-S31W | FT-S31W | 4 Mbytes |
|
