UFTV30 FT-V30 PANASONIC Fiber (thru-beam, cylindrical, ø 2.5mm, side-view, bending radius R4, 2m, IP30)
UFTV30
FT-V30
FT-V30
PANASONIC
Fiber (thru-beam, cylindrical, ø 2.5mm, side-view, bending radius R4, 2m, IP30)
Fiber Optic Flexible Barrier, Cylindrical, ø 2.5mm, Side Sensing, Bend Radius R4, 2m, IP30
FT-V30_Thru-beam type Fiber_Sleeve Fiber_Sleeve type Fiber
Fiber - PANASONIC > TUBE type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-V30 |
| Part Number | FT-V30 |
| Product | Thru-beam type Fiber |
| Details | Sleeve type Fiber |
| Product name | Sleeve Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-V30 |
| Part Number | FT-V30 |
| Sensing mode | Thru-beam type |
| Fiber type | Sleeve type |

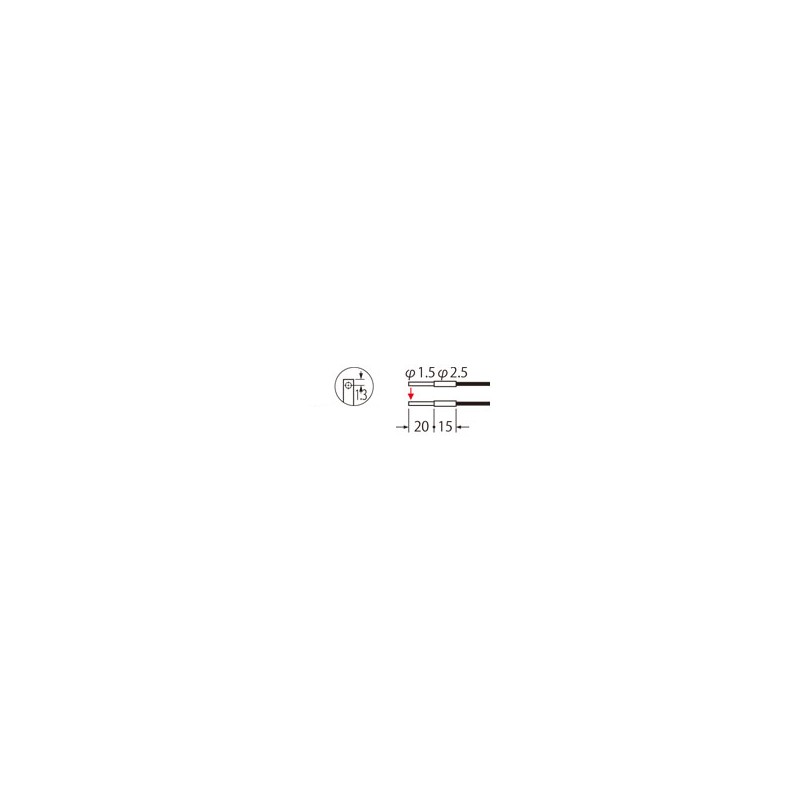

| Fiber head dia. | dia. 2.5 mm |
| Fiber head length | 15 mm |
| With sleeve | Yes |
| Sleeve dia. | dia. 1.5 mm |
| Sleeve length | 20 mm |
| Beam direction | Side-view |
| Beam axis dia./ Spot diameter | dia. 1.0 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R4 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP30 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 680 mm 26.772 in (FX-500 series) |
| Sensing range（HYPR） | 2,200 mm 86.614 in (FX-500 series) |
| Sensing range（U-LG） | 1,200 mm 47.244 in (FX-500 series) |
| Sensing range（LONG） | 1,000 mm 39.370 in (FX-500 series) |
| Sensing range（FAST） | 340 mm 13.386 in (FX-500 series) |
| Sensing range（H-SP） | 100 mm 3.937 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FTV30 - FT-V30 | FT-V30 | 4 Mbytes |
|
| Download general catalog |
|
