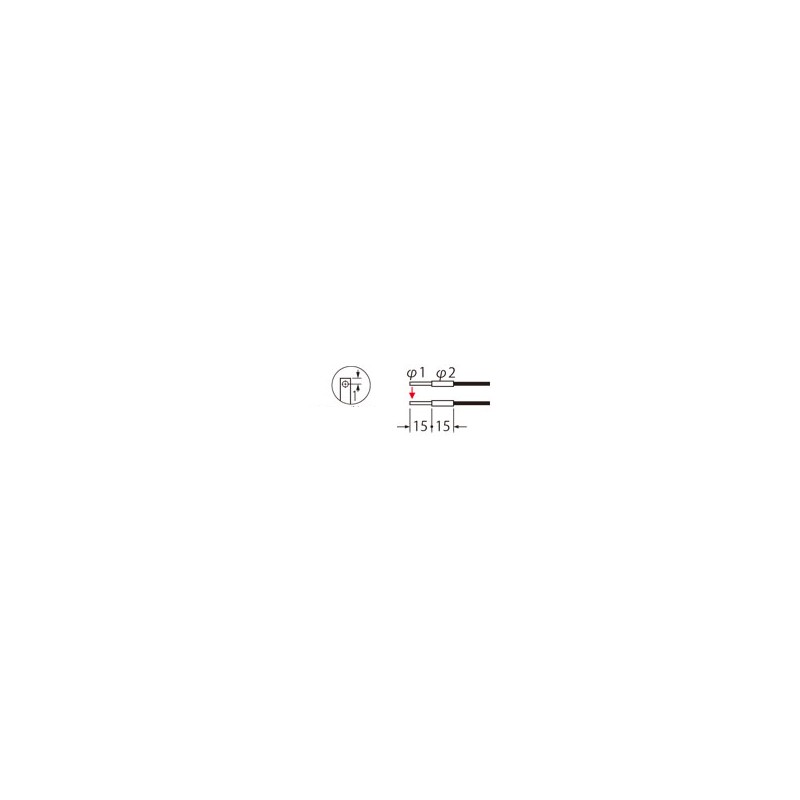

UFTV25 FT-V25 PANASONIC Fiber (thru-beam, cylindrical, ø 2mm, side-view, bending radius R2, 2m, IP30)
UFTV25
FT-V25
FT-V25
PANASONIC
Fiber (thru-beam, cylindrical, ø 2mm, side-view, bending radius R2, 2m, IP30)
Fiber optic Flexible barrier, cylindrical, ø 2mm, side sensing, bend radius R2, 2m, IP30
FT-V25_Thru-beam type Fiber_Sleeve Fiber_Sleeve type Fiber
Fiber - PANASONIC > TUBE type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-V25 |
| Part Number | FT-V25 |
| Product | Thru-beam type Fiber |
| Details | Sleeve type Fiber |
| Product name | Sleeve Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-V25 |
| Part Number | FT-V25 |
| Sensing mode | Thru-beam type |
| Fiber type | Sleeve type |
| Fiber head dia. | dia. 2 mm |
| Fiber head length | 15 mm |
| With sleeve | Yes |
| Sleeve dia. | dia. 1 mm |
| Sleeve length | 15 mm |
| Beam direction | Side-view |
| Beam axis dia./ Spot diameter | dia. 0.5 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R2 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP30 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 240 mm 9.449 in (FX-500 series) |
| Sensing range（HYPR） | 900 mm 35.433 in (FX-500 series) |
| Sensing range（U-LG） | 550 mm 21.654 in (FX-500 series) |
| Sensing range（LONG） | 480 mm 18.898 in (FX-500 series) |
| Sensing range（FAST） | 140 mm 5.512 in (FX-500 series) |
| Sensing range（H-SP） | 45 mm 1.772 in (FX-500 series) |
